GDynamicEngine Class Reference

CGraph的核心引擎，提供DAG类型分析、拓扑分析、动态图运行、全并发执行、全串行执行等能力 More...

#include <GDynamicEngine.h>

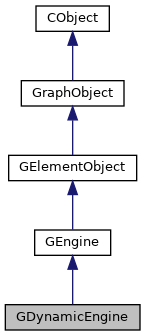

Inheritance diagram for GDynamicEngine:

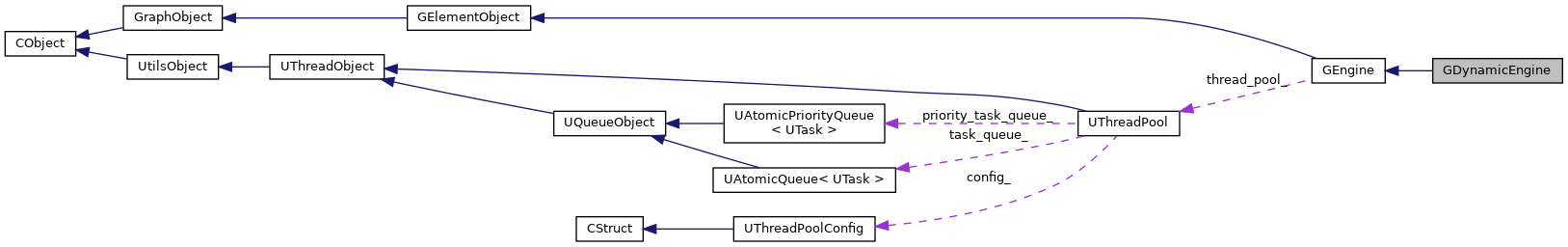

Collaboration diagram for GDynamicEngine:

Protected Member Functions
	GDynamicEngine ()=default
CStatus	setup (const GSortedGElementPtrSet &elements) override
CStatus	run () override
CVoid	mark (const GSortedGElementPtrSet &elements)
CVoid	analysisDagType (const GSortedGElementPtrSet &elements)
CVoid	commonRunAll ()
CVoid	process (GElementPtr element, CBool affinity)
CVoid	afterElementRun (GElementPtr element)
CVoid	fatWait ()
CVoid	parallelRunAll ()
CVoid	serialRunAll ()
Protected Member Functions inherited from GEngine
	GEngine ()=default
CVoid	link (const GSortedGElementPtrSet &elements)

Private Attributes
GElementPtrArr	total_element_arr_
GElementPtrArr	front_element_arr_
CSize	total_end_size_ = 0
CSize	finished_end_size_ = 0
CStatus	cur_status_
internal::GEngineDagType	dag_type_ = { internal::GEngineDagType::COMMON }
std::mutex	lock_
std::condition_variable	cv_
std::mutex	status_lock_

Friends
class	CAllocator

Additional Inherited Members
Public Member Functions inherited from CObject
	CObject ()=default
virtual CStatus	init ()
virtual CStatus	destroy ()
virtual	~CObject ()=default
Static Protected Member Functions inherited from GEngine
static GElementPtrArr	getTopo (const GSortedGElementPtrSet &elements)
static CBool	isDag (const GSortedGElementPtrSet &elements)
Protected Attributes inherited from GEngine
UThreadPoolPtr	thread_pool_ { nullptr }
CSize	linked_size_ = 0

Detailed Description

CGraph的核心引擎，提供DAG类型分析、拓扑分析、动态图运行、全并发执行、全串行执行等能力

Constructor & Destructor Documentation

GDynamicEngine()

GDynamicEngine::GDynamicEngine ( )

explicitprotecteddefault

Member Function Documentation

afterElementRun()

CVoid GDynamicEngine::afterElementRun ( GElementPtr  element )

protected

element 运行完成处理

Parameters

element

Returns

满足一下条件之一，则通知wait函数停止等待 1，无后缀节点全部执行完毕(在运行正常的情况下，只有无后缀节点执行完成的时候，才可能整体运行结束) 2，有节点执行状态异常

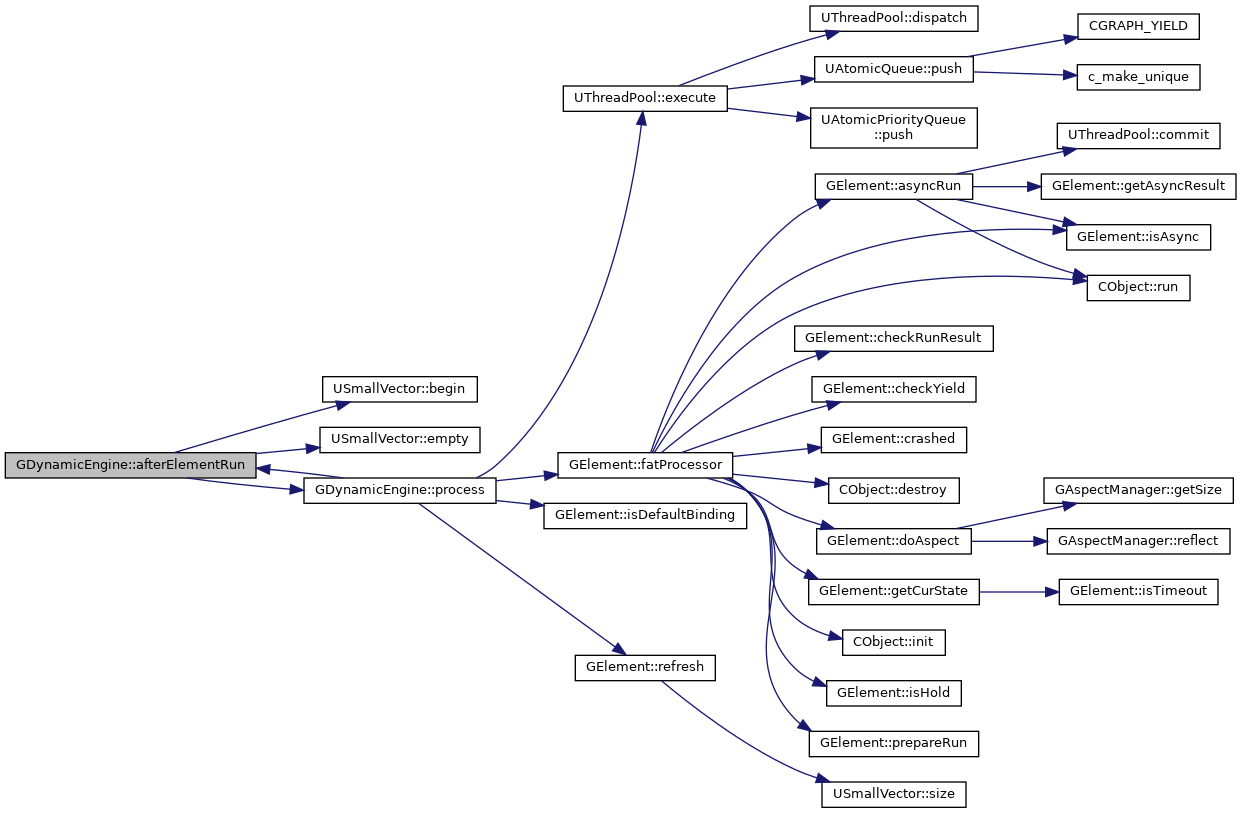

Here is the call graph for this function:

analysisDagType()

CVoid GDynamicEngine::analysisDagType ( const GSortedGElementPtrSet &  elements )

protected

分析当前的信息，主要用于区分dag的类型

Returns

如果所有的信息中，只有一个是非linkable。则说明只有最后的那个是的，且只有一个开头 故，这里将其认定为一条 lineal 的情况 ps: 只有一个或者没有 element的情况，也会被算到 ALL_SERIAL 中去

commonRunAll()

CVoid GDynamicEngine::commonRunAll ( )

protected

动态图运行

Parameters

1. 执行没有任何依赖的element
2. 在element执行完成之后，进行裂变，直到所有的element执行完成
3. 等待异步执行结束

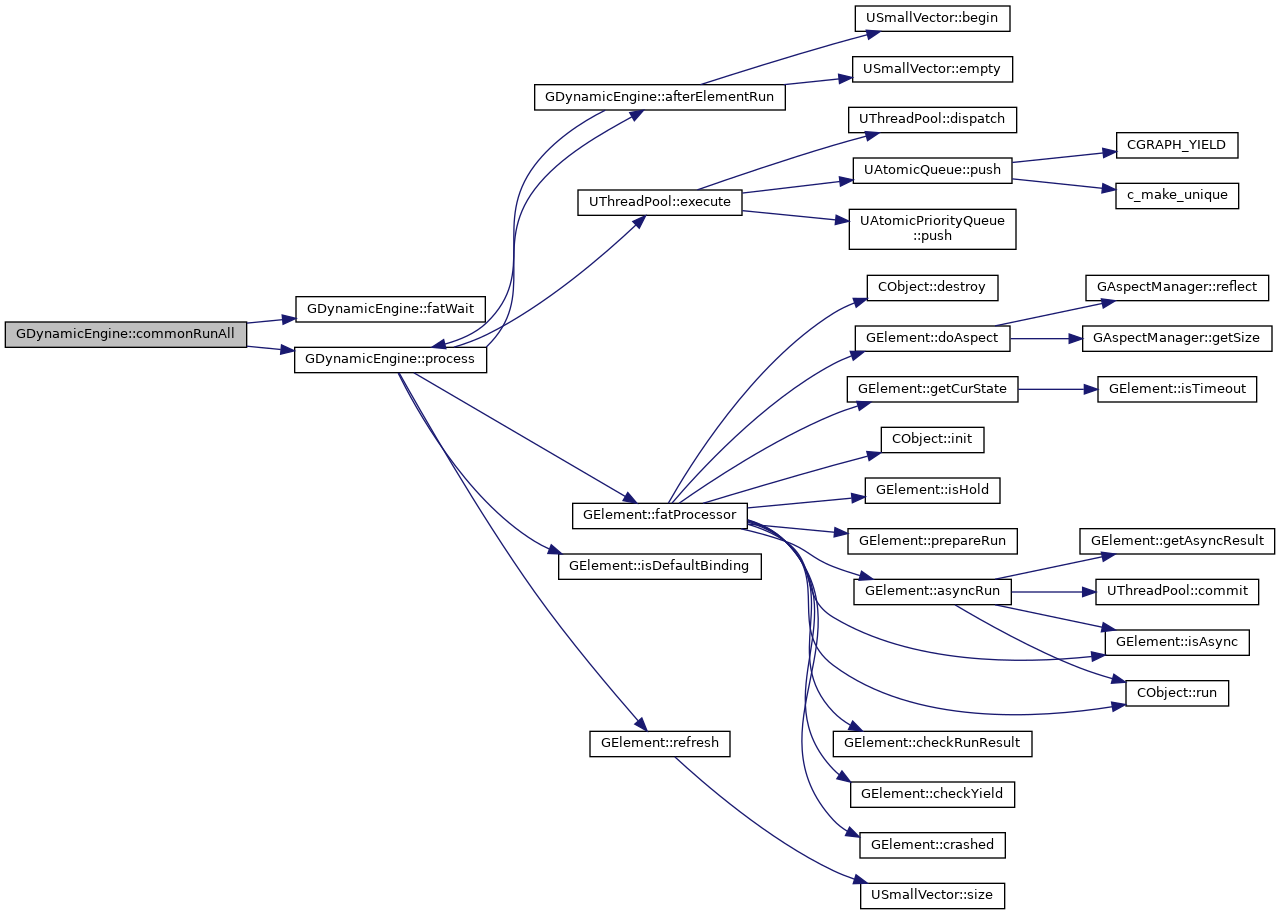

Here is the call graph for this function:

fatWait()

CVoid GDynamicEngine::fatWait ( )

protected

动态图运行等待

Parameters

遇到以下条件之一，结束执行： 1，执行结束 2，状态异常

mark()

CVoid GDynamicEngine::mark ( const GSortedGElementPtrSet &  elements )

protected

记录当前 elements 数据信息

Parameters

elements

Returns

parallelRunAll()

CVoid GDynamicEngine::parallelRunAll ( )

protected

并发的执行所有的element

Returns

主要适用于dag是纯并发逻辑的情况 直接并发的执行所有的流程，从而减少调度损耗 实测效果，在32路纯并行的情况下，整体耗时从 21.5s降低到 12.5s 非纯并行逻辑，不走此函数

Here is the call graph for this function:

process()

CVoid GDynamicEngine::process ( GElementPtr  element, CBool  affinity  )

protected

element 运行element

Parameters

element
affinity	是否本地执行

Returns

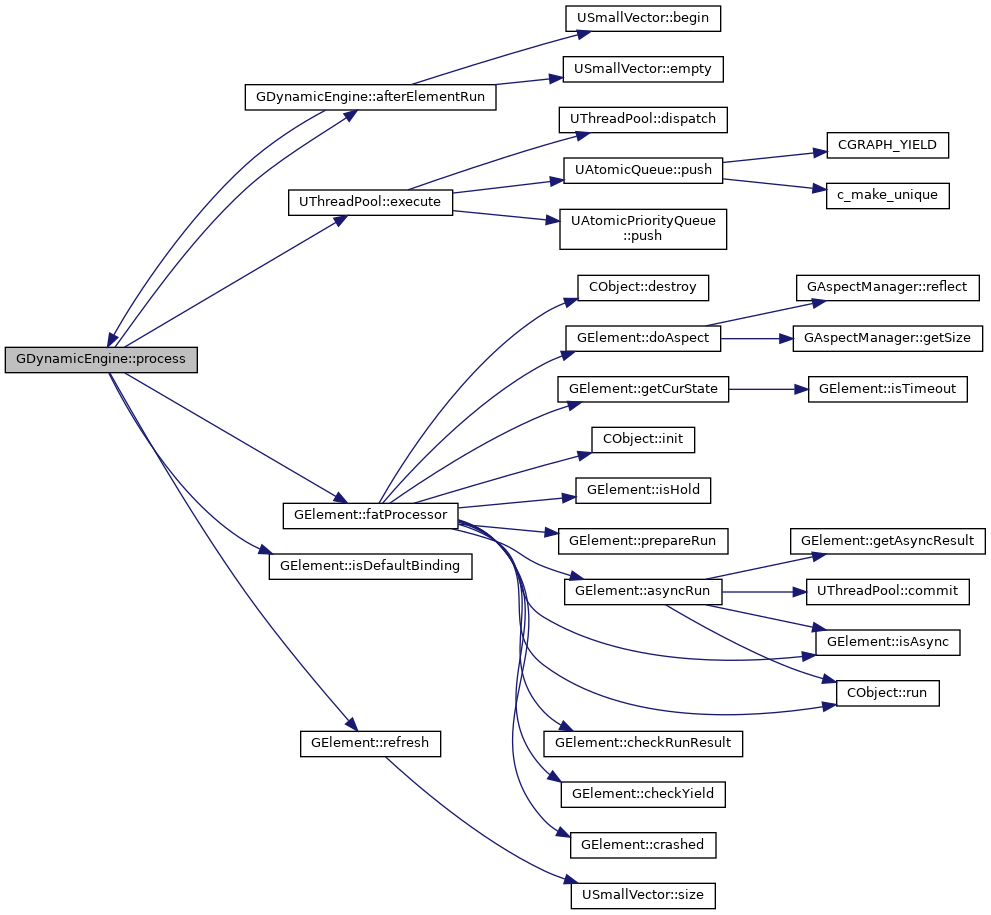

Here is the call graph for this function:

run()

CStatus GDynamicEngine::run ( )

overrideprotectedvirtual

流程处理函数

Implements CObject.

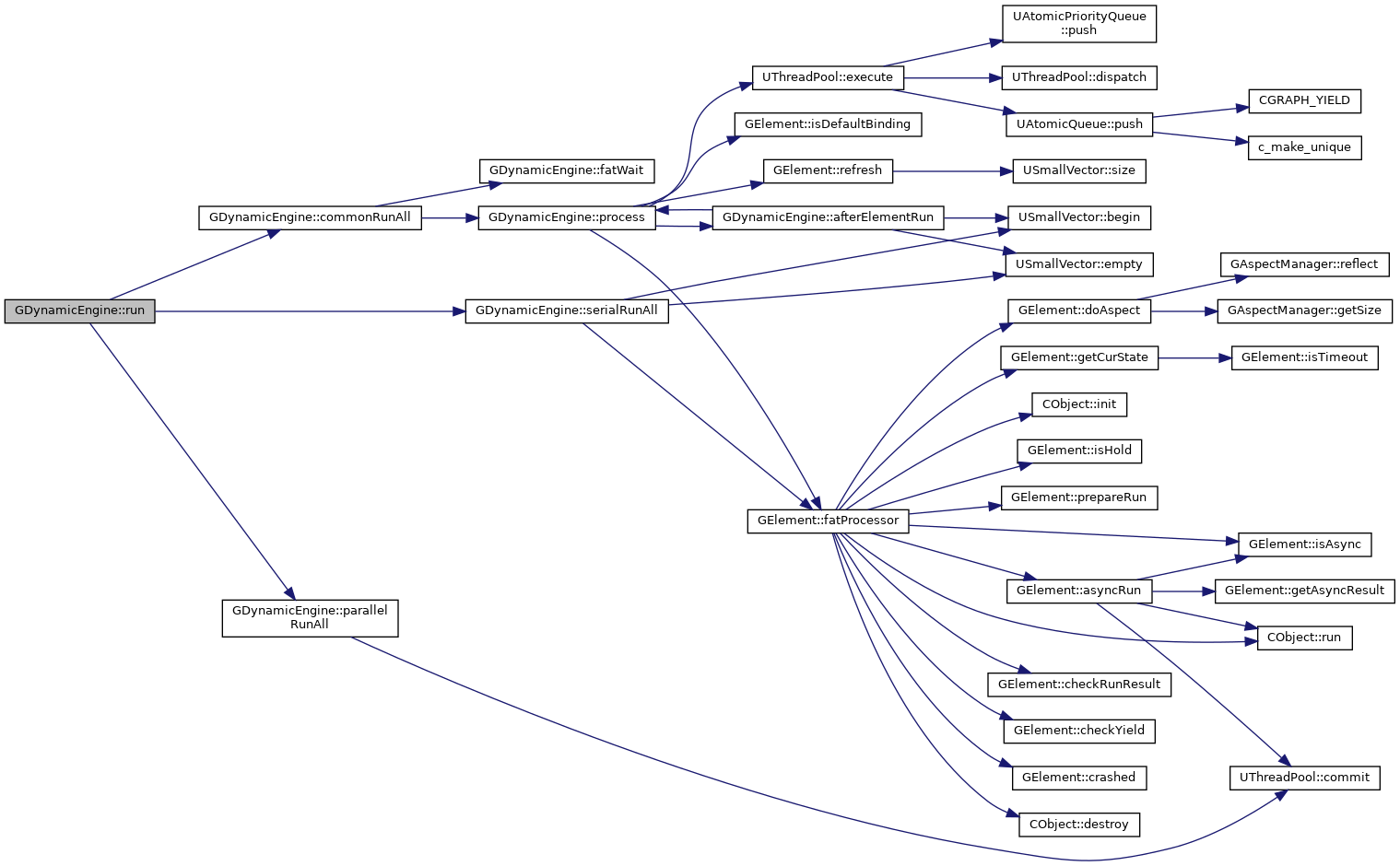

Here is the call graph for this function:

serialRunAll()

CVoid GDynamicEngine::serialRunAll ( )

protected

串行的执行所有element

Returns

如果分析出来 dag是一个链式的，则直接依次执行element 直到所有element都执行完成，或者有出现错误的返回值

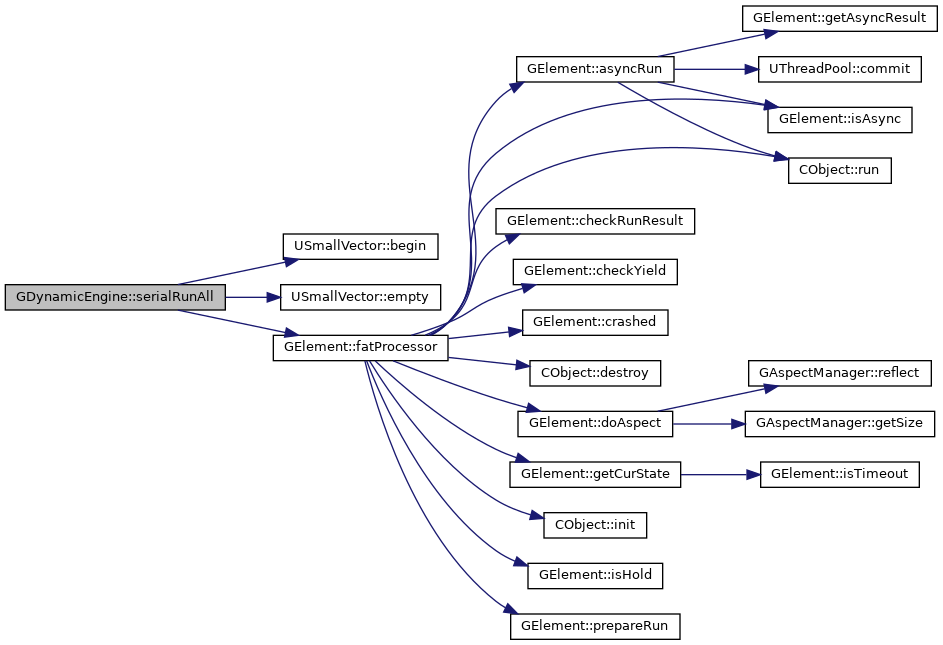

Here is the call graph for this function:

setup()

CGRAPH_NAMESPACE_BEGIN CStatus GDynamicEngine::setup ( const GSortedGElementPtrSet &  elements )

overrideprotectedvirtual

将所有注册进入 pipeline的内容，进行分析和解构

Parameters

elements

Returns

1. 判断是否是 dag 结构
2. 标记数据，比如有多少个结束element等
3. 标记哪些数据，是linkable 的
4. 分析当前dag类型信息

Implements GEngine.

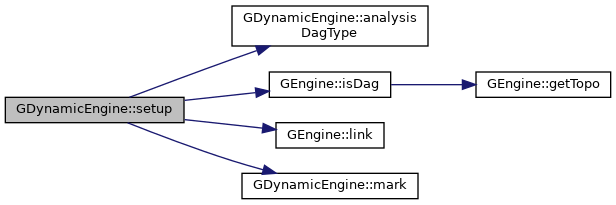

Here is the call graph for this function:

Friends And Related Function Documentation

CAllocator

friend class CAllocator

friend

Member Data Documentation

cur_status_

CStatus GDynamicEngine::cur_status_

private

cv_

std::condition_variable GDynamicEngine::cv_

private

dag_type_

internal::GEngineDagType GDynamicEngine::dag_type_ = { internal::GEngineDagType::COMMON }

private

finished_end_size_

CSize GDynamicEngine::finished_end_size_ = 0

private

front_element_arr_

GElementPtrArr GDynamicEngine::front_element_arr_

private

lock_

std::mutex GDynamicEngine::lock_

private

status_lock_

std::mutex GDynamicEngine::status_lock_

private

total_element_arr_

GElementPtrArr GDynamicEngine::total_element_arr_

private

total_end_size_

CSize GDynamicEngine::total_end_size_ = 0

private

---

The documentation for this class was generated from the following files:

• src/GraphCtrl/GraphElement/_GEngine/GDynamicEngine/GDynamicEngine.h
• src/GraphCtrl/GraphElement/_GEngine/GDynamicEngine/GDynamicEngine.cpp
