GMaxParaOptimizer Class Reference

#include <GMaxParaOptimizer.h>

Inheritance diagram for GMaxParaOptimizer:

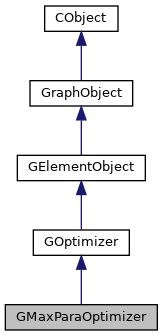

Collaboration diagram for GMaxParaOptimizer:

Static Protected Member Functions
static CBool	match (const GSortedGElementPtrSet &elements)
static CSize	getMaxParaSize (const GSortedGElementPtrSet &elements)
static CSize	calcMaxCliqueSize (const std::vector< std::vector< int >> &graph)
Static Protected Member Functions inherited from GOptimizer
static CVoid	collect (GElementPtr element, std::vector< GElementPtr > &curPath, std::vector< std::vector< GElementPtr >> &paths)
static std::vector< std::vector< GElementPtr > >	collectPaths (const GSortedGElementPtrSet &elements)
static std::vector< std::vector< int > >	buildGraph (const GSortedGElementPtrSet &elements, const std::vector< std::vector< GElementPtr >> &paths, int father, int son, int unlink)

Friends
class	GElementManager

Additional Inherited Members
Public Member Functions inherited from CObject
	CObject ()=default
virtual CStatus	init ()
virtual CStatus	run ()=0
virtual CStatus	destroy ()
virtual	~CObject ()=default

Member Function Documentation

calcMaxCliqueSize()

static CSize GMaxParaOptimizer::calcMaxCliqueSize ( const std::vector< std::vector< int >> &  graph )

inlinestaticprotected

计算当前最大团的大小

Parameters

graph

Returns

getMaxParaSize()

static CSize GMaxParaOptimizer::getMaxParaSize ( const GSortedGElementPtrSet &  elements )

inlinestaticprotected

计算当前dag的最大并发度

Parameters

elements

Returns

计算思路如下：

1. 列出来所有的可行路径(paths)
2. 根据路径，生成一张全连通图，然后将图取反，得到对应的补图(reGraph)
3. 计算补图的最大团中元素个数(maxCliqueSize)，即为当前dag的最大并行度

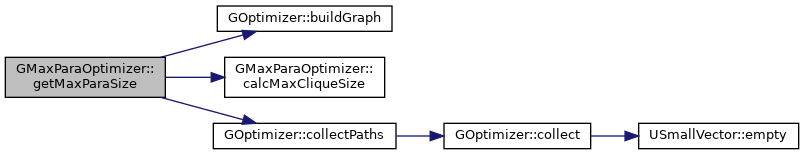

Here is the call graph for this function:

match()

static CBool GMaxParaOptimizer::match ( const GSortedGElementPtrSet &  elements )

inlinestaticprotected

判定是否match计算条件

Parameters

elements

Returns

Friends And Related Function Documentation

GElementManager

friend class GElementManager

friend

---

The documentation for this class was generated from the following file:

• src/GraphCtrl/GraphElement/_GOptimizer/GMaxParaOptimizer.h
