GParam Class Reference

#include <GParam.h>

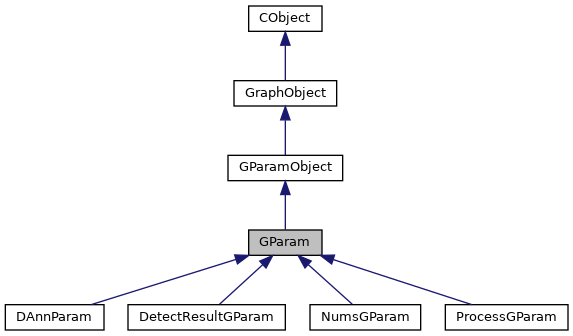

Inheritance diagram for GParam:

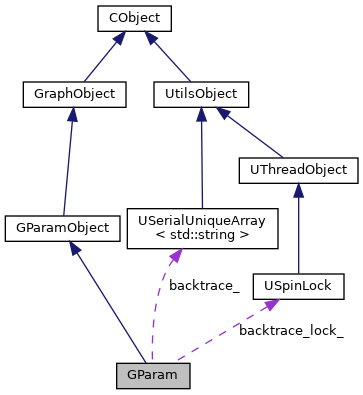

Collaboration diagram for GParam:

Public Member Functions
std::vector< std::string >	getBacktrace ()
CStatus	addBacktrace (const std::string &trace)
CVoid	cleanBacktrace ()
std::string	getKey () const
Public Member Functions inherited from CObject
	CObject ()=default
virtual CStatus	init ()
virtual CStatus	destroy ()
virtual	~CObject ()=default

Public Attributes
std::recursive_mutex	_param_shared_lock_

Protected Member Functions
virtual CStatus	setup ()
virtual CVoid	reset (const CStatus &curStatus)
Protected Member Functions inherited from GParamObject
CStatus	run () final

Private Attributes
CBool	backtrace_enable_ = false
std::string	key_
USerialUniqueArray< std::string >	backtrace_
USpinLock	backtrace_lock_

Friends
class	GParamManager

Member Function Documentation

addBacktrace()

CStatus GParam::addBacktrace

(

const std::string &

trace

)

添加trace信息

Parameters

trace

Returns

Here is the call graph for this function:

cleanBacktrace()

CVoid GParam::cleanBacktrace

(

)

清空trace信息

Returns

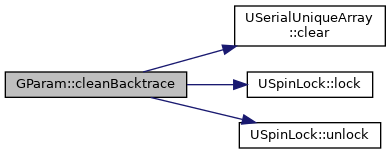

Here is the call graph for this function:

getBacktrace()

CGRAPH_NAMESPACE_BEGIN std::vector< std::string > GParam::getBacktrace

(

)

获取参数的调用栈信息

Returns

Here is the call graph for this function:

getKey()

std::string GParam::getKey

(

)

const

获取key信息

Returns

reset()

CVoid GParam::reset ( const CStatus &  curStatus )

protectedvirtual

每次pipeline执行结束，会调用一次reset

Parameters

curStatus

本次pipeline执行的状态

Returns

@notice 为丰富功能和简化操作，v2.4.0 版本中添加了curStatus作为入参，且取消纯虚函数设定。

setup()

CStatus GParam::setup ( )

protectedvirtual

每次pipeline执行前，会调用一次setup，可以不实现

Returns

Friends And Related Function Documentation

GParamManager

friend class GParamManager

friend

Member Data Documentation

_param_shared_lock_

std::recursive_mutex GParam::_param_shared_lock_

backtrace_

USerialUniqueArray<std::string> GParam::backtrace_

private

backtrace_enable_

CBool GParam::backtrace_enable_ = false

private

backtrace_lock_

USpinLock GParam::backtrace_lock_

private

key_

std::string GParam::key_

private

---

The documentation for this class was generated from the following files:

• src/GraphCtrl/GraphParam/GParam.h
• src/GraphCtrl/GraphParam/GParam.cpp
