GTrimOptimizer Class Reference

#include <GTrimOptimizer.h>

Inheritance diagram for GTrimOptimizer:

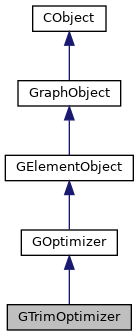

Collaboration diagram for GTrimOptimizer:

Static Private Member Functions
static CSize	trim (GSortedGElementPtrSet &elements)

Friends
class	GElementManager
class	GRegion

Additional Inherited Members
Public Member Functions inherited from CObject
	CObject ()=default
virtual CStatus	init ()
virtual CStatus	run ()=0
virtual CStatus	destroy ()
virtual	~CObject ()=default
Static Protected Member Functions inherited from GOptimizer
static CVoid	collect (GElementPtr element, std::vector< GElementPtr > &curPath, std::vector< std::vector< GElementPtr >> &paths)
static std::vector< std::vector< GElementPtr > >	collectPaths (const GSortedGElementPtrSet &elements)
static std::vector< std::vector< int > >	buildGraph (const GSortedGElementPtrSet &elements, const std::vector< std::vector< GElementPtr >> &paths, int father, int son, int unlink)

Member Function Documentation

trim()

static CSize GTrimOptimizer::trim ( GSortedGElementPtrSet &  elements )

inlinestaticprivate

针对图结构，做剪裁；具体算法为： (1) collectPaths：以入度为0的结点开始，通过递归，收集整个elements集合中的路径paths (2) buildGraph：对paths进行分析，构建一个[s, s]的矩阵graph，s为elements所有元素的个数，其中 graph[x][y]表示elements中index为x的元素是否可以达到index为y的元素 (3) 剪枝: 遍历elements，如果发现elements的前序结点x/y存在可达关系x->y，类似于x -> y 那么可以把x->cur的依赖关系删除 ↘ ↙ cur (4) 如果elements存在某个元素是REGION，那么继续调用REGION自己的trim (本质上就是上述算法) (5) 记录总共被剪枝的元素个数

Parameters

elements

Returns

Here is the call graph for this function:

Friends And Related Function Documentation

GElementManager

friend class GElementManager

friend

GRegion

friend class GRegion

friend

---

The documentation for this class was generated from the following file:

• src/GraphCtrl/GraphElement/_GOptimizer/GTrimOptimizer.h
