GMessage< T, capacity, > Class Template Reference

基于UAtomicRingBufferQueue队列实现，支持send/recv More...

#include <GMessage.h>

Inheritance diagram for GMessage< T, capacity, >:

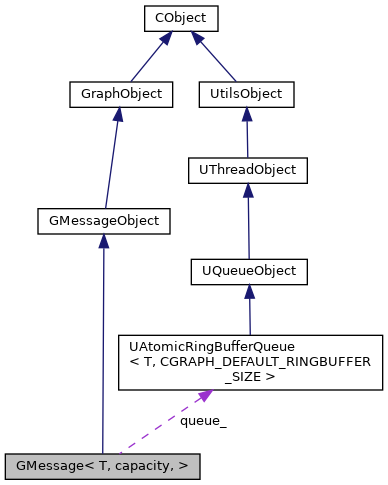

Collaboration diagram for GMessage< T, capacity, >:

Public Member Functions
	GMessage (CUInt size=capacity)
	~GMessage () override
template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CVoid	send (const TImpl &value, GMessagePushStrategy strategy)
template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CVoid	send (std::unique_ptr< TImpl > &value, GMessagePushStrategy strategy)
template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	recv (TImpl &value, CMSec timeout)
template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	recv (std::unique_ptr< TImpl > &value, CMSec timeout)
CUInt	getCapacity () const
Public Member Functions inherited from GMessageObject
CStatus	run () final
Public Member Functions inherited from CObject
	CObject ()=default
virtual CStatus	init ()
virtual CStatus	destroy ()
virtual	~CObject ()=default

Private Attributes
UAtomicRingBufferQueue< T, capacity >	queue_

Detailed Description

template<typename T, CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>
class GMessage< T, capacity, >

基于UAtomicRingBufferQueue队列实现，支持send/recv

Template Parameters

T
capacity

Constructor & Destructor Documentation

GMessage()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

GMessage< T, capacity, >::GMessage ( CUInt  size = capacity )

inlineexplicit

~GMessage()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

GMessage< T, capacity, >::~GMessage ( )

inlineoverride

析构函数。释放前，要先释放队列中所有的信息

Member Function Documentation

getCapacity()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

CUInt GMessage< T, capacity, >::getCapacity ( ) const

inline

获取容量大小

Returns

recv() [1/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessage< T, capacity, >::recv ( std::unique_ptr< TImpl > &  value, CMSec  timeout  )

inline

通过智能指针的方式传递

Template Parameters

TImpl

Parameters

value
timeout

Returns

recv() [2/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessage< T, capacity, >::recv ( TImpl &  value, CMSec  timeout  )

inline

获取参数

Parameters

value
timeout

Returns

send() [1/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CVoid GMessage< T, capacity, >::send ( const TImpl &  value, GMessagePushStrategy  strategy  )

inline

写入参数

Template Parameters

TImpl

Parameters

value
strategy

Returns

send() [2/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<class TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CVoid GMessage< T, capacity, >::send ( std::unique_ptr< TImpl > &  value, GMessagePushStrategy  strategy  )

inline

写入智能指针类型的参数

Template Parameters

TImpl

Parameters

value
strategy

Returns

Member Data Documentation

queue_

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

UAtomicRingBufferQueue<T, capacity> GMessage< T, capacity, >::queue_

private

---

The documentation for this class was generated from the following file:

• src/GraphCtrl/GraphMessage/GMessage.h
