UAtomicRingBufferQueue< T, capacity > Class Template Reference

包含一个基于std::vector的环形队列，基于mutex_实现原子的waitPopWithTimeout/push head_/tail_初始化为0，tail_及tail_之后一直到head_之前的位置记为空 举例：head_为0、tail_为3、capaci_为64的情况下，[3,63]范围内的位置都记为空 More...

#include <UAtomicRingBufferQueue.h>

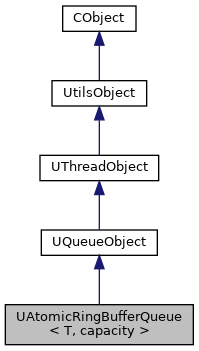

Inheritance diagram for UAtomicRingBufferQueue< T, capacity >:

Collaboration diagram for UAtomicRingBufferQueue< T, capacity >:

Public Member Functions
	UAtomicRingBufferQueue ()
	~UAtomicRingBufferQueue () override
UAtomicRingBufferQueue *	setCapacity (CUInt size)
CUInt	getCapacity () const
template<class TImpl = T>
CVoid	push (const TImpl &value, URingBufferPushStrategy strategy)
template<class TImpl = T>
CVoid	push (std::unique_ptr< TImpl > &value, URingBufferPushStrategy strategy)
template<class TImpl = T>
CStatus	waitPopWithTimeout (TImpl &value, CMSec timeout)
template<class TImpl = T>
CStatus	waitPopWithTimeout (std::unique_ptr< TImpl > &value, CMSec timeout)
CStatus	clear ()
Public Member Functions inherited from CObject
	CObject ()=default
virtual CStatus	init ()
virtual CStatus	destroy ()
virtual	~CObject ()=default

Protected Member Functions
CBool	isFull ()
CBool	isEmpty ()
Protected Member Functions inherited from UThreadObject
CStatus	run () override
Protected Member Functions inherited from UtilsObject
CStatus	run () override

Private Attributes
CUInt	head_
CUInt	tail_
CUInt	capacity_
std::condition_variable	push_cv_
std::condition_variable	pop_cv_
std::vector< std::unique_ptr< T > >	ring_buffer_queue_

Additional Inherited Members
Protected Attributes inherited from UQueueObject
std::mutex	mutex_
std::condition_variable	cv_

Detailed Description

template<typename T, CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>
class UAtomicRingBufferQueue< T, capacity >

包含一个基于std::vector的环形队列，基于mutex_实现原子的waitPopWithTimeout/push head_/tail_初始化为0，tail_及tail_之后一直到head_之前的位置记为空 举例：head_为0、tail_为3、capaci_为64的情况下，[3,63]范围内的位置都记为空

Template Parameters

T
capacity

Constructor & Destructor Documentation

UAtomicRingBufferQueue()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

UAtomicRingBufferQueue< T, capacity >::UAtomicRingBufferQueue ( )

inlineexplicit

~UAtomicRingBufferQueue()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

UAtomicRingBufferQueue< T, capacity >::~UAtomicRingBufferQueue ( )

inlineoverride

Here is the call graph for this function:

Member Function Documentation

clear()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

CStatus UAtomicRingBufferQueue< T, capacity >::clear ( )

inline

清空所有的数据

Returns

getCapacity()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

CUInt UAtomicRingBufferQueue< T, capacity >::getCapacity ( ) const

inline

获取容量信息

Returns

isEmpty()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

CBool UAtomicRingBufferQueue< T, capacity >::isEmpty ( )

inlineprotected

当前队列是否为空

Returns

isFull()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

CBool UAtomicRingBufferQueue< T, capacity >::isFull ( )

inlineprotected

当前队列是否为满

Returns

push() [1/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

template<class TImpl = T>

CVoid UAtomicRingBufferQueue< T, capacity >::push ( const TImpl &  value, URingBufferPushStrategy  strategy  )

inline

写入信息

Template Parameters

TImpl

Parameters

value
strategy

Returns

Here is the call graph for this function:

push() [2/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

template<class TImpl = T>

CVoid UAtomicRingBufferQueue< T, capacity >::push ( std::unique_ptr< TImpl > &  value, URingBufferPushStrategy  strategy  )

inline

写入智能指针类型的信息

Template Parameters

TImpl

Parameters

value
strategy

Returns

Here is the call graph for this function:

setCapacity()

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

UAtomicRingBufferQueue* UAtomicRingBufferQueue< T, capacity >::setCapacity ( CUInt  size )

inline

设置容量信息

Parameters

size

Returns

@notice 谨慎使用，push信息之后，不推荐使用

waitPopWithTimeout() [1/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

template<class TImpl = T>

CStatus UAtomicRingBufferQueue< T, capacity >::waitPopWithTimeout ( std::unique_ptr< TImpl > &  value, CMSec  timeout  )

inline

等待弹出信息。ps：当入参为智能指针的情况

Template Parameters

TImpl

Parameters

value
timeout

Returns

当传入的内容，是智能指针的时候， 这里就直接通过 move转移过去好了，跟直接传值的方式，保持区别

Here is the call graph for this function:

waitPopWithTimeout() [2/2]

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

template<class TImpl = T>

CStatus UAtomicRingBufferQueue< T, capacity >::waitPopWithTimeout ( TImpl &  value, CMSec  timeout  )

inline

等待弹出信息

Parameters

value
timeout

Returns

Here is the call graph for this function:

Member Data Documentation

capacity_

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

CUInt UAtomicRingBufferQueue< T, capacity >::capacity_

private

head_

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

CUInt UAtomicRingBufferQueue< T, capacity >::head_

private

pop_cv_

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

std::condition_variable UAtomicRingBufferQueue< T, capacity >::pop_cv_

private

push_cv_

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

std::condition_variable UAtomicRingBufferQueue< T, capacity >::push_cv_

private

ring_buffer_queue_

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

std::vector<std::unique_ptr<T> > UAtomicRingBufferQueue< T, capacity >::ring_buffer_queue_

private

tail_

template<typename T , CUInt capacity = CGRAPH_DEFAULT_RINGBUFFER_SIZE>

CUInt UAtomicRingBufferQueue< T, capacity >::tail_

private

---

The documentation for this class was generated from the following file:

• src/UtilsCtrl/ThreadPool/Queue/UAtomicRingBufferQueue.h
