GMessageManager< T, > Class Template Reference

基于topic，支持send/recv(一发一收)，也支持pub/sub(一发多收) sub端每次订阅特定的topic之前都要先bindTopic生成一个唯一的conn_id_，实际上是绑定到这个conn_id_对应的GMessageObject的消息队列 recv是一发一收则可以直接用topic作为入参 More...

#include <GMessageManager.h>

Inheritance diagram for GMessageManager< T, >:

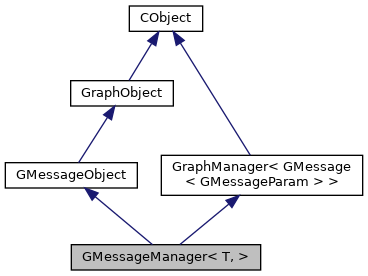

Collaboration diagram for GMessageManager< T, >:

Public Member Functions
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	createTopic (const std::string &topic, CUInt size)
CStatus	removeTopic (const std::string &topic)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	recvTopicValue (const std::string &topic, TImpl &value, CMSec timeout=CGRAPH_MAX_BLOCK_TTL)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	recvTopicValue (const std::string &topic, std::unique_ptr< TImpl > &value, CMSec timeout=CGRAPH_MAX_BLOCK_TTL)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	sendTopicValue (const std::string &topic, const TImpl &value, GMessagePushStrategy strategy)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	sendTopicValue (const std::string &topic, std::unique_ptr< TImpl > &value, GMessagePushStrategy strategy)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CIndex	bindTopic (const std::string &topic, CUInt size)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	pubTopicValue (const std::string &topic, const TImpl &value, GMessagePushStrategy strategy)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	subTopicValue (CIndex connId, TImpl &value, CMSec timeout=CGRAPH_MAX_BLOCK_TTL)
template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>
CStatus	subTopicValue (CIndex connId, std::unique_ptr< TImpl > &value, CMSec timeout=CGRAPH_MAX_BLOCK_TTL)
CStatus	dropTopic (const std::string &topic)
CStatus	clear () final
Public Member Functions inherited from GMessageObject
CStatus	run () final
Public Member Functions inherited from CObject
	CObject ()=default
virtual	~CObject ()=default

Protected Member Functions
CStatus	init () final
CStatus	destroy () final
	~GMessageManager () override
Protected Member Functions inherited from GraphManager< GMessage< GMessageParam > >
virtual CStatus	add (GMessage< GMessageParam > *object)
virtual CStatus	remove (GMessage< GMessageParam > *object)
virtual CBool	find (GMessage< GMessageParam > *object) const
virtual CStatus	create (const std::string &key)
virtual GMessage< GMessageParam > *	get (const std::string &key)
virtual CStatus	reset ()
virtual CSize	getSize () const
CStatus	run () override

Private Attributes
std::unordered_map< std::string, GMessagePtr< T > >	send_recv_message_map_
std::unordered_map< std::string, std::set< GMessagePtr< T > > >	pub_sub_message_map_
std::unordered_map< CIndex, GMessagePtr< T > >	conn_message_map_
CIndex	cur_conn_id_ = 0
std::mutex	pub_sub_mutex_
std::mutex	send_recv_mutex_

Friends
template<typename U , USingletonType , CBool >
class	USingleton

Detailed Description

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>
class GMessageManager< T, >

基于topic，支持send/recv(一发一收)，也支持pub/sub(一发多收) sub端每次订阅特定的topic之前都要先bindTopic生成一个唯一的conn_id_，实际上是绑定到这个conn_id_对应的GMessageObject的消息队列 recv是一发一收则可以直接用topic作为入参

Template Parameters

T

Constructor & Destructor Documentation

~GMessageManager()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

GMessageManager< T, >::~GMessageManager ( )

inlineoverrideprotected

Here is the call graph for this function:

Member Function Documentation

bindTopic()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CIndex GMessageManager< T, >::bindTopic ( const std::string &  topic, CUInt  size  )

inline

绑定对应的topic信息，并且获取 conn_id 信息

Template Parameters

TImpl

Parameters

topic
size

Returns

clear()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

CStatus GMessageManager< T, >::clear ( )

inlinefinalvirtual

清空数据

Returns

Implements GraphManager< GMessage< GMessageParam > >.

createTopic()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::createTopic ( const std::string &  topic, CUInt  size  )

inline

创建 topic

Template Parameters

TImpl

Parameters

topic
size

Returns

destroy()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

CStatus GMessageManager< T, >::destroy ( )

inlinefinalprotectedvirtual

释放函数

Reimplemented from CObject.

dropTopic()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

CStatus GMessageManager< T, >::dropTopic ( const std::string &  topic )

inline

删除对应的topic信息

Parameters

topic

Returns

init()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

CStatus GMessageManager< T, >::init ( )

inlinefinalprotectedvirtual

初始化函数

仅可能被 USingleton 类调用，自动构造时候使用 防止菱形引用的奇异

Reimplemented from CObject.

pubTopicValue()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::pubTopicValue ( const std::string &  topic, const TImpl &  value, GMessagePushStrategy  strategy  )

inline

开始发送对应topic的信息

Template Parameters

TImpl

Parameters

topic
value
strategy

Returns

recvTopicValue() [1/2]

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::recvTopicValue ( const std::string &  topic, std::unique_ptr< TImpl > &  value, CMSec  timeout = CGRAPH_MAX_BLOCK_TTL  )

inline

根据传入的topic，获得信息。仅针对传入智能指针的情况

Template Parameters

TImpl

Parameters

topic
value
timeout

Returns

@notice 这里的逻辑，跟上面的函数一致。里面调用了底层RingBuffer的同名不同入参的接口。 本人暂时没有能力完成接口的统一。如果有了解这一块内容的朋友，欢迎交流指正。

recvTopicValue() [2/2]

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::recvTopicValue ( const std::string &  topic, TImpl &  value, CMSec  timeout = CGRAPH_MAX_BLOCK_TTL  )

inline

根据传入的topic，获得信息

Template Parameters

TImpl

Parameters

topic
value
timeout

Returns

removeTopic()

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

CStatus GMessageManager< T, >::removeTopic ( const std::string &  topic )

inline

删除 topic

Parameters

topic

Returns

sendTopicValue() [1/2]

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::sendTopicValue ( const std::string &  topic, const TImpl &  value, GMessagePushStrategy  strategy  )

inline

根据传入的topic，输入信息

Template Parameters

TImpl

Parameters

topic
value
strategy

Returns

sendTopicValue() [2/2]

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::sendTopicValue ( const std::string &  topic, std::unique_ptr< TImpl > &  value, GMessagePushStrategy  strategy  )

inline

根据传入的topic，输入智能指针类型的信息

Template Parameters

TImpl

Parameters

topic
value
strategy

Returns

subTopicValue() [1/2]

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::subTopicValue ( CIndex  connId, std::unique_ptr< TImpl > &  value, CMSec  timeout = CGRAPH_MAX_BLOCK_TTL  )

inline

根据传入的 connId信息，来获取对应的message信息。仅针对传入智能指针的情况

Template Parameters

TImpl

Parameters

connId
value
timeout

Returns

subTopicValue() [2/2]

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename TImpl , c_enable_if_t< std::is_base_of< T, TImpl >::value, int > = 0>

CStatus GMessageManager< T, >::subTopicValue ( CIndex  connId, TImpl &  value, CMSec  timeout = CGRAPH_MAX_BLOCK_TTL  )

inline

根据传入的 connId信息，来获取对应的message信息

Template Parameters

TImpl

Parameters

connId
value
timeout

Returns

Friends And Related Function Documentation

USingleton

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

template<typename U , USingletonType , CBool >

friend class USingleton

friend

Member Data Documentation

conn_message_map_

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

std::unordered_map<CIndex, GMessagePtr<T> > GMessageManager< T, >::conn_message_map_

private

cur_conn_id_

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

CIndex GMessageManager< T, >::cur_conn_id_ = 0

private

pub_sub_message_map_

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

std::unordered_map<std::string, std::set<GMessagePtr<T> > > GMessageManager< T, >::pub_sub_message_map_

private

pub_sub_mutex_

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

std::mutex GMessageManager< T, >::pub_sub_mutex_

private

send_recv_message_map_

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

std::unordered_map<std::string, GMessagePtr<T> > GMessageManager< T, >::send_recv_message_map_

private

send_recv_mutex_

template<typename T = GMessageParam, c_enable_if_t< std::is_base_of< GMessageParam, T >::value, int > = 0>

std::mutex GMessageManager< T, >::send_recv_mutex_

private

---

The documentation for this class was generated from the following file:

• src/GraphCtrl/GraphMessage/GMessageManager.h
