GEventManager Class Reference

#include <GEventManager.h>

Inheritance diagram for GEventManager:

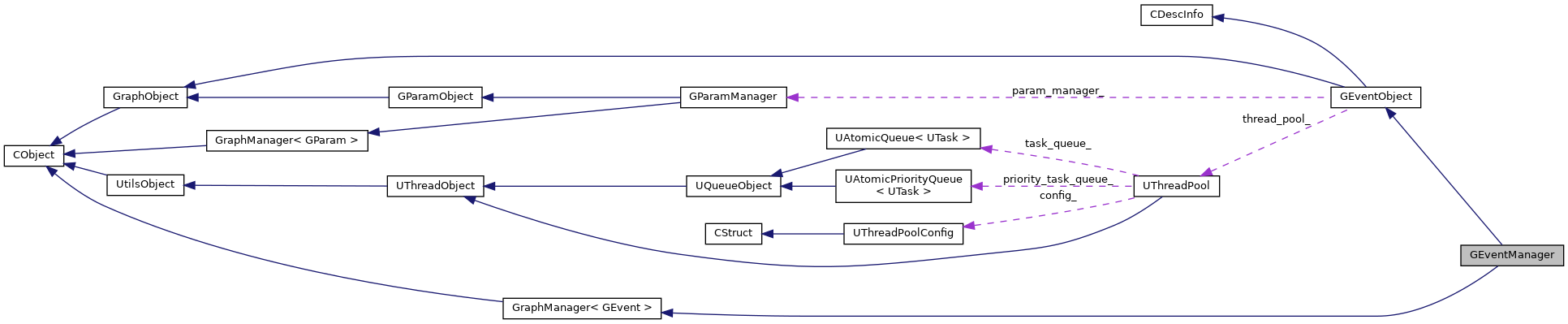

Collaboration diagram for GEventManager:

Public Member Functions
template<typename TEvent , typename TEParam = GEventDefaultParam, c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > = 0, c_enable_if_t< std::is_base_of< GEventParam, TEParam >::value, int > = 0>
CStatus	createWithParam (const std::string &key, TEParam *param=nullptr)
CStatus	trigger (const std::string &key, GEventType type, GEventAsyncStrategy strategy)
std::shared_future< CVoid >	asyncTrigger (const std::string &key, GEventAsyncStrategy strategy)
template<typename TEvent , typename TEParam , c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > , c_enable_if_t< std::is_base_of< GEventParam, TEParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN CStatus	createWithParam (const std::string &key, TEParam *param)
Public Member Functions inherited from CObject
	CObject ()=default
virtual	~CObject ()=default
Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const
const std::string &	getSession () const
const std::string &	getDescription () const
virtual auto	setName (const std::string &name) -> decltype(this)
virtual auto	setDescription (const std::string &description) -> decltype(this)
virtual	~CDescInfo ()=default

Protected Member Functions
CStatus	init () final
CStatus	destroy () final
CStatus	clear () final
GEventObjectPtr	setThreadPool (UThreadPoolPtr ptr) final
	GEventManager ()=default
	~GEventManager () override
CStatus	reset () final
Protected Member Functions inherited from GEventObject
CStatus	run () final
Protected Member Functions inherited from GraphManager< GEvent >
virtual CStatus	add (GEvent *object)
virtual CStatus	remove (GEvent *object)
virtual CBool	find (GEvent *object) const
virtual CStatus	create (const std::string &key)
virtual GEvent *	get (const std::string &key)
virtual CSize	getSize () const
CStatus	run () override

Private Attributes
std::unordered_map< std::string, GEventPtr >	events_map_

Friends
class	CAllocator
class	GPipeline

Additional Inherited Members
Protected Attributes inherited from GEventObject
UThreadPoolPtr	thread_pool_ = nullptr
GParamManagerPtr	param_manager_ = nullptr
Protected Attributes inherited from CDescInfo
std::string	name_
std::string	session_
std::string	description_

Constructor & Destructor Documentation

GEventManager()

GEventManager::GEventManager ( )

explicitprotecteddefault

~GEventManager()

GEventManager::~GEventManager ( )

overrideprotected

Here is the call graph for this function:

Member Function Documentation

asyncTrigger()

std::shared_future< CVoid > GEventManager::asyncTrigger	(	const std::string &	key,
		GEventAsyncStrategy	strategy
	)

异步事件触发

Parameters

key
strategy

Returns

clear()

CStatus GEventManager::clear ( )

finalprotectedvirtual

清空所有object，必须实现的内容

Returns

Implements GraphManager< GEvent >.

createWithParam() [1/2]

template<typename TEvent , typename TEParam , c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > , c_enable_if_t< std::is_base_of< GEventParam, TEParam >::value, int > >

CGRAPH_NAMESPACE_BEGIN CStatus GEventManager::createWithParam	(	const std::string &	key,
		TEParam *	param
	)

createWithParam() [2/2]

template<typename TEvent , typename TEParam = GEventDefaultParam, c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > = 0, c_enable_if_t< std::is_base_of< GEventParam, TEParam >::value, int > = 0>

CStatus GEventManager::createWithParam	(	const std::string &	key,
		TEParam *	param = nullptr
	)

创建一个特定类型的事件，并且通过参数赋值

Template Parameters

TEvent
TEParam

Parameters

key
param

Returns

destroy()

CStatus GEventManager::destroy ( )

finalprotectedvirtual

释放函数

Reimplemented from CObject.

init()

CGRAPH_NAMESPACE_BEGIN CStatus GEventManager::init ( )

finalprotectedvirtual

初始化函数

Reimplemented from CObject.

reset()

CStatus GEventManager::reset ( )

finalprotectedvirtual

重置所有object

Returns

Reimplemented from GraphManager< GEvent >.

setThreadPool()

GEventObjectPtr GEventManager::setThreadPool ( UThreadPoolPtr  ptr )

finalprotectedvirtual

Reimplemented from GEventObject.

trigger()

CStatus GEventManager::trigger	(	const std::string &	key,
		GEventType	type,
		GEventAsyncStrategy	strategy
	)

触发事件

Parameters

key
type
strategy,仅当异步的时候生效

Returns

Friends And Related Function Documentation

CAllocator

friend class CAllocator

friend

GPipeline

friend class GPipeline

friend

Member Data Documentation

events_map_

std::unordered_map<std::string, GEventPtr> GEventManager::events_map_

private

---

The documentation for this class was generated from the following files:

• src/GraphCtrl/GraphEvent/GEventManager.h
• src/GraphCtrl/GraphEvent/GEventManager.cpp
• src/GraphCtrl/GraphEvent/GEventManager.inl
