#include <GPipeline.h>

Inheritance diagram for GPipeline:

[legend]

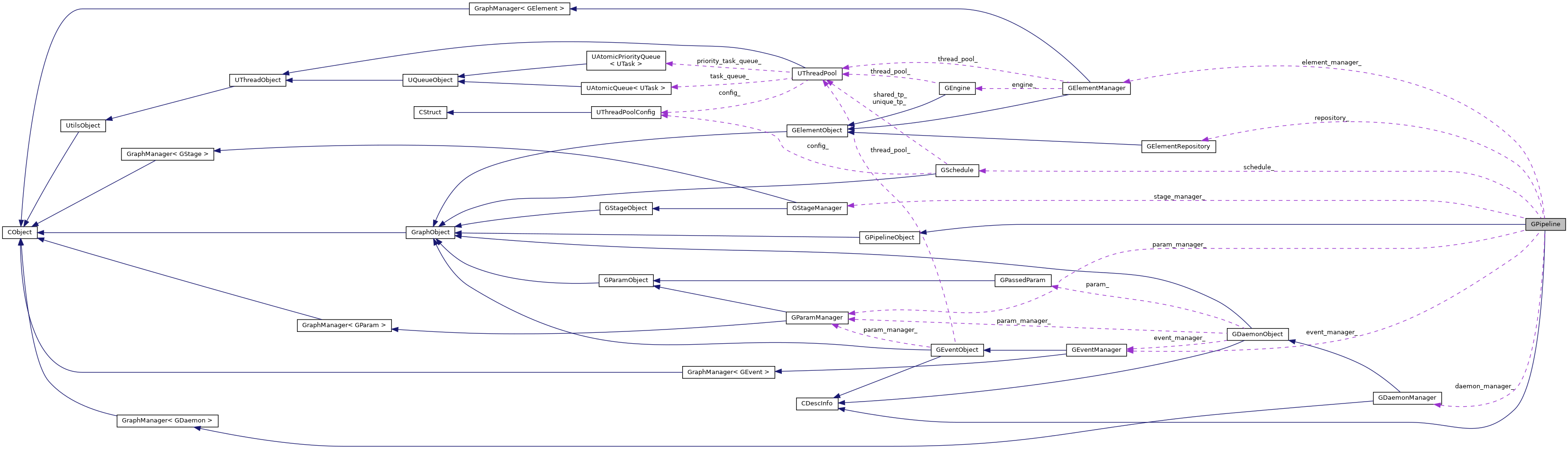

Collaboration diagram for GPipeline:

[legend]

Public Member Functions
CStatus	init () override

CStatus	run () override

CStatus	destroy () override

CStatus	process (CSize runTimes=CGRAPH_DEFAULT_LOOP_TIMES)

std::future< CStatus >	asyncRun (std::launch policy=std::launch::async)

std::future< CStatus >	asyncProcess (CSize runTimes=CGRAPH_DEFAULT_LOOP_TIMES, std::launch policy=std::launch::async)

CStatus	cancel ()

CStatus	yield ()

CStatus	resume ()

CStatus	dump (std::ostream &oss=std::cout)

CStatus	perf (std::ostream &oss=std::cout)

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GNode, TNode >::value, int > = 0>
TNode *	createGNode (const GNodeInfo &info, Args &&... args)

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GNode, TNode >::value, int > = 0>
TNode *	createGNode (const GElementPtrSet &dependence=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES, Args &&... args)

template<typename TGroup , c_enable_if_t< std::is_base_of< GGroup, TGroup >::value, int > = 0>
TGroup *	createGGroup (const GElementPtrArr &elements, const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

template<typename T , c_enable_if_t< std::is_base_of< GElement, T >::value, int > = 0>
CStatus	registerGElement (GElementPPtr elementRef, const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateNode< Args ... >, TNode >::value, int > = 0>
CStatus	registerGElement (GTemplateNodePtr< Args ... > *elementRef, const GElementPtrSet &depends, Args... args)

template<typename TNode , c_enable_if_t< std::is_base_of< GNode, TNode >::value, int > = 0>
TNode *	registerGNode (const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateNode< Args ... >, TNode >::value, int > = 0>
TNode *	registerGNode (const GElementPtrSet &depends, Args... args)

CStatus	registerGNode (GElementPPtr nodeRef, const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

CStatus	registerGGroup (GElementPPtr groupRef, const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

template<typename GFunction >
CStatus	registerGElement (GFunctionPPtr functionRef, const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

template<typename GFence >
CStatus	registerGElement (GFencePPtr fenceRef, const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

template<typename GCoordinator , CInt SIZE>
CStatus	registerGElement (GCoordinatorPPtr< SIZE > coordinatorRef, const GElementPtrSet &depends=std::initializer_list< GElementPtr >(), const std::string &name=CGRAPH_EMPTY, CSize loop=CGRAPH_DEFAULT_LOOP_TIMES)

template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>
GPipeline *	addGAspect (const GElementPtrSet &elements=std::initializer_list< GElementPtr >(), TParam *param=nullptr)

template<typename TDaemon , typename TParam = GDaemonDefaultParam, c_enable_if_t< std::is_base_of< GDaemon, TDaemon >::value, int > = 0, c_enable_if_t< std::is_base_of< GDaemonParam, TParam >::value, int > = 0>
GPipeline *	addGDaemon (CMSec ms, TParam *param=nullptr)

template<typename TDaemon , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateDaemon< Args... >, TDaemon >::value, int > = 0>
GPipeline *	addGDaemon (CMSec ms, Args &&... args)

template<typename TEvent , typename TParam = GEventDefaultParam, c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > = 0, c_enable_if_t< std::is_base_of< GEventParam, TParam >::value, int > = 0>
GPipeline *	addGEvent (const std::string &key, TParam *param=nullptr)

GPipeline *	addGStage (const std::string &key, CInt threshold)

GPipeline *	setGEngineType (GEngineType type)

GPipeline *	setUniqueThreadPoolConfig (const UThreadPoolConfig &config)

GPipeline *	setSharedThreadPool (UThreadPoolPtr ptr)

CSize	getMaxPara ()

CSize	trim ()

CStatus	makeSerial ()

GPipelineState	getCurState () const

CBool	checkSeparate (GElementPtr fst, GElementPtr snd) const

template<typename T , c_enable_if_t< std::is_base_of< GElement, T >::value, int > >
CGRAPH_NAMESPACE_BEGIN CStatus	registerGElement (GElementPPtr elementRef, const GElementPtrSet &depends, const std::string &name, CSize loop)

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >
GPipelinePtr	addGAspect (const GElementPtrSet &elements, TParam *param)

template<typename TDaemon , typename TParam , c_enable_if_t< std::is_base_of< GDaemon, TDaemon >::value, int > , c_enable_if_t< std::is_base_of< GDaemonParam, TParam >::value, int > >
GPipelinePtr	addGDaemon (CMSec ms, TParam *param)

template<typename TDaemon , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateDaemon< Args... >, TDaemon >::value, int > >
GPipelinePtr	addGDaemon (CMSec ms, Args &&... args)

template<typename TEvent , typename TParam , c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > , c_enable_if_t< std::is_base_of< GEventParam, TParam >::value, int > >
GPipelinePtr	addGEvent (const std::string &key, TParam *param)

Public Member Functions inherited from CObject
	CObject ()=default

virtual	~CObject ()=default

Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const

const std::string &	getSession () const

const std::string &	getDescription () const

virtual auto	setName (const std::string &name) -> decltype(this)

virtual auto	setDescription (const std::string &description) -> decltype(this)

virtual	~CDescInfo ()=default

Protected Member Functions
	GPipeline ()

	~GPipeline () override

Private Member Functions
CStatus	initEnv ()

CStatus	innerRegister (GElementPtr element, const GElementPtrSet &depends, const std::string &name, CSize loop)

Private Attributes
GElementManagerPtr	element_manager_ = nullptr

GParamManagerPtr	param_manager_ = nullptr

GDaemonManagerPtr	daemon_manager_ = nullptr

GEventManagerPtr	event_manager_ = nullptr

GStageManagerPtr	stage_manager_ = nullptr

GSchedule	schedule_

GElementRepository	repository_

Friends
class	GPipelineFactory

class	CAllocator

class	GPerf

Additional Inherited Members
Protected Attributes inherited from GPipelineObject
CBool	is_init_ = false

Protected Attributes inherited from CDescInfo
std::string	name_

std::string	session_

std::string	description_

Constructor & Destructor Documentation

◆ GPipeline()

CGRAPH_NAMESPACE_BEGIN GPipeline::GPipeline ( )

explicitprotected

注册GParam 交互类集合

Returns

Here is the call graph for this function:

◆ ~GPipeline()

GPipeline::~GPipeline ( )

overrideprotected

Member Function Documentation

◆ addGAspect() [1/2]

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >

GPipelinePtr GPipeline::addGAspect	(	const GElementPtrSet &	elements,
		TParam *	param
	)

Here is the call graph for this function:

◆ addGAspect() [2/2]

template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>

GPipeline* GPipeline::addGAspect	(	const GElementPtrSet &	elements = `std::initializer_list< GElementPtr >()`,
		TParam *	param = `nullptr`
	)

添加切面

Template Parameters

TAspect
TParam

Parameters

elements
param

Returns

◆ addGDaemon() [1/4]

template<typename TDaemon , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateDaemon< Args... >, TDaemon >::value, int > = 0>

GPipeline* GPipeline::addGDaemon	(	CMSec	ms,
		Args &&...	args
	)

添加模板类型守护

Template Parameters

TAspect
Args

Parameters

ms
args

Returns

◆ addGDaemon() [2/4]

template<typename TDaemon , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateDaemon< Args... >, TDaemon >::value, int > >

GPipelinePtr GPipeline::addGDaemon	(	CMSec	ms,
		Args &&...	args
	)

Here is the call graph for this function:

◆ addGDaemon() [3/4]

template<typename TDaemon , typename TParam , c_enable_if_t< std::is_base_of< GDaemon, TDaemon >::value, int > , c_enable_if_t< std::is_base_of< GDaemonParam, TParam >::value, int > >

GPipelinePtr GPipeline::addGDaemon	(	CMSec	ms,
		TParam *	param
	)

Here is the call graph for this function:

◆ addGDaemon() [4/4]

template<typename TDaemon , typename TParam = GDaemonDefaultParam, c_enable_if_t< std::is_base_of< GDaemon, TDaemon >::value, int > = 0, c_enable_if_t< std::is_base_of< GDaemonParam, TParam >::value, int > = 0>

GPipeline* GPipeline::addGDaemon	(	CMSec	ms,
		TParam *	param = `nullptr`
	)

添加守护

Template Parameters

TDaemon
TParam

Parameters

ms
param

Returns

◆ addGEvent() [1/2]

template<typename TEvent , typename TParam , c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > , c_enable_if_t< std::is_base_of< GEventParam, TParam >::value, int > >

GPipelinePtr GPipeline::addGEvent	(	const std::string &	key,
		TParam *	param
	)

Here is the call graph for this function:

◆ addGEvent() [2/2]

template<typename TEvent , typename TParam = GEventDefaultParam, c_enable_if_t< std::is_base_of< GEvent, TEvent >::value, int > = 0, c_enable_if_t< std::is_base_of< GEventParam, TParam >::value, int > = 0>

GPipeline* GPipeline::addGEvent	(	const std::string &	key,
		TParam *	param = `nullptr`
	)

添加一个事件

Template Parameters

TEvent
TParam

Parameters

key
param

Returns

◆ addGStage()

GPipelinePtr GPipeline::addGStage	(	const std::string &	key,
		CInt	threshold
	)

添加一个阶段

Parameters

key
threshold

Returns

Here is the call graph for this function:

◆ asyncProcess()

std::future< CStatus > GPipeline::asyncProcess	(	CSize	runTimes = `CGRAPH_DEFAULT_LOOP_TIMES`,
		std::launch	policy = `std::launch::async`
	)

异步执行pipeline的全部流程

Parameters

runTimes
policy

Returns

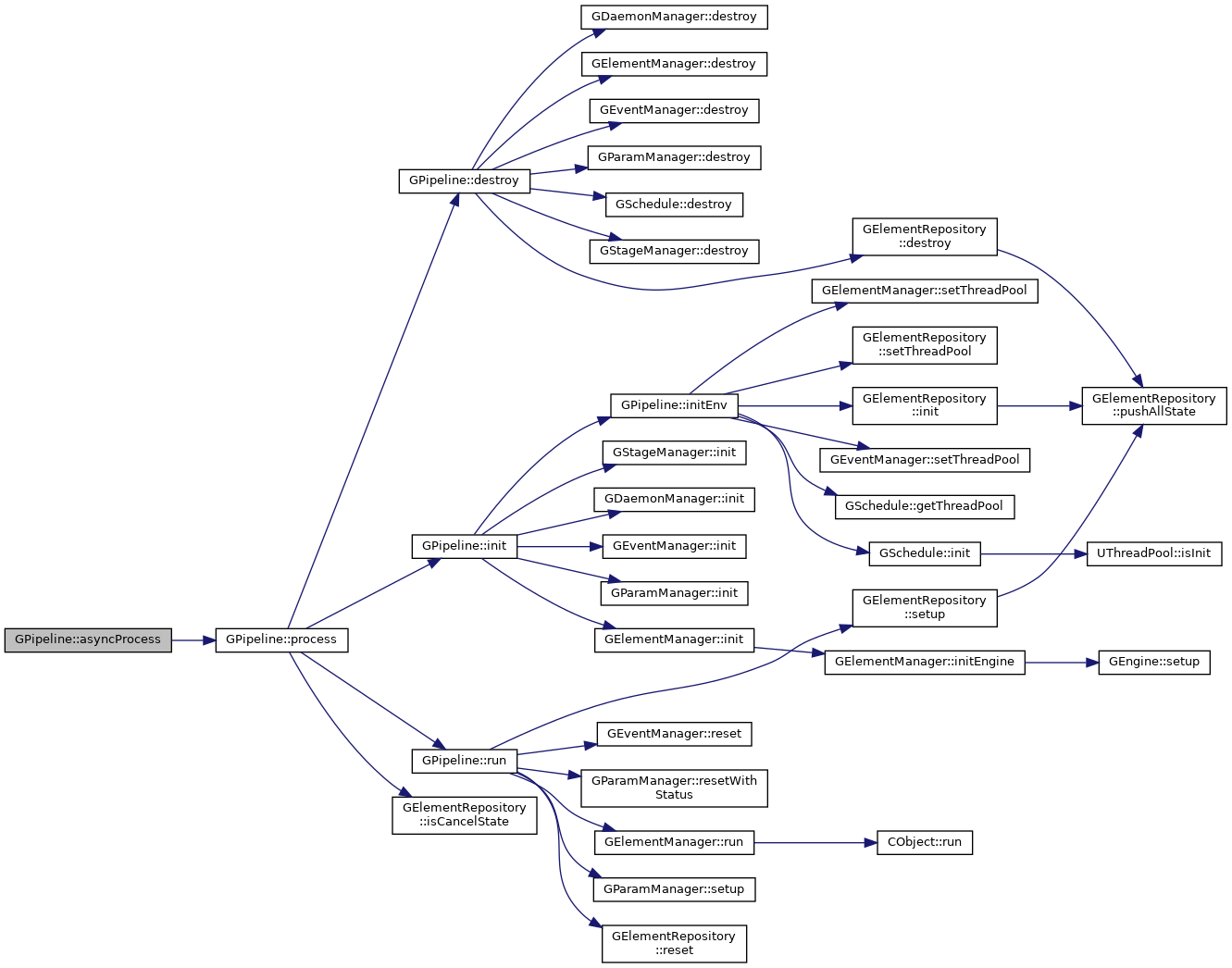

Here is the call graph for this function:

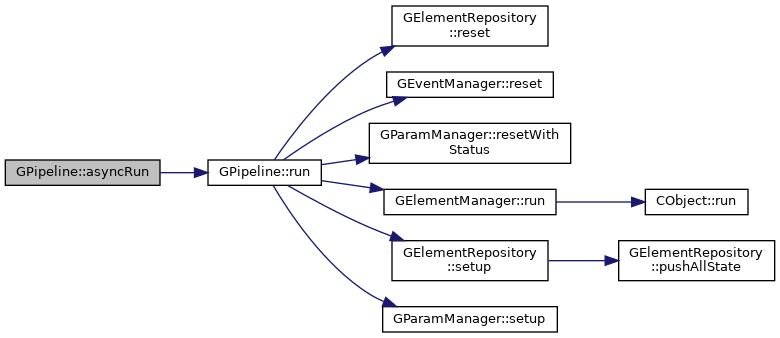

◆ asyncRun()

std::future< CStatus > GPipeline::asyncRun ( std::launch policy = std::launch::async )

异步执行pipeline的run流程

Parameters

policy

Returns

确认当前pipeline已经初始化完毕
异步的执行 run() 方法，并且返回执行结果的 future 信息

Here is the call graph for this function:

◆ cancel()

CStatus GPipeline::cancel ( )

停止执行流程，多用于异步执行流程中

Returns

Here is the call graph for this function:

◆ checkSeparate()

CBool GPipeline::checkSeparate	(	GElementPtr	fst,
		GElementPtr	snd
	)		const

判断两个element，是否有依赖关系

Parameters

fst
snd

Returns: @notice 如果返回 true，则表示不可能并发执行；否则表示可能并发执行

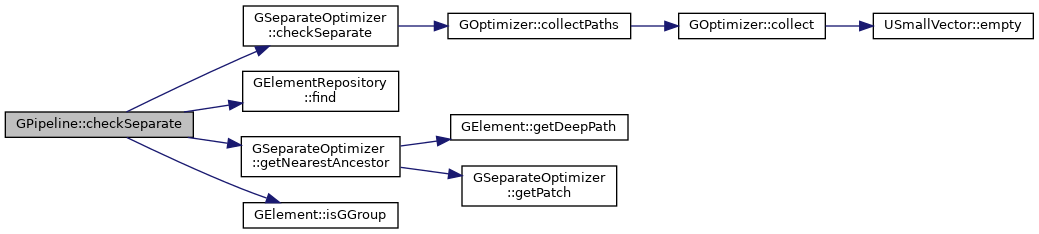

Here is the call graph for this function:

◆ createGGroup()

template<typename TGroup , c_enable_if_t< std::is_base_of< GGroup, TGroup >::value, int > >

TGroup * GPipeline::createGGroup	(	const GElementPtrArr &	elements,
		const GElementPtrSet &	depends = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

根据传入的信息，创建Group信息

Template Parameters

T

Parameters

elements
depends
name
loop

Returns

Here is the call graph for this function:

◆ createGNode() [1/2]

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GNode, TNode >::value, int > >

TNode * GPipeline::createGNode	(	const GElementPtrSet &	dependence = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`,
		Args &&...	args
	)

根据传入的信息，创建node节点

Template Parameters

T
Args

Parameters

name
loop
dependence
args

Returns

◆ createGNode() [2/2]

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GNode, TNode >::value, int > >

TNode * GPipeline::createGNode	(	const GNodeInfo &	info,
		Args &&...	args
	)

根据传入的info信息，创建node节点

Template Parameters

TNode
Args

Parameters

info
args

Returns

Here is the call graph for this function:

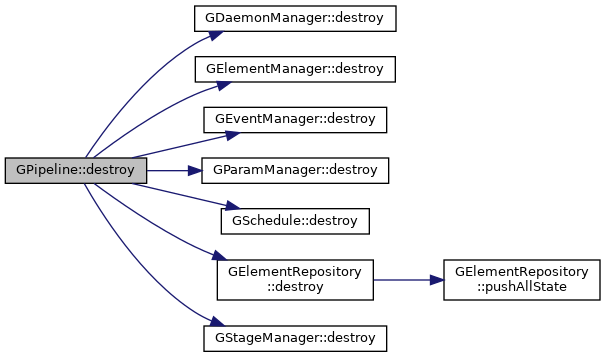

◆ destroy()

CStatus GPipeline::destroy ( )

overridevirtual

释放函数

需要先将线程池相关内容析构，然后再做destroy。否则的话，在错误status累积的情况下，在windows平台上，会产生崩溃

Reimplemented from CObject.

Here is the call graph for this function:

◆ dump()

CStatus GPipeline::dump ( std::ostream & oss = std::cout )

生成图可视化 graphviz 信息

Parameters

oss

Returns: @notice 将输出的内容，复制到 https://dreampuf.github.io/GraphvizOnline/ 中查看效果

◆ getCurState()

GPipelineState GPipeline::getCurState ( ) const

获取当前的执行状态

Returns

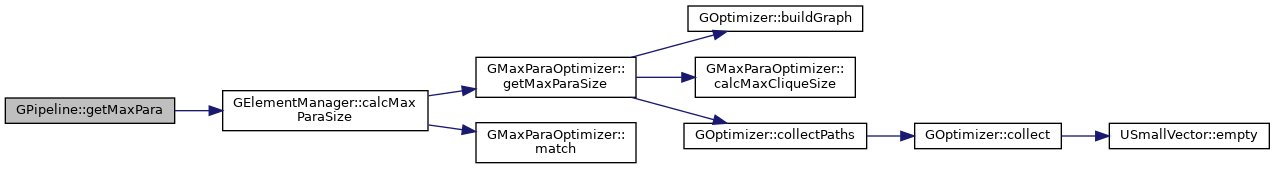

◆ getMaxPara()

CSize GPipeline::getMaxPara ( )

获取最大并发度

Returns: @notice 暂时仅支持dag中所有内容均为 node的情况下计算。返回的值，是理论最大线程数，不是最优值

Here is the call graph for this function:

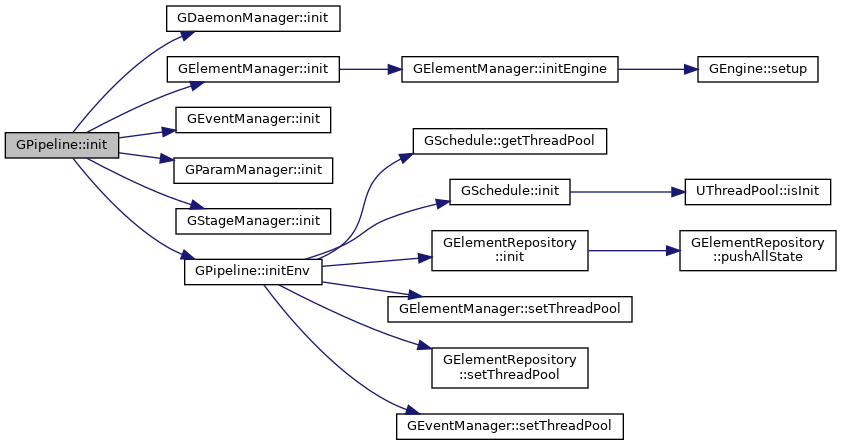

◆ init()

CStatus GPipeline::init ( )

overridevirtual

初始化函数

Reimplemented from CObject.

Here is the call graph for this function:

◆ initEnv()

CStatus GPipeline::initEnv ( )

private

初始化环境信息，包括线程池等

Returns

Here is the call graph for this function:

◆ innerRegister()

CStatus GPipeline::innerRegister	(	GElementPtr	element,
		const GElementPtrSet &	depends,
		const std::string &	name,
		CSize	loop
	)

private

内部真实一个 element 信息

Parameters

element
depends
name
loop

Returns

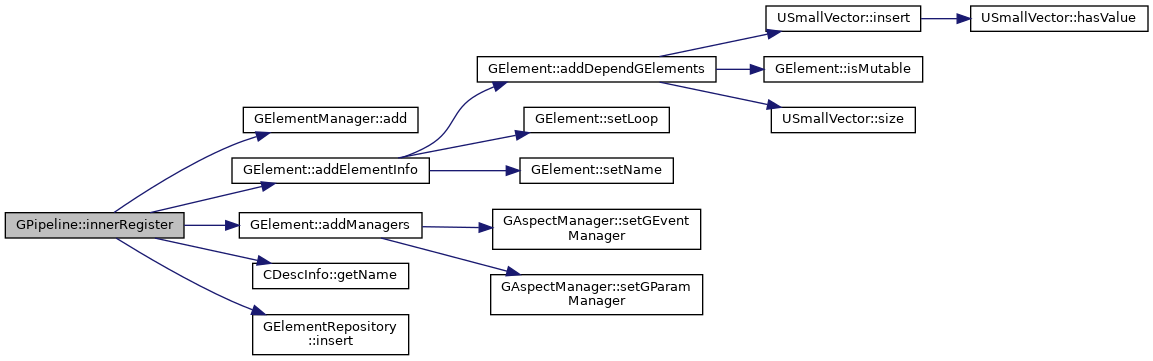

Here is the call graph for this function:

◆ makeSerial()

CStatus GPipeline::makeSerial ( )

将符合串行执行条件的pipeline，设定为串行执行的模式。可以大幅度提升运行性能。

Returns: @notice 如果pipeline不可以设定的话，通过返回值提示对应信息

Here is the call graph for this function:

◆ perf()

CStatus GPipeline::perf ( std::ostream & oss = std::cout )

查看性能分析

Returns: @notice 将输出的内容，复制到 https://dreampuf.github.io/GraphvizOnline/ 中查看效果，字段解释如下： start : 当前element第一次被执行的时间 finish : 当前element最后一次被执行结束的时间 per_cost : 当前element单次执行耗时 total_cost : 当前element执行的总耗时（仅在element多次执行时展示）

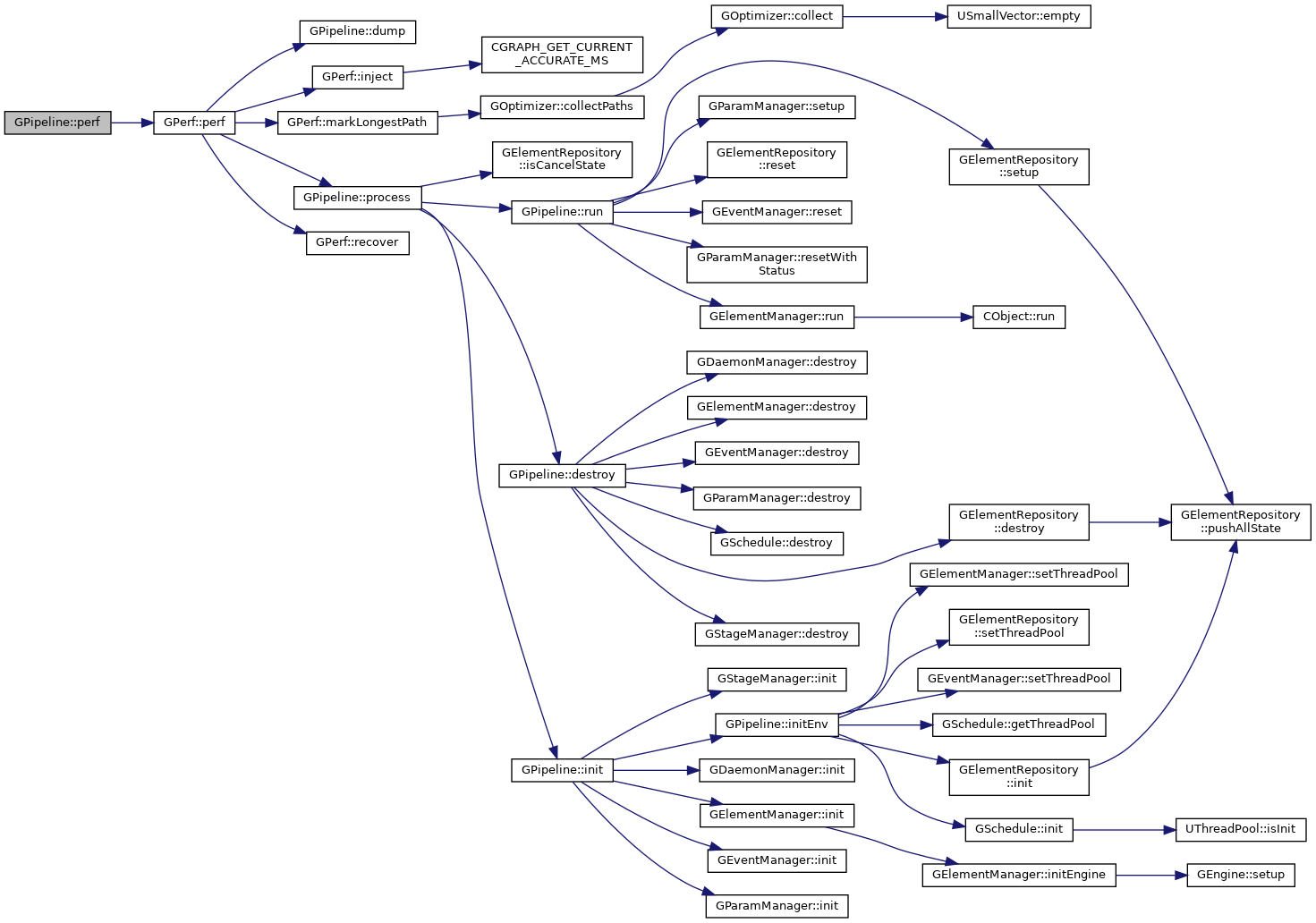

Here is the call graph for this function:

◆ process()

CStatus GPipeline::process ( CSize runTimes = CGRAPH_DEFAULT_LOOP_TIMES )

一次性执行完成初始化，执行runTimes次，和销毁的过程

Parameters

runTimes

Returns

执行轮数（runTimes）没有结束
执行结果正常
没有进入取消状态

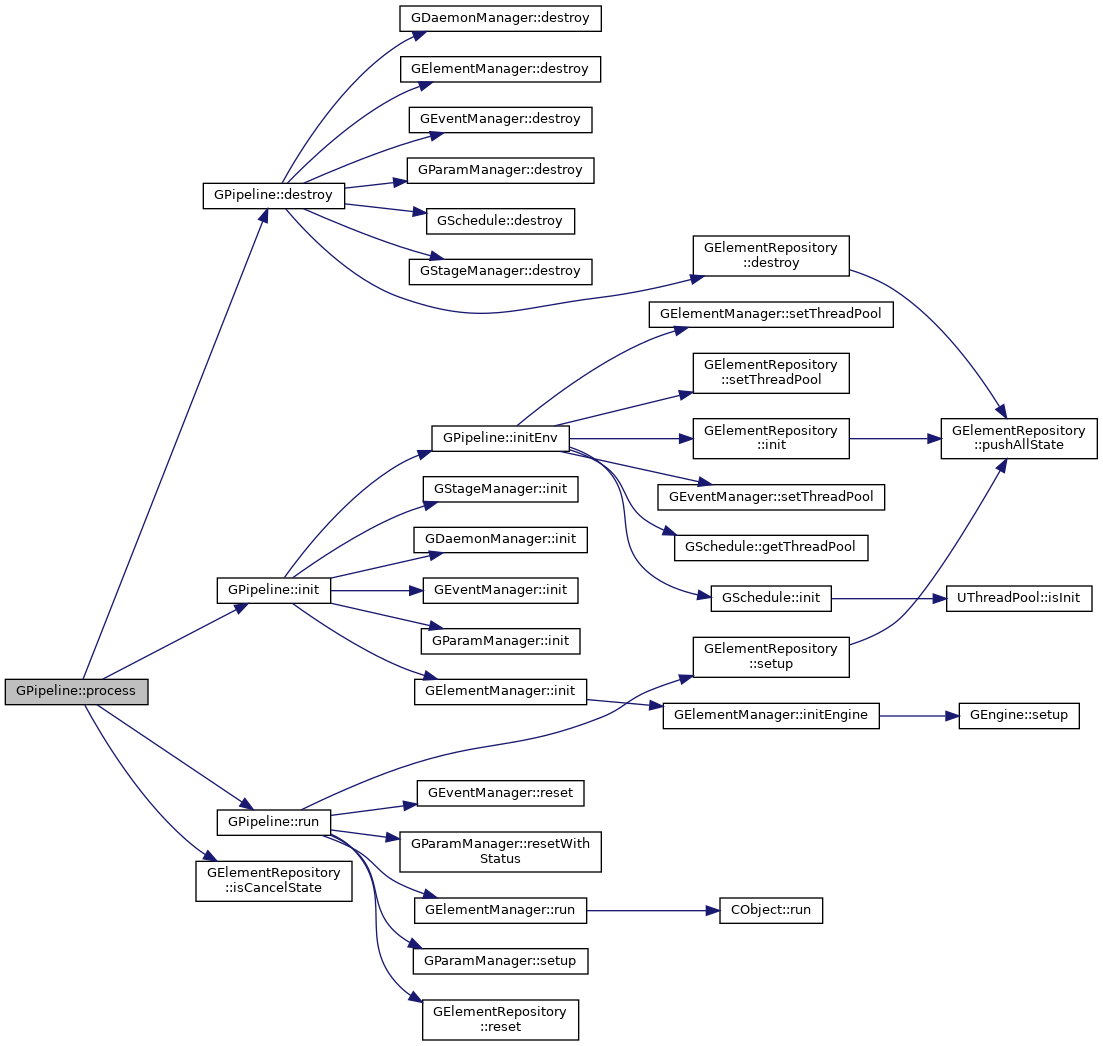

Here is the call graph for this function:

◆ registerGElement() [1/6]

template<typename GCoordinator , CInt SIZE>

CStatus GPipeline::registerGElement	(	GCoordinatorPPtr< SIZE >	coordinatorRef,
		const GElementPtrSet &	depends = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

注册GCoordinator类型的内容，模板特化

Template Parameters

GCoordinator
SIZE

Parameters

coordinatorRef
depends
name
loop

Returns

◆ registerGElement() [2/6]

template<typename T , c_enable_if_t< std::is_base_of< GElement, T >::value, int > >

CGRAPH_NAMESPACE_BEGIN CStatus GPipeline::registerGElement	(	GElementPPtr	elementRef,
		const GElementPtrSet &	depends,
		const std::string &	name,
		CSize	loop
	)

如果是GGroup类型的信息，则： 1，必须外部创建 2，未被注册到其他的pipeline中

如果不是group信息的话，且属于element（包含node和adapter）则直接内部创建该信息

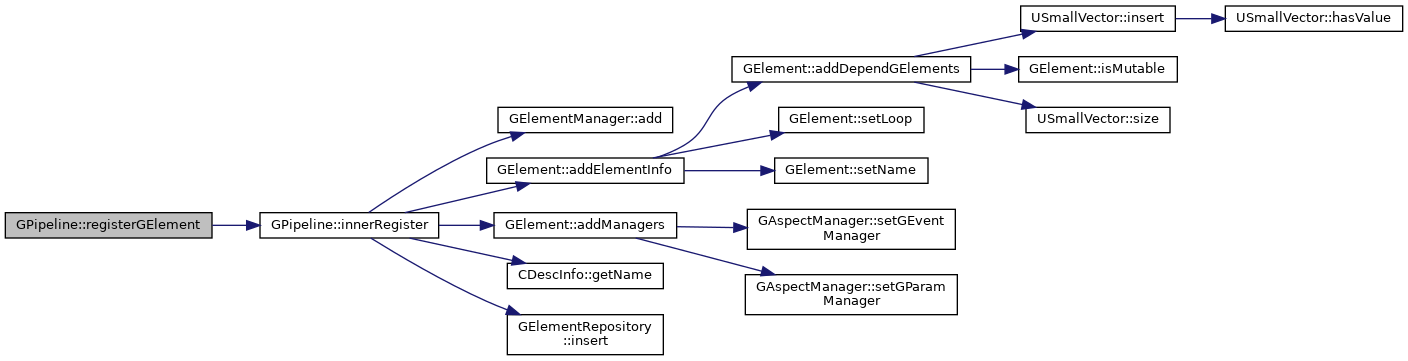

Here is the call graph for this function:

◆ registerGElement() [3/6]

template<typename T , c_enable_if_t< std::is_base_of< GElement, T >::value, int > = 0>

CStatus GPipeline::registerGElement	(	GElementPPtr	elementRef,
		const GElementPtrSet &	depends = `std::initializer_list< GElementPtr >()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

在图中注册一个 GElement信息如果注册的是GNode信息，则内部自动生成如果注册的是GGroup信息，则需外部提前生成，然后注册进来

Template Parameters

T

Parameters

elementRef
depends
name
loop

Returns

◆ registerGElement() [4/6]

template<typename GFence >

CStatus GPipeline::registerGElement	(	GFencePPtr	fenceRef,
		const GElementPtrSet &	depends = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

注册fence类型的内容，模板特化

Template Parameters

GFence

Parameters

fenceRef
depends
name
loop

Returns

◆ registerGElement() [5/6]

template<typename GFunction >

CStatus GPipeline::registerGElement	(	GFunctionPPtr	functionRef,
		const GElementPtrSet &	depends = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

注册function类型的内容，模板特化

Template Parameters

GFunction

Parameters

functionRef
depends
name
loop

Returns

◆ registerGElement() [6/6]

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateNode< Args ... >, TNode >::value, int > >

CStatus GPipeline::registerGElement	(	GTemplateNodePtr< Args ... > *	elementRef,
		const GElementPtrSet &	depends,
		Args...	args
	)

在图中注册一个模板Element信息

Template Parameters

TNode
Args

Parameters

elementRef
depends

Returns

Here is the call graph for this function:

◆ registerGGroup()

CStatus GPipeline::registerGGroup	(	GElementPPtr	groupRef,
		const GElementPtrSet &	depends = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

注册一个组信息（推荐使用）

Parameters

groupRef
depends
name
loop

Returns

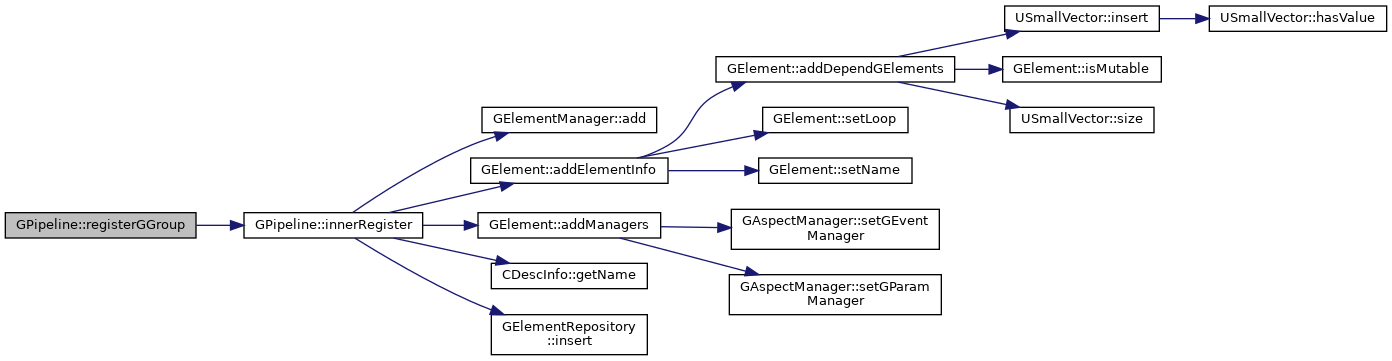

Here is the call graph for this function:

◆ registerGNode() [1/3]

template<typename TNode , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateNode< Args ... >, TNode >::value, int > >

TNode * GPipeline::registerGNode	(	const GElementPtrSet &	depends,
		Args...	args
	)

注册一个 node

Template Parameters

TNode
Args

Parameters

depends
args

Returns

◆ registerGNode() [2/3]

template<typename TNode , c_enable_if_t< std::is_base_of< GNode, TNode >::value, int > >

TNode * GPipeline::registerGNode	(	const GElementPtrSet &	depends = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

注册一个 node

Template Parameters

T

Parameters

depends
name
loop

Returns

◆ registerGNode() [3/3]

CStatus GPipeline::registerGNode	(	GElementPPtr	nodeRef,
		const GElementPtrSet &	depends = `std::initializer_list<GElementPtr>()`,
		const std::string &	name = `CGRAPH_EMPTY`,
		CSize	loop = `CGRAPH_DEFAULT_LOOP_TIMES`
	)

注册一个节点信息

Parameters

nodeRef
depends
name
loop

Returns

Here is the call graph for this function:

◆ resume()

CStatus GPipeline::resume ( )

恢复当前pipeline的执行，多用于异步执行流程中

Returns

Here is the call graph for this function:

◆ run()

CStatus GPipeline::run ( )

overridevirtual

流程处理函数

将所有 GElement 的状态设定为 NORMAL
将所有的 GParam 设置为初始值
执行dag逻辑
将所有 GElement 的状态恢复为 NORMAL
等到所有异步事件执行结束
将所有的 GParam 复原

Implements CObject.

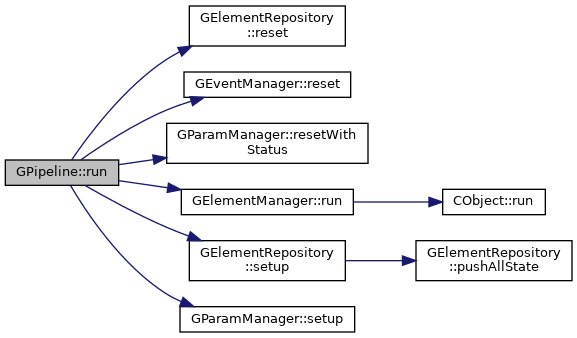

Here is the call graph for this function:

◆ setGEngineType()

GPipelinePtr GPipeline::setGEngineType ( GEngineType type )

设置引擎策略

Parameters

type

Returns

Here is the call graph for this function:

◆ setSharedThreadPool()

GPipelinePtr GPipeline::setSharedThreadPool ( UThreadPoolPtr ptr )

设置共享的线程池

Parameters

ptr

Returns: @notice 如果传入 nullptr 的话，则默认使用本地独占线程池

Here is the call graph for this function:

◆ setUniqueThreadPoolConfig()

GPipelinePtr GPipeline::setUniqueThreadPoolConfig ( const UThreadPoolConfig & config )

设置本pipeline内部线程池相关信息

Parameters

config

Returns

实际是将信息传递给 schedule中，如果是unique的话，就使用这个参数如果是 shared的话，其实配置是无效的

Here is the call graph for this function:

◆ trim()

CSize GPipeline::trim ( )

针对图结构，做多余边剪裁

Returns: 返回值表示裁剪了多少条信息

Here is the call graph for this function:

◆ yield()

CStatus GPipeline::yield ( )

暂停当前pipeline的执行，多用于异步执行流程中

Returns

Here is the call graph for this function:

Friends And Related Function Documentation

◆ CAllocator

friend class CAllocator

friend

◆ GPerf

friend class GPerf

friend

◆ GPipelineFactory

friend class GPipelineFactory

friend

Member Data Documentation

◆ daemon_manager_

GDaemonManagerPtr GPipeline::daemon_manager_ = nullptr

private

◆ element_manager_

GElementManagerPtr GPipeline::element_manager_ = nullptr

private

不允许外部赋值和构造

◆ event_manager_

GEventManagerPtr GPipeline::event_manager_ = nullptr

private

◆ param_manager_

GParamManagerPtr GPipeline::param_manager_ = nullptr

private

◆ repository_

GElementRepository GPipeline::repository_

private

◆ schedule_

GSchedule GPipeline::schedule_

private

◆ stage_manager_

GStageManagerPtr GPipeline::stage_manager_ = nullptr

private

The documentation for this class was generated from the following files:

src/GraphCtrl/GraphPipeline/GPipeline.h
src/GraphCtrl/GraphPipeline/GPipeline.cpp
src/GraphCtrl/GraphPipeline/GPipeline.inl

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Constructor & Destructor Documentation

◆ GPipeline()

◆ ~GPipeline()

Member Function Documentation

◆ addGAspect() [1/2]

◆ addGAspect() [2/2]

◆ addGDaemon() [1/4]

◆ addGDaemon() [2/4]

◆ addGDaemon() [3/4]

◆ addGDaemon() [4/4]

◆ addGEvent() [1/2]

◆ addGEvent() [2/2]

◆ addGStage()

◆ asyncProcess()

◆ asyncRun()

◆ cancel()

◆ checkSeparate()

◆ createGGroup()

◆ createGNode() [1/2]

◆ createGNode() [2/2]

◆ destroy()

◆ dump()

◆ getCurState()

◆ getMaxPara()

◆ init()

◆ initEnv()

◆ innerRegister()

◆ makeSerial()

◆ perf()

◆ process()

◆ registerGElement() [1/6]

◆ registerGElement() [2/6]

◆ registerGElement() [3/6]

◆ registerGElement() [4/6]

◆ registerGElement() [5/6]

◆ registerGElement() [6/6]

◆ registerGGroup()

◆ registerGNode() [1/3]

◆ registerGNode() [2/3]

◆ registerGNode() [3/3]

◆ resume()

◆ run()

◆ setGEngineType()

◆ setSharedThreadPool()

◆ setUniqueThreadPoolConfig()

◆ trim()

◆ yield()

Friends And Related Function Documentation

◆ CAllocator

◆ GPerf

◆ GPipelineFactory

Member Data Documentation

◆ daemon_manager_

◆ element_manager_

◆ event_manager_

◆ param_manager_

◆ repository_

◆ schedule_

◆ stage_manager_
