线程池，包含主线程池、辅助线程池、普通任务队列、优先级任务队列、线程池配置、监控线程等 More...

#include <UThreadPool.h>

Inheritance diagram for UThreadPool:

[legend]

Collaboration diagram for UThreadPool:

[legend]

Public Member Functions
	UThreadPool (CBool autoInit=true, const UThreadPoolConfig &config=UThreadPoolConfig()) noexcept

	~UThreadPool () override

CStatus	setConfig (const UThreadPoolConfig &config)

UThreadPoolConfig	getConfig () const

CStatus	init () final

template<typename FunctionType >
auto	commit (const FunctionType &task, CIndex index=CGRAPH_DEFAULT_TASK_STRATEGY) -> std::future< decltype(std::declval< FunctionType >()())>

template<typename FunctionType >
auto	commitWithTid (const FunctionType &task, CIndex tid, CBool enable, CBool lockable) -> std::future< decltype(std::declval< FunctionType >()())>

template<typename FunctionType >
auto	commitWithPriority (const FunctionType &task, int priority) -> std::future< decltype(std::declval< FunctionType >()())>

template<typename FunctionType >
CVoid	execute (const FunctionType &task, CIndex index=CGRAPH_DEFAULT_TASK_STRATEGY)

CStatus	submit (const UTaskGroup &taskGroup, CMSec ttl=CGRAPH_MAX_BLOCK_TTL)
	遍历入参taskGroup的task_arr_，通过commit接口提交到对应的线程池或者任务队列；将commit返回的std::future对象存入futures数组；根据taskGtoup的TTL和本线程池配置的TTL计算futures等待的timeout (deadline)，在deadline到达之前遍历等到所有的std::future对象返回，并根据返回值统计status；最后执行taskGroup自带的on_finished_接口 More...

CStatus	submit (CGRAPH_DEFAULT_CONST_FUNCTION_REF func, CMSec ttl=CGRAPH_MAX_BLOCK_TTL, CGRAPH_CALLBACK_CONST_FUNCTION_REF onFinished=nullptr)

CIndex	getThreadIndex (CSize tid)

CStatus	destroy () final

CBool	isInit () const

CStatus	createSecondaryThread (CInt size)

CStatus	releaseSecondaryThread (CInt size)

template<typename FunctionType >
CGRAPH_NAMESPACE_BEGIN auto	commit (const FunctionType &task, CIndex index) -> std::future< decltype(std::declval< FunctionType >()())>

Public Member Functions inherited from CObject
	CObject ()=default

virtual	~CObject ()=default

Protected Member Functions
virtual CIndex	dispatch (CIndex origIndex)

CVoid	monitor ()

Protected Member Functions inherited from UThreadObject
CStatus	run () override

Protected Member Functions inherited from UtilsObject
CStatus	run () override

Private Attributes
CBool	is_init_ { false }

CInt	cur_index_ = 0

UAtomicQueue< UTask >	task_queue_

UAtomicPriorityQueue< UTask >	priority_task_queue_

std::vector< UThreadPrimaryPtr >	primary_threads_

std::list< std::unique_ptr< UThreadSecondary > >	secondary_threads_

UThreadPoolConfig	config_

std::thread	monitor_thread_

std::map< CSize, int >	thread_record_map_

std::mutex	st_mutex_

Detailed Description

线程池，包含主线程池、辅助线程池、普通任务队列、优先级任务队列、线程池配置、监控线程等

Constructor & Destructor Documentation

◆ UThreadPool()

CGRAPH_NAMESPACE_BEGIN UThreadPool::UThreadPool	(	CBool	autoInit = `true`,
		const UThreadPoolConfig &	config = `UThreadPoolConfig()`
	)

explicitnoexcept

通过默认设置参数，来创建线程池

Parameters

autoInit	是否自动开启线程池功能
config

◆ ~UThreadPool()

UThreadPool::~UThreadPool ( )

override

析构函数

Here is the call graph for this function:

Member Function Documentation

◆ commit() [1/2]

template<typename FunctionType >

CGRAPH_NAMESPACE_BEGIN auto UThreadPool::commit	(	const FunctionType &	task,
		CIndex	index
	)		-> std::future<decltype(std::declval<FunctionType>()())>

如果是长时间任务，则交给特定的任务队列，仅由辅助线程处理目的是防止有很多长时间任务，将所有运行的线程均阻塞长任务程序，默认优先级较低

◆ commit() [2/2]

template<typename FunctionType >

auto UThreadPool::commit	(	const FunctionType &	task,
		CIndex	index = `CGRAPH_DEFAULT_TASK_STRATEGY`
	)		-> std::future< decltype(std::declval< FunctionType >()())>

提交任务信息并分发到对应的任务队列(普通or优先)和线程池(主or辅) 入参index可以指定线程id，但是实际上仍然需要通过dispatch来真正分发分发到的index在主线程index范围内的，提交到主线程池的执行(primary_threads_) 指定的index为长时间任务的，只能分发到优先级队列执行(priority_task_queue_) 其他情况下分发到默认的任务队列执行(task_queue_) 返回的是将task封装成std::packaged_task后get_future返回的std::future对象

Template Parameters

FunctionType

Parameters

task
index

Returns

◆ commitWithPriority()

template<typename FunctionType >

auto UThreadPool::commitWithPriority	(	const FunctionType &	task,
		int	priority
	)		-> std::future<decltype(std::declval<FunctionType>()())>

根据优先级，执行任务

Template Parameters

FunctionType

Parameters

task
priority	优先级别。自然序从大到小依次执行

Returns: @notice 建议，priority 范围在 [-100, 100] 之间

◆ commitWithTid()

template<typename FunctionType >

auto UThreadPool::commitWithTid	(	const FunctionType &	task,
		CIndex	tid,
		CBool	enable,
		CBool	lockable
	)		-> std::future<decltype(std::declval<FunctionType>()())>

向特定的线程id中，提交任务信息

Template Parameters

FunctionType

Parameters

task
tid	线程id。如果超出主线程个数范围，则默认写入pool的通用队列中
enable	是否启用上锁/解锁功能
lockable	上锁(true) / 解锁(false)

Returns

◆ createSecondaryThread()

CStatus UThreadPool::createSecondaryThread ( CInt size )

生成辅助线程。内部确保辅助线程数量不超过设定参数最大线程数量(max) ≥ 主线程数量(default) + 已有辅助线程数量(secondary)

Parameters

size

Returns

◆ destroy()

CStatus UThreadPool::destroy ( )

finalvirtual

释放所有的线程信息

Returns

这里之所以 destroy和 delete分开两个循环执行，是因为当前线程被delete后，还可能存在未被delete的主线程，来steal当前线程的任务在windows环境下，可能出现问题。 destroy 和 delete 分开之后，不会出现此问题。感谢 Ryan大佬(https://github.com/ryanhuang) 提供的帮助

Reimplemented from CObject.

Here is the call graph for this function:

◆ dispatch()

CIndex UThreadPool::dispatch ( CIndex origIndex )

protectedvirtual

根据传入的策略信息，确定最终执行方式

Parameters

origIndex

Returns

◆ execute()

template<typename FunctionType >

CVoid UThreadPool::execute	(	const FunctionType &	task,
		CIndex	index = `CGRAPH_DEFAULT_TASK_STRATEGY`
	)

异步执行任务

Template Parameters

FunctionType

Parameters

task
index

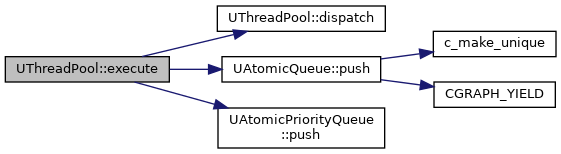

Here is the call graph for this function:

◆ getConfig()

UThreadPoolConfig UThreadPool::getConfig ( ) const

获取线程池配置信息

Returns

◆ getThreadIndex()

CIndex UThreadPool::getThreadIndex ( CSize tid )

获取根据线程id信息，获取线程index信息 thread_record_map_会维护tid到线程index的映射关系，通过查表得到index

Parameters

tid

Returns: @notice 辅助线程返回-1

◆ init()

CStatus UThreadPool::init ( )

finalvirtual

开启所有的线程信息

Returns

等待所有thread 设置完毕之后，再进行 init()，避免在个别的平台上，可能出现 thread竞争访问其他线程、并且导致异常的情况参考： https://github.com/ChunelFeng/CGraph/issues/309

策略更新：初始化的时候，也可以创建n个辅助线程。目的是为了配合仅使用 pool中 priority_queue 的场景一般情况下，建议为0。

Reimplemented from CObject.

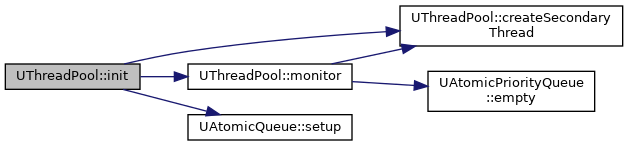

Here is the call graph for this function:

◆ isInit()

CBool UThreadPool::isInit ( ) const

判断线程池是否已经初始化了

Returns

◆ monitor()

CVoid UThreadPool::monitor ( )

protected

监控线程执行函数，主要是判断是否需要增加线程，或销毁线程增/删操作，仅针对secondary类型线程生效

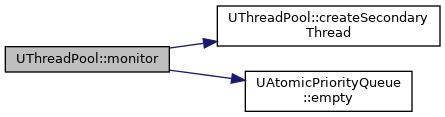

Here is the call graph for this function:

◆ releaseSecondaryThread()

CStatus UThreadPool::releaseSecondaryThread ( CInt size )

删除辅助线程

Parameters

size

Returns

◆ setConfig()

CStatus UThreadPool::setConfig ( const UThreadPoolConfig & config )

设置线程池相关配置信息，需要在init()函数调用前，完成设置

Parameters

config

Returns: @notice 通过单例类(UThreadPoolSingleton)开启线程池，则线程池默认init。需要 destroy 后才可以设置参数

◆ submit() [1/2]

CStatus UThreadPool::submit	(	CGRAPH_DEFAULT_CONST_FUNCTION_REF	func,
		CMSec	ttl = `CGRAPH_MAX_BLOCK_TTL`,
		CGRAPH_CALLBACK_CONST_FUNCTION_REF	onFinished = `nullptr`
	)

针对单个任务的情况，复用任务组信息，实现单个任务直接执行

Parameters

task
ttl
onFinished

Returns

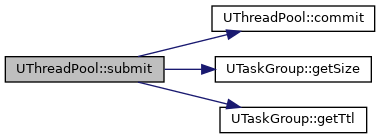

Here is the call graph for this function:

◆ submit() [2/2]

CStatus UThreadPool::submit	(	const UTaskGroup &	taskGroup,
		CMSec	ttl = `CGRAPH_MAX_BLOCK_TTL`
	)

遍历入参taskGroup的task_arr_，通过commit接口提交到对应的线程池或者任务队列；将commit返回的std::future对象存入futures数组；根据taskGtoup的TTL和本线程池配置的TTL计算futures等待的timeout (deadline)，在deadline到达之前遍历等到所有的std::future对象返回，并根据返回值统计status；最后执行taskGroup自带的on_finished_接口

执行任务组信息取taskGroup内部ttl和入参ttl的最小值，为计算ttl标准

Parameters

taskGroup
ttl

Returns

Parameters

taskGroup
ttl

Returns: CStatus

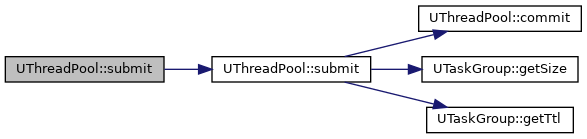

Here is the call graph for this function:

Member Data Documentation

◆ config_

UThreadPoolConfig UThreadPool::config_

private

◆ cur_index_

CInt UThreadPool::cur_index_ = 0

private

◆ is_init_

CBool UThreadPool::is_init_ { false }

private

◆ monitor_thread_

std::thread UThreadPool::monitor_thread_

private

◆ primary_threads_

std::vector<UThreadPrimaryPtr> UThreadPool::primary_threads_

private

◆ priority_task_queue_

UAtomicPriorityQueue<UTask> UThreadPool::priority_task_queue_

private

◆ secondary_threads_

std::list<std::unique_ptr<UThreadSecondary> > UThreadPool::secondary_threads_

private

◆ st_mutex_

std::mutex UThreadPool::st_mutex_

private

◆ task_queue_

UAtomicQueue<UTask> UThreadPool::task_queue_

private

◆ thread_record_map_

std::map<CSize, int> UThreadPool::thread_record_map_

private

The documentation for this class was generated from the following files:

src/UtilsCtrl/ThreadPool/UThreadPool.h
src/UtilsCtrl/ThreadPool/UThreadPool.cpp
src/UtilsCtrl/ThreadPool/UThreadPool.inl
