UThreadSecondary Class Reference

和主线程UThreadPrimary不同，辅助线程没有第一第二任务队列的概念，因为辅助线程不允许窃取， 而是直接从普通任务队列(pool_task_queue_)和优先级任务队列(pool_priority_task_queue_)取任务 当然：主线程不会从优先级任务队列(pool_priority_task_queue_)取任务， 这个任务队列存储的一般是长时间任务，是辅助线程专用的 More...

#include <UThreadSecondary.h>

Inheritance diagram for UThreadSecondary:

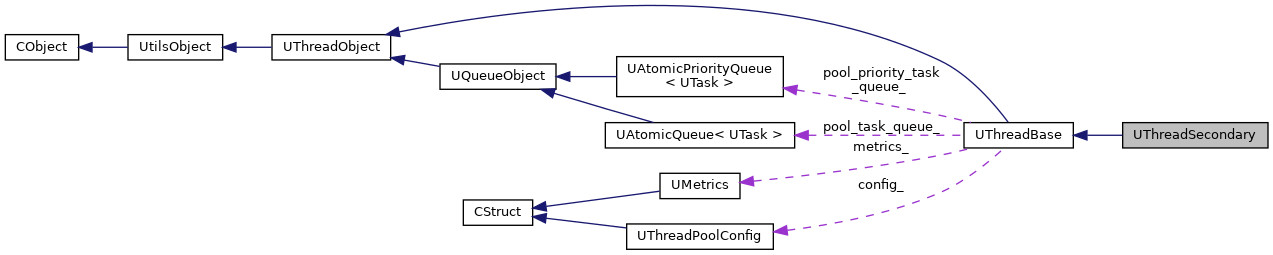

Collaboration diagram for UThreadSecondary:

Public Member Functions
	UThreadSecondary ()
Public Member Functions inherited from CObject
	CObject ()=default
virtual	~CObject ()=default

Protected Member Functions
CStatus	init () override
CStatus	setThreadPoolInfo (UAtomicQueue< UTask > *poolTaskQueue, UAtomicPriorityQueue< UTask > *poolPriorityTaskQueue, UThreadPoolConfigPtr config)
CStatus	run () final
CVoid	processTask () override
CVoid	processTasks () override
CVoid	waitRunTask (CMSec ms)
bool	freeze ()
Protected Member Functions inherited from UThreadBase
	UThreadBase ()
	~UThreadBase () override
CStatus	destroy () override
virtual CBool	popPoolTask (UTaskRef task)
virtual CBool	popPoolTask (UTaskArrRef tasks)
CVoid	runTask (UTask &task)
CVoid	runTasks (UTaskArr &tasks)
CVoid	reset ()
CVoid	loopProcess ()
CVoid	setSchedParam ()
CVoid	setAffinity (int index)
Protected Member Functions inherited from UThreadObject
CStatus	run () override
Protected Member Functions inherited from UtilsObject
CStatus	run () override

Private Attributes
CSec	cur_ttl_ = 0

Friends
class	UThreadPool

Additional Inherited Members
Protected Attributes inherited from UThreadBase
CBool	done_
CBool	is_init_
CBool	is_running_
CInt	type_ = 0
CULong	total_task_num_ = 0
UAtomicQueue< UTask > *	pool_task_queue_
UAtomicPriorityQueue< UTask > *	pool_priority_task_queue_
UThreadPoolConfigPtr	config_ = nullptr
UMetrics	metrics_
std::thread	thread_
std::mutex	mutex_
std::condition_variable	cv_

Detailed Description

和主线程UThreadPrimary不同，辅助线程没有第一第二任务队列的概念，因为辅助线程不允许窃取， 而是直接从普通任务队列(pool_task_queue_)和优先级任务队列(pool_priority_task_queue_)取任务 当然：主线程不会从优先级任务队列(pool_priority_task_queue_)取任务， 这个任务队列存储的一般是长时间任务，是辅助线程专用的

Constructor & Destructor Documentation

UThreadSecondary()

UThreadSecondary::UThreadSecondary ( )

inlineexplicit

Member Function Documentation

freeze()

bool UThreadSecondary::freeze ( )

inlineprotected

判断本线程是否需要被自动释放

Returns

init()

CStatus UThreadSecondary::init ( )

inlineoverrideprotectedvirtual

初始化函数

Reimplemented from CObject.

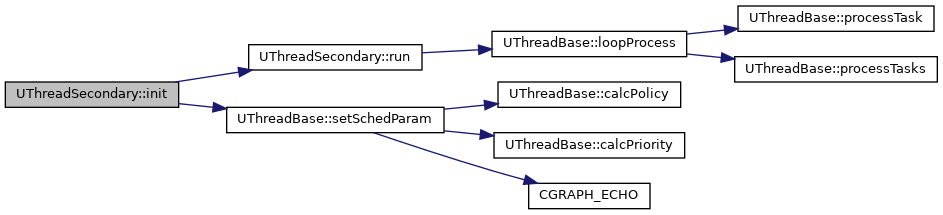

Here is the call graph for this function:

processTask()

CVoid UThreadSecondary::processTask ( )

inlineoverrideprotectedvirtual

执行单个消息

Returns

Implements UThreadBase.

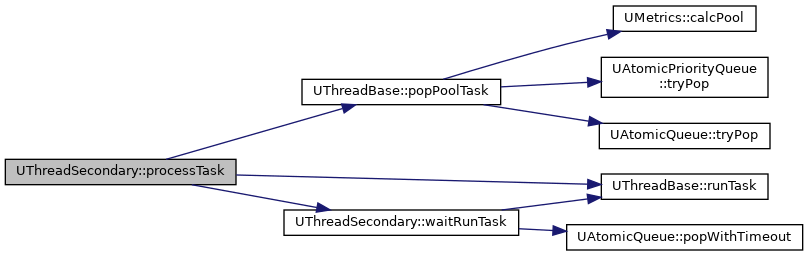

Here is the call graph for this function:

processTasks()

CVoid UThreadSecondary::processTasks ( )

inlineoverrideprotectedvirtual

获取批量执行task信息

Implements UThreadBase.

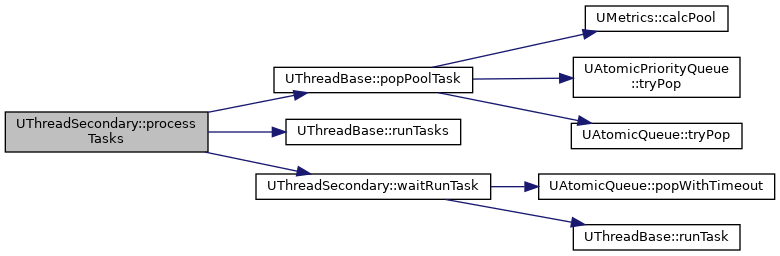

Here is the call graph for this function:

run()

CStatus UThreadSecondary::run ( )

inlinefinalprotectedvirtual

流程处理函数

Implements CObject.

Here is the call graph for this function:

setThreadPoolInfo()

CStatus UThreadSecondary::setThreadPoolInfo ( UAtomicQueue< UTask > *  poolTaskQueue, UAtomicPriorityQueue< UTask > *  poolPriorityTaskQueue, UThreadPoolConfigPtr  config  )

inlineprotected

设置pool的信息

Parameters

poolTaskQueue
poolPriorityTaskQueue
config

Returns

waitRunTask()

CVoid UThreadSecondary::waitRunTask ( CMSec  ms )

inlineprotected

有等待的执行任务

Parameters

ms

Returns

@notice 目的是降低cpu的占用率

Here is the call graph for this function:

Friends And Related Function Documentation

UThreadPool

friend class UThreadPool

friend

Member Data Documentation

cur_ttl_

CSec UThreadSecondary::cur_ttl_ = 0

private

---

The documentation for this class was generated from the following file:

• src/UtilsCtrl/ThreadPool/Thread/UThreadSecondary.h
