GDaemonObject Class Reference

在GraphObject和CDescInfo的基础上新增私有成员param_manager_/event_manager_/param_/interval_ param_manager_/event_manager_用于引入GParamManager和GEventManager param_用于引入GPassedParam，对于GDaemonObject来说是GDaemonParam interval_则是GDaemonObject独有的，维护定时器的执行周期 More...

#include <GDaemonObject.h>

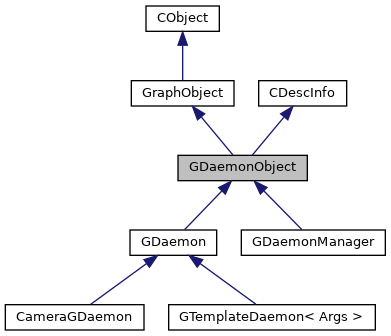

Inheritance diagram for GDaemonObject:

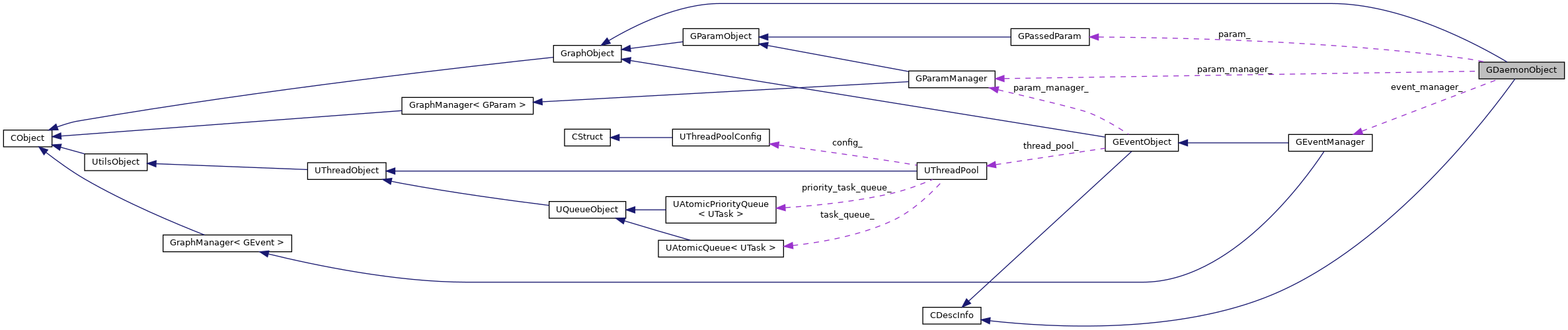

Collaboration diagram for GDaemonObject:

Public Member Functions
template<typename DParam , c_enable_if_t< std::is_base_of< GDaemonParam, DParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN GDaemonObjectPtr	setDParam (DParam *param)
Public Member Functions inherited from CObject
	CObject ()=default
virtual CStatus	init ()
virtual CStatus	destroy ()
virtual	~CObject ()=default
Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const
const std::string &	getSession () const
const std::string &	getDescription () const
virtual auto	setName (const std::string &name) -> decltype(this)
virtual auto	setDescription (const std::string &description) -> decltype(this)
virtual	~CDescInfo ()=default

Protected Member Functions
	GDaemonObject ()
	~GDaemonObject () override
virtual GDaemonObject *	setInterval (CMSec interval)
template<typename DParam , c_enable_if_t< std::is_base_of< GDaemonParam, DParam >::value, int > = 0>
GDaemonObject *	setDParam (DParam *param)

Private Member Functions
CStatus	run () final

Private Attributes
GParamManagerPtr	param_manager_ = nullptr
GEventManagerPtr	event_manager_ = nullptr
GDaemonParamPtr	param_ = nullptr
CMSec	interval_ = 0

Friends
class	GDaemon
class	GDaemonManager
class	GPipeline

Additional Inherited Members
Protected Attributes inherited from CDescInfo
std::string	name_
std::string	session_
std::string	description_

Detailed Description

在GraphObject和CDescInfo的基础上新增私有成员param_manager_/event_manager_/param_/interval_ param_manager_/event_manager_用于引入GParamManager和GEventManager param_用于引入GPassedParam，对于GDaemonObject来说是GDaemonParam interval_则是GDaemonObject独有的，维护定时器的执行周期

Constructor & Destructor Documentation

GDaemonObject()

GDaemonObject::GDaemonObject ( )

inlineexplicitprotected

Here is the call graph for this function:

~GDaemonObject()

GDaemonObject::~GDaemonObject ( )

inlineoverrideprotected

Member Function Documentation

run()

CStatus GDaemonObject::run ( )

inlinefinalprivatevirtual

所有Daemon均不执行run方法

Returns

Implements CObject.

setDParam() [1/2]

template<typename DParam , c_enable_if_t< std::is_base_of< GDaemonParam, DParam >::value, int > = 0>

GDaemonObject* GDaemonObject::setDParam ( DParam *  param )

protected

设置daemon中参数，类型为GDaemonParam (即：GPassedParam)

Template Parameters

T

Parameters

param

Returns

setDParam() [2/2]

template<typename DParam , c_enable_if_t< std::is_base_of< GDaemonParam, DParam >::value, int > >

CGRAPH_NAMESPACE_BEGIN GDaemonObjectPtr GDaemonObject::setDParam

(

DParam *

param

)

Here is the call graph for this function:

setInterval()

virtual GDaemonObject* GDaemonObject::setInterval ( CMSec  interval )

inlineprotectedvirtual

设置休眠时间信息，单位ms

Returns

Friends And Related Function Documentation

GDaemon

friend class GDaemon

friend

GDaemonManager

friend class GDaemonManager

friend

GPipeline

friend class GPipeline

friend

Member Data Documentation

event_manager_

GEventManagerPtr GDaemonObject::event_manager_ = nullptr

private

interval_

CMSec GDaemonObject::interval_ = 0

private

param_

GDaemonParamPtr GDaemonObject::param_ = nullptr

private

param_manager_

GParamManagerPtr GDaemonObject::param_manager_ = nullptr

private

---

The documentation for this class was generated from the following files:

• src/GraphCtrl/GraphDaemon/GDaemonObject.h
• src/GraphCtrl/GraphDaemon/GDaemonObject.inl
