#include <GDaemon.h>

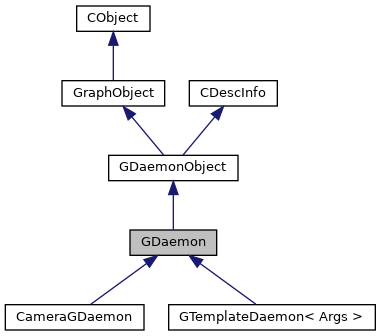

Inheritance diagram for GDaemon:

[legend]

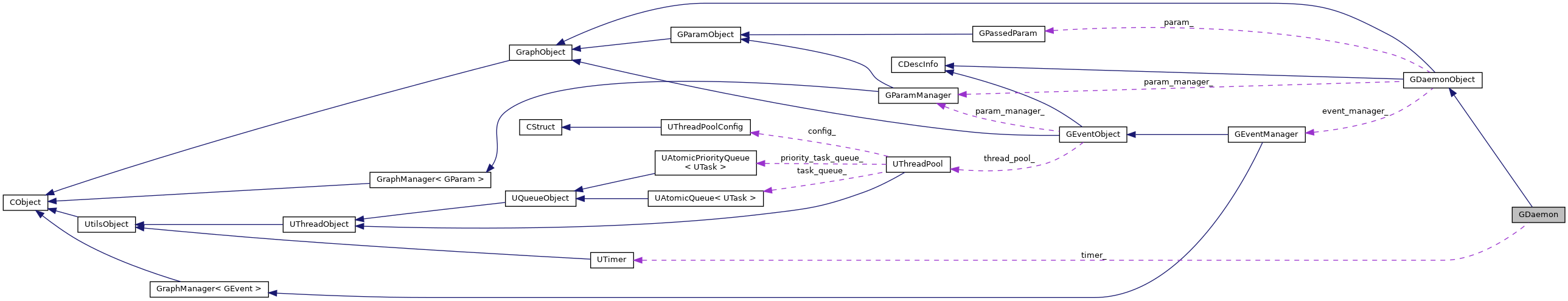

Collaboration diagram for GDaemon:

[legend]

Protected Member Functions
virtual CVoid	daemonTask (GDaemonParamPtr param)=0

virtual CMSec	modify (GDaemonParamPtr param)

CMSec	getInterval () const

Protected Member Functions inherited from GDaemonObject
	GDaemonObject ()

	~GDaemonObject () override

virtual GDaemonObject *	setInterval (CMSec interval)

template<typename DParam , c_enable_if_t< std::is_base_of< GDaemonParam, DParam >::value, int > = 0>
GDaemonObject *	setDParam (DParam *param)

Private Member Functions
CStatus	init () final

CStatus	destroy () final

Private Attributes
UTimer	timer_

Friends
class	GDaemonManager

class	GPipeline

Additional Inherited Members
Public Member Functions inherited from GDaemonObject
template<typename DParam , c_enable_if_t< std::is_base_of< GDaemonParam, DParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN GDaemonObjectPtr	setDParam (DParam *param)

Public Member Functions inherited from CObject
	CObject ()=default

virtual	~CObject ()=default

Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const

const std::string &	getSession () const

const std::string &	getDescription () const

virtual auto	setName (const std::string &name) -> decltype(this)

virtual auto	setDescription (const std::string &description) -> decltype(this)

virtual	~CDescInfo ()=default

Protected Attributes inherited from CDescInfo
std::string	name_

std::string	session_

std::string	description_

Detailed Description

基于UTimer实现的定时器，通过async提交异步任务，通过future等待异步任务完成支持中途打断，以及支持中途改变每次执行任务的间隔时间不需要run，在init的同时就会启动timer_定周期执行daemonTask

Member Function Documentation

◆ daemonTask()

virtual CVoid GDaemon::daemonTask ( GDaemonParamPtr param )

protectedpure virtual

后台执行函数，间隔interval时间后，执行一次

Parameters

param

Returns

Implemented in CameraGDaemon.

◆ destroy()

CStatus GDaemon::destroy ( )

finalprivatevirtual

释放函数

Reimplemented from CObject.

Here is the call graph for this function:

◆ getInterval()

CMSec GDaemon::getInterval ( ) const

protected

获取设置的延时信息

Returns

◆ init()

CGRAPH_NAMESPACE_BEGIN CStatus GDaemon::init ( )

finalprivatevirtual

初始化函数

Reimplemented from CObject.

Here is the call graph for this function:

◆ modify()

CMSec GDaemon::modify ( GDaemonParamPtr param )

protectedvirtual

修改下一次休眠的时间

Parameters

param

Returns: @notice 返回值 <=0 的时候，不生效。 > 0 的时候，仅针对下一次生效

Friends And Related Function Documentation

◆ GDaemonManager

friend class GDaemonManager

friend

◆ GPipeline

friend class GPipeline

friend

Member Data Documentation

◆ timer_

UTimer GDaemon::timer_

private

The documentation for this class was generated from the following files:

src/GraphCtrl/GraphDaemon/GDaemon.h
src/GraphCtrl/GraphDaemon/GDaemon.cpp
