将一个函数注入成一个GElement，函数可以注入为这个新的GElement的init/run/destroy More...

#include <GFunction.h>

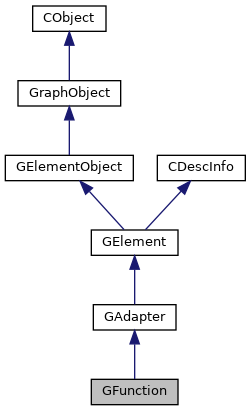

Inheritance diagram for GFunction:

[legend]

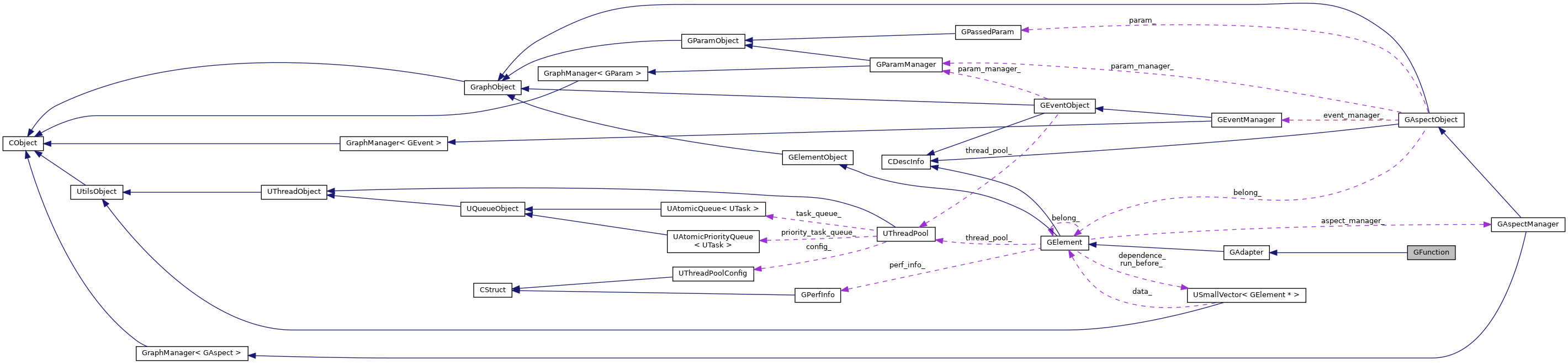

Collaboration diagram for GFunction:

[legend]

Public Member Functions
GFunction *	setFunction (const CFunctionType &type, CGRAPH_CSTATUS_CONST_FUNCTION_REF func)

Public Member Functions inherited from GElement
template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>
GElement *	addGAspect (TParam *param=nullptr)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > = 0>
GElement *	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
GElement *	addEParam (const std::string &key, T *param)

CStatus	addDependGElements (const std::set< GElement * > &elements)

GElement *	setName (const std::string &name) override

GElement *	setLoop (CSize loop)

GElement *	setLevel (CLevel level)

GElement *	setVisible (CBool visible)

GElement *	setBindingIndex (CIndex index)

GElement *	setTimeout (CMSec timeout, GElementTimeoutStrategy strategy=GElementTimeoutStrategy::AS_ERROR)

GElement *	setMacro (CBool macro)

CBool	isGGroup () const

CBool	isGAdaptor () const

CBool	isGNode () const

GElementState	getCurState () const

CStatus	removeDepend (GElement *element)

GElement &	operator-- (int) noexcept

GElement &	operator> (GElement *element)

GElement &	operator& (GElement *element)

GElement &	operator* (CSize loop) noexcept

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN GElementPtr	addGAspect (TParam *param)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > >
GElementPtr	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > >
GElementPtr	addEParam (const std::string &key, T *param)

Public Member Functions inherited from CObject
	CObject ()=default

virtual	~CObject ()=default

Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const

const std::string &	getSession () const

const std::string &	getDescription () const

virtual auto	setDescription (const std::string &description) -> decltype(this)

virtual	~CDescInfo ()=default

Private Member Functions
	GFunction ()

CStatus	init () final

CStatus	run () final

CStatus	destroy () final

Private Attributes
CGRAPH_CSTATUS_FUNCTION	init_function_ = nullptr

CGRAPH_CSTATUS_FUNCTION	run_function_ = nullptr

CGRAPH_CSTATUS_FUNCTION	destroy_function_ = nullptr

Friends
class	GPipeline

Additional Inherited Members
Protected Member Functions inherited from GAdapter
	GAdapter ()

Protected Member Functions inherited from GElement
	GElement ()=default

	~GElement () override

virtual CStatus	prepareRun ()

virtual CStatus	checkRunResult ()

virtual CBool	isHold ()

virtual CBool	isMatch ()

CStatus	crashed (const CException &ex)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
T *	getEParam (const std::string &key)

CIndex	getThreadIndex ()

CBool	isTimeout () const

CIndex	getBindingIndex () const

GElementRelation	getRelation () const

	CGRAPH_NO_ALLOWED_COPY (GElement)

Protected Attributes inherited from CDescInfo
std::string	name_

std::string	session_

std::string	description_

Detailed Description

将一个函数注入成一个GElement，函数可以注入为这个新的GElement的init/run/destroy

Constructor & Destructor Documentation

◆ GFunction()

GFunction::GFunction ( )

explicitprivate

Here is the call graph for this function:

Member Function Documentation

◆ destroy()

CStatus GFunction::destroy ( )

finalprivatevirtual

释放函数

Reimplemented from CObject.

◆ init()

CStatus GFunction::init ( )

finalprivatevirtual

初始化函数

Reimplemented from CObject.

◆ run()

CStatus GFunction::run ( )

finalprivatevirtual

流程处理函数

Implements CObject.

◆ setFunction()

CGRAPH_NAMESPACE_BEGIN GFunctionPtr GFunction::setFunction	(	const CFunctionType &	type,
		CGRAPH_CSTATUS_CONST_FUNCTION_REF	func
	)

设置执行函数具体内容

Parameters

type
func

Returns

Friends And Related Function Documentation

◆ GPipeline

friend class GPipeline

friend

Member Data Documentation

◆ destroy_function_

CGRAPH_CSTATUS_FUNCTION GFunction::destroy_function_ = nullptr

private

◆ init_function_

CGRAPH_CSTATUS_FUNCTION GFunction::init_function_ = nullptr

private

◆ run_function_

CGRAPH_CSTATUS_FUNCTION GFunction::run_function_ = nullptr

private

The documentation for this class was generated from the following files:

src/GraphCtrl/GraphElement/GAdapter/GFunction/GFunction.h
src/GraphCtrl/GraphElement/GAdapter/GFunction/GFunction.cpp
