CGraph所有广义"结点"的基类，可派生出GNode/GGroup/GAdapter类 public: 提供addGAspect加入切面/addDependGElement加入前序依赖/removeDepend删除前序依赖的能力提供setName更新名称/setLoop设置循环次数/setLevel设置优先级/setVisible隐藏当前元素/setBindingIndex设置亲和线程等能力提供setTimeout设置元素执行的超时时间/setMacro设置为微任务的能力提供addEParam添加GElement内部参数(GElementParam，实际上就是GPassedParam) 还额外提供运算符重载：–(setVisible)、>(设置后继依赖)、&(设置后继依赖)、*(setLoop) More...

#include <GElement.h>

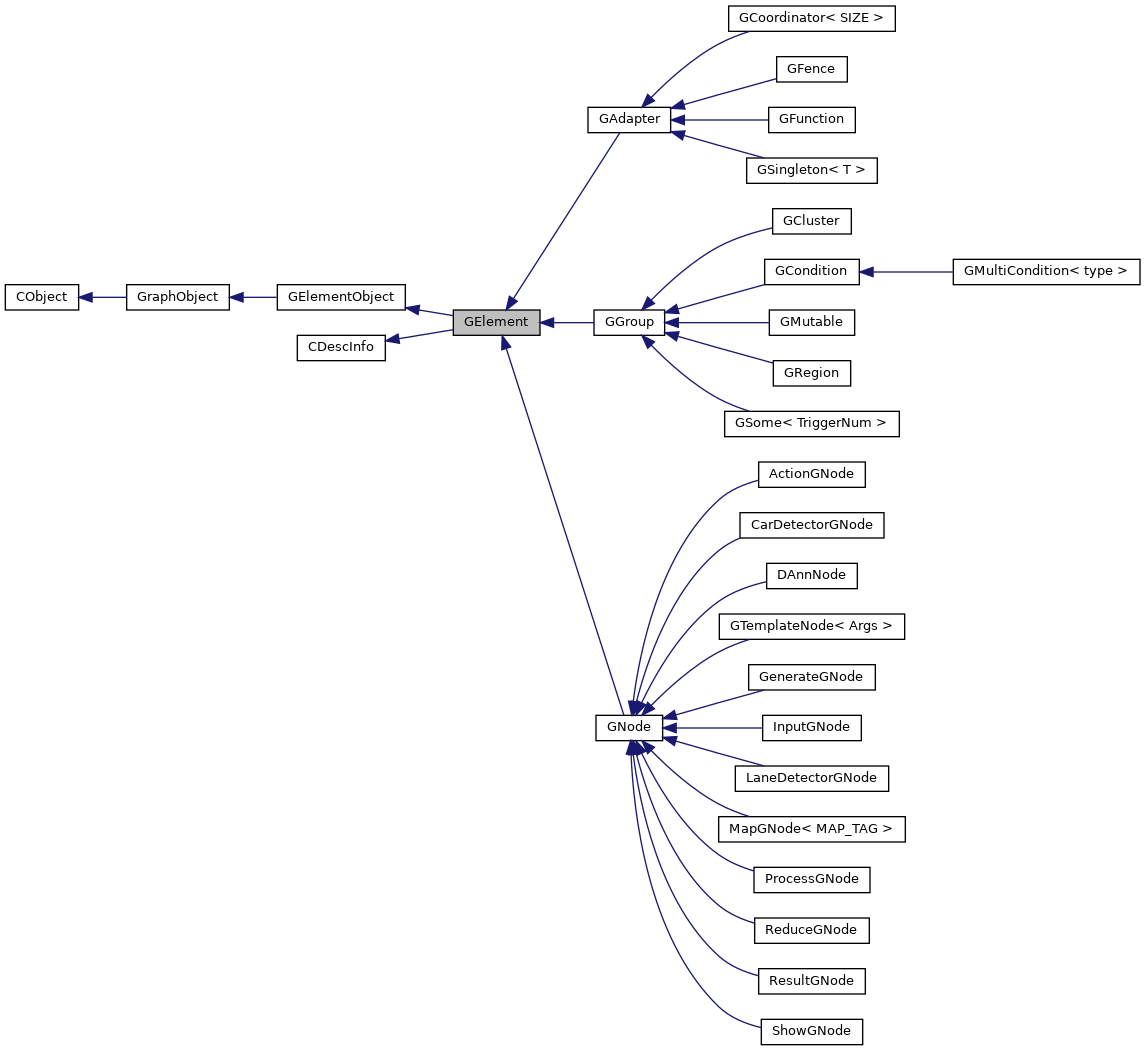

Inheritance diagram for GElement:

[legend]

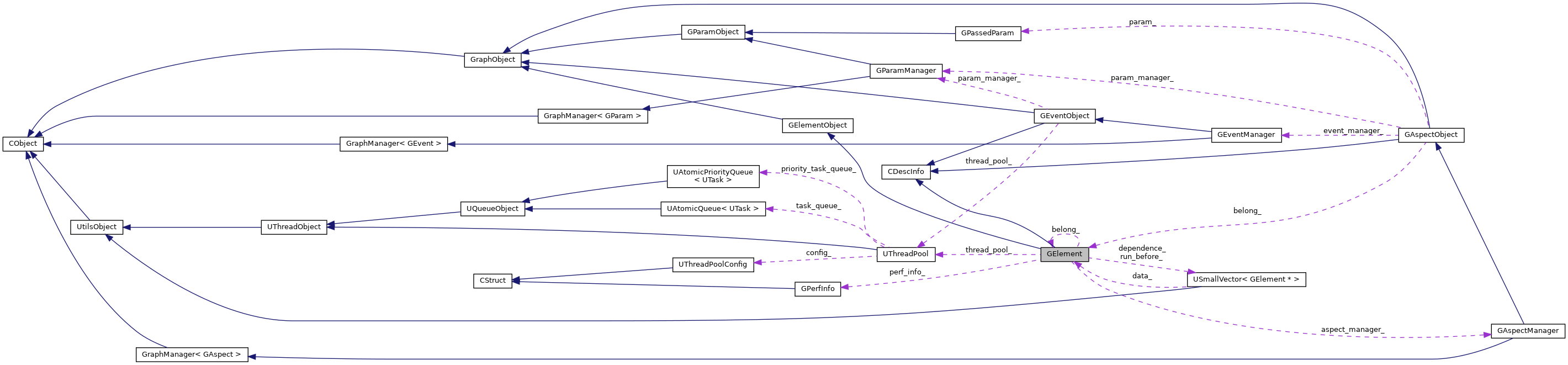

Collaboration diagram for GElement:

[legend]

Public Member Functions
template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>
GElement *	addGAspect (TParam *param=nullptr)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > = 0>
GElement *	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
GElement *	addEParam (const std::string &key, T *param)

CStatus	addDependGElements (const std::set< GElement * > &elements)

GElement *	setName (const std::string &name) override

GElement *	setLoop (CSize loop)

GElement *	setLevel (CLevel level)

GElement *	setVisible (CBool visible)

GElement *	setBindingIndex (CIndex index)

GElement *	setTimeout (CMSec timeout, GElementTimeoutStrategy strategy=GElementTimeoutStrategy::AS_ERROR)

GElement *	setMacro (CBool macro)

CBool	isGGroup () const

CBool	isGAdaptor () const

CBool	isGNode () const

GElementState	getCurState () const

CStatus	removeDepend (GElement *element)

GElement &	operator-- (int) noexcept

GElement &	operator> (GElement *element)

GElement &	operator& (GElement *element)

GElement &	operator* (CSize loop) noexcept

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN GElementPtr	addGAspect (TParam *param)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > >
GElementPtr	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > >
GElementPtr	addEParam (const std::string &key, T *param)

Public Member Functions inherited from CObject
	CObject ()=default

virtual CStatus	init ()

virtual CStatus	run ()=0

virtual CStatus	destroy ()

virtual	~CObject ()=default

Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const

const std::string &	getSession () const

const std::string &	getDescription () const

virtual auto	setDescription (const std::string &description) -> decltype(this)

virtual	~CDescInfo ()=default

Protected Member Functions
	GElement ()=default

	~GElement () override

virtual CStatus	prepareRun ()

virtual CStatus	checkRunResult ()

virtual CBool	isHold ()

virtual CBool	isMatch ()

CStatus	crashed (const CException &ex)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
T *	getEParam (const std::string &key)

CIndex	getThreadIndex ()

CBool	isTimeout () const

CIndex	getBindingIndex () const

GElementRelation	getRelation () const

	CGRAPH_NO_ALLOWED_COPY (GElement)

Private Member Functions
CVoid	refresh ()

CBool	isAsync () const

CBool	isMutable () const

CBool	isMacro () const

virtual CBool	isRegistered () const

CStatus	doAspect (const internal::GAspectType &aspectType, const CStatus &curStatus=CStatus())

virtual CStatus	addElementInfo (const std::set< GElement * > &depends, const std::string &name, CSize loop)

virtual CStatus	addManagers (GParamManagerPtr paramManager, GEventManagerPtr eventManager, GStageManagerPtr stageManager)

CStatus	fatProcessor (const CFunctionType &type)

GElement *	setThreadPool (UThreadPoolPtr ptr)

virtual CVoid	dump (std::ostream &oss)

CVoid	dumpEdge (std::ostream &oss, GElement src, GElement dst, const std::string &label=CGRAPH_EMPTY)

virtual CVoid	dumpElement (std::ostream &oss)

CVoid	dumpElementHeader (std::ostream &oss)

CVoid	dumpPerfInfo (std::ostream &oss)

CVoid	checkYield ()

virtual CBool	isSerializable () const

CStatus	popLastAspect ()

CStatus	asyncRun ()

CStatus	getAsyncResult ()

virtual CStatus	checkSuitable ()

std::vector< GElement * >	getDeepPath (CBool reverse) const

CBool	isDefaultBinding () const

Private Attributes
CBool	done_ { false }

CBool	visible_ { true }

CBool	is_init_ { false }

GElementType	element_type_ { GElementType::ELEMENT }

std::atomic< GElementState >	cur_state_ { GElementState::CREATE }

internal::GElementShape	shape_ { internal::GElementShape::NORMAL }

CSize	loop_ { CGRAPH_DEFAULT_LOOP_TIMES }

CLevel	level_ { CGRAPH_DEFAULT_ELEMENT_LEVEL }

CIndex	binding_index_ { CGRAPH_DEFAULT_BINDING_INDEX }

CMSec	timeout_ { CGRAPH_DEFAULT_ELEMENT_TIMEOUT }

GElementTimeoutStrategy	timeout_strategy_ { GElementTimeoutStrategy::AS_ERROR }

CBool	is_marco_ { false }

GElementParamMap	local_params_

GAspectManagerPtr	aspect_manager_ { nullptr }

UThreadPoolPtr	thread_pool_ { nullptr }

GPerfInfo *	perf_info_ { nullptr }

CBool	is_prepared_ { false }

std::atomic< CSize >	left_depend_ { 0 }

USmallVector< GElement * >	run_before_

USmallVector< GElement * >	dependence_

GElement *	belong_ { nullptr }

std::future< CStatus >	async_result_

std::mutex	yield_mutex_

std::condition_variable	yield_cv_

Friends
class	GNode

class	GGroup

class	GCluster

class	GRegion

class	GCondition

class	GMutable

template<CInt >
class	GSome

template<GMultiConditionType >
class	GMultiCondition

class	GPipeline

class	GElementManager

class	GElementSorter

class	GAdapter

class	GFunction

class	GFence

template<CInt >
class	GCoordinator

template<typename T >
class	GSingleton

class	GEngine

class	GDynamicEngine

class	GTopoEngine

class	GStaticEngine

class	GAspectObject

class	GOptimizer

class	GMaxParaOptimizer

class	GTrimOptimizer

class	GSeparateOptimizer

class	GElementRepository

class	GPerf

Additional Inherited Members
Protected Attributes inherited from CDescInfo
std::string	name_

std::string	session_

std::string	description_

Detailed Description

CGraph所有广义"结点"的基类，可派生出GNode/GGroup/GAdapter类 public: 提供addGAspect加入切面/addDependGElement加入前序依赖/removeDepend删除前序依赖的能力提供setName更新名称/setLoop设置循环次数/setLevel设置优先级/setVisible隐藏当前元素/setBindingIndex设置亲和线程等能力提供setTimeout设置元素执行的超时时间/setMacro设置为微任务的能力提供addEParam添加GElement内部参数(GElementParam，实际上就是GPassedParam) 还额外提供运算符重载：–(setVisible)、>(设置后继依赖)、&(设置后继依赖)、*(setLoop)

protected: 支持设置GAspectManager/GParamManager/GEventManager(后两者通过宏来实现，doxygen分析不出来)

Constructor & Destructor Documentation

◆ GElement()

GElement::GElement ( )

explicitprotecteddefault

构造函数

◆ ~GElement()

CGRAPH_NAMESPACE_BEGIN GElement::~GElement ( )

overrideprotected

析构函数

Member Function Documentation

◆ addDependGElements()

CStatus GElement::addDependGElements ( const std::set< GElement * > & elements )

添加依赖节点信息

Parameters

elements

Returns

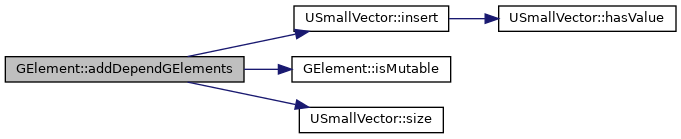

Here is the call graph for this function:

◆ addElementInfo()

CStatus GElement::addElementInfo	(	const std::set< GElement * > &	depends,
		const std::string &	name,
		CSize	loop
	)

privatevirtual

设置element信息

Parameters

depends
name
loop

Returns

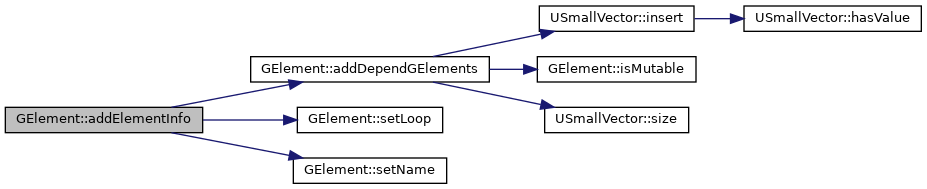

Here is the call graph for this function:

◆ addEParam() [1/2]

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>

GElement* GElement::addEParam	(	const std::string &	key,
		T *	param
	)

添加当前element内部参数

Template Parameters

T

Parameters

key
param

Returns

◆ addEParam() [2/2]

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > >

GElementPtr GElement::addEParam	(	const std::string &	key,
		T *	param
	)

◆ addGAspect() [1/4]

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > = 0>

GElement* GElement::addGAspect ( Args... args )

实现添加模板切面的逻辑

Template Parameters

TAspect
Args

Returns

◆ addGAspect() [2/4]

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > >

GElementPtr GElement::addGAspect ( Args... args )

Here is the call graph for this function:

◆ addGAspect() [3/4]

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >

CGRAPH_NAMESPACE_BEGIN GElementPtr GElement::addGAspect ( TParam * param )

采用懒加载的方式执行，这里不会有并发问题，故不需要采用单例模式了

Here is the call graph for this function:

◆ addGAspect() [4/4]

template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>

GElement* GElement::addGAspect ( TParam * param = nullptr )

实现添加切面的逻辑

Template Parameters

TAspect
TParam

Parameters

param

Returns

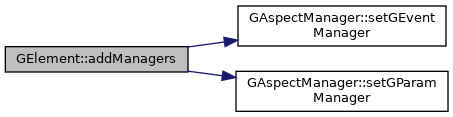

◆ addManagers()

CStatus GElement::addManagers	(	GParamManagerPtr	paramManager,
		GEventManagerPtr	eventManager,
		GStageManagerPtr	stageManager
	)

privatevirtual

设置manager信息

Parameters

paramManager
eventManager
stageManager

Returns

Reimplemented in GGroup, GRegion, and GSingleton< T >.

Here is the call graph for this function:

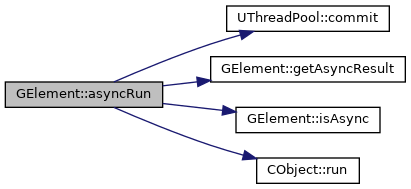

◆ asyncRun()

CStatus GElement::asyncRun ( )

private

异步执行

Returns

Here is the call graph for this function:

◆ CGRAPH_NO_ALLOWED_COPY()

GElement::CGRAPH_NO_ALLOWED_COPY ( GElement )

protected

◆ checkRunResult()

CStatus GElement::checkRunResult ( )

protectedvirtual

run() 方法完成之后（包含所有循环次数和 isHold逻辑）的校验函数

Returns: @notice 不建议在异步element中使用

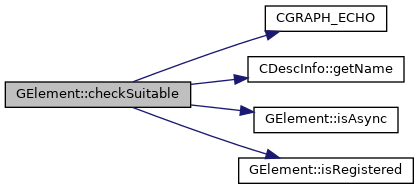

◆ checkSuitable()

CStatus GElement::checkSuitable ( )

privatevirtual

判断当前节点，是否符合执行逻辑。主要用于init的早期阶段

Returns

Reimplemented in GSome< TriggerNum >, GFence, and GCoordinator< SIZE >.

Here is the call graph for this function:

◆ checkYield()

CVoid GElement::checkYield ( )

private

判断是否进入 yield状态。如果是的话，则等待恢复。未进入yield状态，则继续运行

Returns

◆ crashed()

CStatus GElement::crashed ( const CException & ex )

protected

崩溃流程处理

Parameters

ex

Returns

◆ doAspect()

CStatus GElement::doAspect	(	const internal::GAspectType &	aspectType,
		const CStatus &	curStatus = `CStatus()`
	)

private

执行切面逻辑

Parameters

aspectType
curStatus

Returns

Here is the call graph for this function:

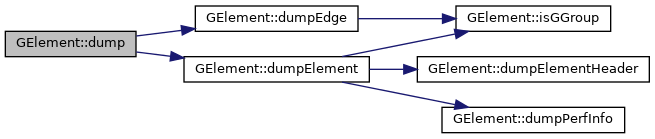

◆ dump()

CVoid GElement::dump ( std::ostream & oss )

privatevirtual

graphviz dump 逻辑

Parameters

oss

Returns

Reimplemented in GSome< TriggerNum >, GRegion, GCondition, and GCluster.

Here is the call graph for this function:

◆ dumpEdge()

CVoid GElement::dumpEdge	(	std::ostream &	oss,
		GElement *	src,
		GElement *	dst,
		const std::string &	label = `CGRAPH_EMPTY`
	)

private

graphviz dump 边逻辑

Parameters

oss
src	表示开始的元素
dst	表示结束的元素
label

Returns

Here is the call graph for this function:

◆ dumpElement()

CVoid GElement::dumpElement ( std::ostream & oss )

privatevirtual

graphviz dump 点逻辑

Parameters

oss

Reimplemented in GFence, and GCoordinator< SIZE >.

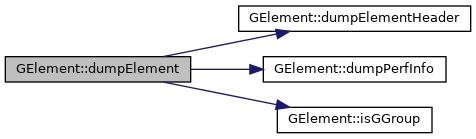

Here is the call graph for this function:

◆ dumpElementHeader()

CVoid GElement::dumpElementHeader ( std::ostream & oss )

private

dump 当前element的header。主要就是为了代码

Parameters

oss

Returns

◆ dumpPerfInfo()

CVoid GElement::dumpPerfInfo ( std::ostream & oss )

private

graphviz dump perf逻辑

Parameters

oss

Returns

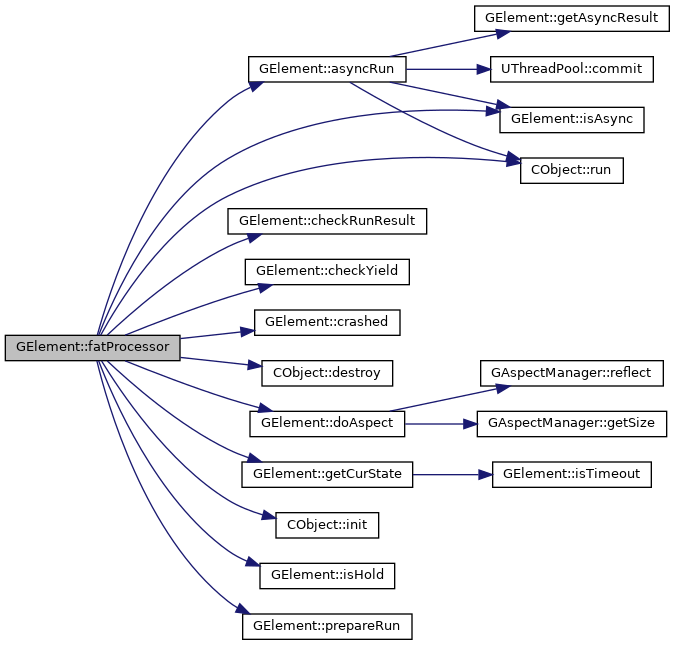

◆ fatProcessor()

CStatus GElement::fatProcessor ( const CFunctionType & type )

private

包含切面相关功能的函数，fat取自fatjar的意思

Parameters

type

Returns

如果当前的 element 因为被remove等原因，变成不可见的状态则不运行。但不是实际删除当前节点信息

第一次执行的时候，预先执行一下 prepareRun方法

执行带切面的run方法

在实际run结束之后，首先需要判断一下是否进入yield状态了。接下来，如果状态是ok的，并且被条件hold住，则循环执行默认所有element的isHold条件均为false，即不hold，即执行一次可以根据需求，对任意element类型，添加特定的isHold条件

Here is the call graph for this function:

◆ getAsyncResult()

CStatus GElement::getAsyncResult ( )

private

异步获取结果信息

Returns

◆ getBindingIndex()

CIndex GElement::getBindingIndex ( ) const

protected

获取绑定线程id信息

Returns: @notice 不同的group类型，获取 binding index 的方式不同

◆ getCurState()

GElementState GElement::getCurState ( ) const

获取当前节点状态信息

Returns

如果有超时逻辑的话，优先判断否则就是当前的状态

Here is the call graph for this function:

◆ getDeepPath()

GElementPtrArr GElement::getDeepPath ( CBool reverse ) const

private

获取链路所有的 belong信息

Parameters

reverse

Returns

◆ getEParam()

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > >

T * GElement::getEParam ( const std::string & key )

protected

获取当前element内部参数

Template Parameters

T

Parameters

key

Returns

◆ getRelation()

GElementRelation GElement::getRelation ( ) const

protected

获取当前节点的相关关系信息，包含前驱、后继、从属关系

Returns

Here is the call graph for this function:

◆ getThreadIndex()

CIndex GElement::getThreadIndex ( )

protected

获取执行线程对应的信息

Returns: @notice 启动线程返回-1（CGRAPH_MAIN_THREAD_ID），辅助线程返回-2（CGRAPH_SECONDARY_THREAD_COMMON_ID），主线程返回线程index

Here is the call graph for this function:

◆ isAsync()

CBool GElement::isAsync ( ) const

private

判定当前的内容，是否需要异步执行

Returns

◆ isDefaultBinding()

CBool GElement::isDefaultBinding ( ) const

private

判断是否是默认绑定策略

Returns

◆ isGAdaptor()

CBool GElement::isGAdaptor ( ) const

当前element是否是一个 adaptor逻辑

Returns

◆ isGGroup()

CBool GElement::isGGroup ( ) const

当前element是否是一个 group逻辑

Returns

◆ isGNode()

CBool GElement::isGNode ( ) const

当前element是否是一个 node逻辑

Returns

◆ isHold()

CBool GElement::isHold ( )

protectedvirtual

是否持续进行默认为false，表示执行且仅执行一次

Returns

默认仅返回false 可以根据自己逻辑，来实现"持续循环执行，直到特定条件出现的时候停止"的逻辑

Reimplemented in GSome< TriggerNum >, and GSingleton< T >.

◆ isMacro()

CBool GElement::isMacro ( ) const

private

判断当前是否是微节点

Returns

◆ isMatch()

CBool GElement::isMatch ( )

protectedvirtual

用于在MultiCondition中被判定，是否可以执行。

Returns: @notice 默认返回false，不执行

默认仅返回false 主要面对写入 MultiCondition 的时候，做判断当前element是否被执行

Reimplemented in GSingleton< T >.

◆ isMutable()

CBool GElement::isMutable ( ) const

private

判断当前是否可以在运行时更新图结构逻辑

Returns

◆ isRegistered()

CBool GElement::isRegistered ( ) const

privatevirtual

判断当前element是否已经被注册到特定pipeline中了。避免反复注册的问题

Returns

Reimplemented in GSingleton< T >.

◆ isSerializable()

CBool GElement::isSerializable ( ) const

privatevirtual

判断当前元素，是否可以线性执行。默认返回true

Returns

Reimplemented in GMutable, GGroup, GMultiCondition< type >, GSome< TriggerNum >, and GRegion.

◆ isTimeout()

CBool GElement::isTimeout ( ) const

protected

判断当前是否超时

Returns

判断的标准是：

如果当前节点超时，则认定为超时
如果当前节点所在的group超时，则也认定为超时

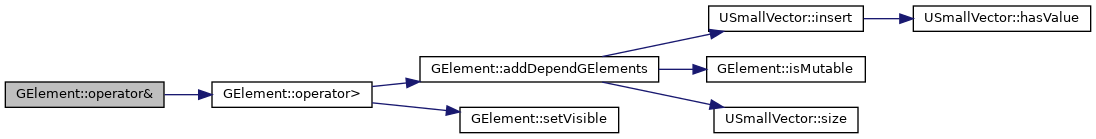

◆ operator&()

GElementRef GElement::operator& ( GElement * element )

Here is the call graph for this function:

◆ operator*()

GElement & GElement::operator* ( CSize loop )

noexcept

Here is the call graph for this function:

◆ operator--()

GElementRef GElement::operator-- ( int )

noexcept

实现连续注册的语法糖，形如： (*a)-->b (*b)-->d; (*c)-->d; (*b)*2;

Returns

Here is the call graph for this function:

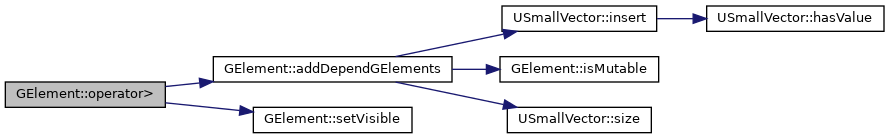

◆ operator>()

GElementRef GElement::operator> ( GElement * element )

Here is the call graph for this function:

◆ popLastAspect()

CStatus GElement::popLastAspect ( )

private

弹出一个最后一个切面

Returns

Here is the call graph for this function:

◆ prepareRun()

CStatus GElement::prepareRun ( )

protectedvirtual

init()后，第一次执行run之前，会执行的函数

Returns: @notice 主要为了弥补init()方法，不是并发执行的缺陷。也属于单次执行的函数

◆ refresh()

CVoid GElement::refresh ( )

private

使用者请勿复写private中的函数恢复运行最初的信息

Returns

Here is the call graph for this function:

◆ removeDepend()

CStatus GElement::removeDepend ( GElement * element )

删除一个依赖的节点信息

Parameters

element

Returns: @notice 删除依赖关系之后，可能会出现 dag 无法连通的情况

Here is the call graph for this function:

◆ setBindingIndex()

GElementPtr GElement::setBindingIndex ( CIndex index )

设定绑定的线程id

Parameters

index，需要绑定的 thread id 信息

Returns: @notice 本接口仅保证绑定线程优先调度，但不保证最终一定在绑定线程上执行。若不了解调度机制，不建议使用本接口，否则可能导致运行时阻塞。

由于内部有调度机制，不保证绑定线程后，一定在固定线程上执行。仅保证优先考虑使用绑定线程执行

◆ setLevel()

GElementPtr GElement::setLevel ( CLevel level )

设置level信息，用于控制init和destroy方法的执行顺序 level值越低，函数越先执行

Parameters

level

Returns

◆ setLoop()

GElementPtr GElement::setLoop ( CSize loop )

设置循环次数

Parameters

loop

Returns

◆ setMacro()

GElementPtr GElement::setMacro ( CBool macro )

设置为微任务

Parameters

macro

Returns

Here is the call graph for this function:

◆ setName()

GElementPtr GElement::setName ( const std::string & name )

overridevirtual

设置name信息

Parameters

name

Returns

Reimplemented from CDescInfo.

◆ setThreadPool()

GElementPtr GElement::setThreadPool ( UThreadPoolPtr ptr )

private

设置线程池信息

Parameters

ptr

Returns

◆ setTimeout()

GElementPtr GElement::setTimeout	(	CMSec	timeout,
		GElementTimeoutStrategy	strategy = `GElementTimeoutStrategy::AS_ERROR`
	)

设定当前算子的超时时间

Parameters

timeout	超时时间
strategy	当超时的时候，处理的策略

Returns

◆ setVisible()

GElementPtr GElement::setVisible ( CBool visible )

设置visible信息。当 visible = false 的时候，算子实际不执行

Parameters

visible

Returns

Friends And Related Function Documentation

◆ GAdapter

friend class GAdapter

friend

◆ GAspectObject

friend class GAspectObject

friend

◆ GCluster

friend class GCluster

friend

◆ GCondition

friend class GCondition

friend

◆ GCoordinator

template<CInt >

friend class GCoordinator

friend

◆ GDynamicEngine

friend class GDynamicEngine

friend

◆ GElementManager

friend class GElementManager

friend

◆ GElementRepository

friend class GElementRepository

friend

◆ GElementSorter

friend class GElementSorter

friend

◆ GEngine

friend class GEngine

friend

◆ GFence

friend class GFence

friend

◆ GFunction

friend class GFunction

friend

◆ GGroup

friend class GGroup

friend

◆ GMaxParaOptimizer

friend class GMaxParaOptimizer

friend

◆ GMultiCondition

template<GMultiConditionType >

friend class GMultiCondition

friend

◆ GMutable

friend class GMutable

friend

◆ GNode

friend class GNode

friend

◆ GOptimizer

friend class GOptimizer

friend

◆ GPerf

friend class GPerf

friend

◆ GPipeline

friend class GPipeline

friend

◆ GRegion

friend class GRegion

friend

◆ GSeparateOptimizer

friend class GSeparateOptimizer

friend

◆ GSingleton

template<typename T >

friend class GSingleton

friend

◆ GSome

template<CInt >

friend class GSome

friend

◆ GStaticEngine

friend class GStaticEngine

friend

◆ GTopoEngine

friend class GTopoEngine

friend

◆ GTrimOptimizer

friend class GTrimOptimizer

friend

Member Data Documentation

◆ aspect_manager_

GAspectManagerPtr GElement::aspect_manager_ { nullptr }

private

◆ async_result_

std::future<CStatus> GElement::async_result_

private

异步执行相关信息

◆ belong_

GElement* GElement::belong_ { nullptr }

private

◆ binding_index_

CIndex GElement::binding_index_ { CGRAPH_DEFAULT_BINDING_INDEX }

private

◆ cur_state_

std::atomic<GElementState> GElement::cur_state_ { GElementState::CREATE }

private

◆ dependence_

USmallVector<GElement *> GElement::dependence_

private

◆ done_

CBool GElement::done_ { false }

private

状态相关信息

◆ element_type_

GElementType GElement::element_type_ { GElementType::ELEMENT }

private

◆ is_init_

CBool GElement::is_init_ { false }

private

◆ is_marco_

CBool GElement::is_marco_ { false }

private

◆ is_prepared_

CBool GElement::is_prepared_ { false }

private

◆ left_depend_

std::atomic<CSize> GElement::left_depend_ { 0 }

private

图相关信息

◆ level_

CLevel GElement::level_ { CGRAPH_DEFAULT_ELEMENT_LEVEL }

private

◆ local_params_

GElementParamMap GElement::local_params_

private

执行期间相关信息

◆ loop_

CSize GElement::loop_ { CGRAPH_DEFAULT_LOOP_TIMES }

private

配置相关信息

◆ perf_info_

GPerfInfo* GElement::perf_info_ { nullptr }

private

◆ run_before_

USmallVector<GElement *> GElement::run_before_

private

◆ shape_

internal::GElementShape GElement::shape_ { internal::GElementShape::NORMAL }

private

◆ thread_pool_

UThreadPoolPtr GElement::thread_pool_ { nullptr }

private

◆ timeout_

CMSec GElement::timeout_ { CGRAPH_DEFAULT_ELEMENT_TIMEOUT }

private

◆ timeout_strategy_

GElementTimeoutStrategy GElement::timeout_strategy_ { GElementTimeoutStrategy::AS_ERROR }

private

◆ visible_

CBool GElement::visible_ { true }

private

◆ yield_cv_

std::condition_variable GElement::yield_cv_

private

◆ yield_mutex_

std::mutex GElement::yield_mutex_

private

The documentation for this class was generated from the following files:

src/GraphCtrl/GraphElement/GElement.h
src/GraphCtrl/GraphElement/GElement.cpp
src/GraphCtrl/GraphElement/GElement.inl

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GElement()

◆ ~GElement()

Member Function Documentation

◆ addDependGElements()

◆ addElementInfo()

◆ addEParam() [1/2]

◆ addEParam() [2/2]

◆ addGAspect() [1/4]

◆ addGAspect() [2/4]

◆ addGAspect() [3/4]

◆ addGAspect() [4/4]

◆ addManagers()

◆ asyncRun()

◆ CGRAPH_NO_ALLOWED_COPY()

◆ checkRunResult()

◆ checkSuitable()

◆ checkYield()

◆ crashed()

◆ doAspect()

◆ dump()

◆ dumpEdge()

◆ dumpElement()

◆ dumpElementHeader()

◆ dumpPerfInfo()

◆ fatProcessor()

◆ getAsyncResult()

◆ getBindingIndex()

◆ getCurState()

◆ getDeepPath()

◆ getEParam()

◆ getRelation()

◆ getThreadIndex()

◆ isAsync()

◆ isDefaultBinding()

◆ isGAdaptor()

◆ isGGroup()

◆ isGNode()

◆ isHold()

◆ isMacro()

◆ isMatch()

◆ isMutable()

◆ isRegistered()

◆ isSerializable()

◆ isTimeout()

◆ operator&()

◆ operator*()

◆ operator--()

◆ operator>()

◆ popLastAspect()

◆ prepareRun()

◆ refresh()

◆ removeDepend()

◆ setBindingIndex()

◆ setLevel()

◆ setLoop()

◆ setMacro()

◆ setName()

◆ setThreadPool()

◆ setTimeout()

◆ setVisible()

Friends And Related Function Documentation

◆ GAdapter

◆ GAspectObject

◆ GCluster

◆ GCondition

◆ GCoordinator

◆ GDynamicEngine

◆ GElementManager

◆ GElementRepository

◆ GElementSorter

◆ GEngine

◆ GFence
