线程池中实际使用的线程的基类，有以下关键成员： UAtomicQueue<UTask>* pool_task_queue_：存储当前线程待执行的普通任务； UAtomicPriorityQueue<UTask>* pool_priority_task_queue_：优先级队列的任务，仅辅助线程可以执行； CInt type_：表明当前线程是普通线程还是辅助线程 UThreadPoolConfigPtr config_：当前线程所属的线程池的配置 std::thread thread_：标准线程对象，实际执行UTask任务的载体 More...

#include <UThreadBase.h>

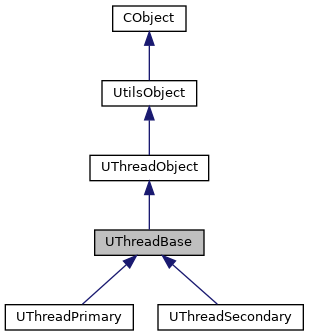

Inheritance diagram for UThreadBase:

[legend]

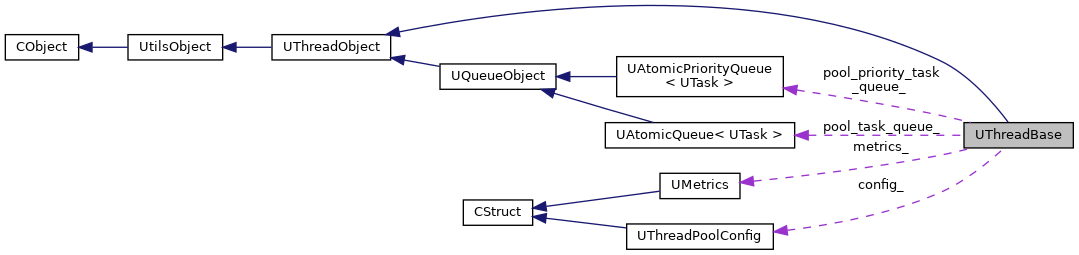

Collaboration diagram for UThreadBase:

[legend]

Protected Member Functions
	UThreadBase ()

	~UThreadBase () override

CStatus	destroy () override

virtual CBool	popPoolTask (UTaskRef task)

virtual CBool	popPoolTask (UTaskArrRef tasks)

CVoid	runTask (UTask &task)

CVoid	runTasks (UTaskArr &tasks)

CVoid	reset ()

virtual CVoid	processTask ()=0

virtual CVoid	processTasks ()=0

CVoid	loopProcess ()

CVoid	setSchedParam ()

CVoid	setAffinity (int index)

Protected Member Functions inherited from UThreadObject
CStatus	run () override

Protected Member Functions inherited from UtilsObject
CStatus	run () override

Protected Attributes
CBool	done_

CBool	is_init_

CBool	is_running_

CInt	type_ = 0

CULong	total_task_num_ = 0

UAtomicQueue< UTask > *	pool_task_queue_

UAtomicPriorityQueue< UTask > *	pool_priority_task_queue_

UThreadPoolConfigPtr	config_ = nullptr

UMetrics	metrics_

std::thread	thread_

std::mutex	mutex_

std::condition_variable	cv_

Static Private Member Functions
static CInt	calcPolicy (int policy)

static CInt	calcPriority (int priority)

Additional Inherited Members
Public Member Functions inherited from CObject
	CObject ()=default

virtual CStatus	init ()

virtual	~CObject ()=default

Detailed Description

线程池中实际使用的线程的基类，有以下关键成员： UAtomicQueue<UTask>* pool_task_queue_：存储当前线程待执行的普通任务； UAtomicPriorityQueue<UTask>* pool_priority_task_queue_：优先级队列的任务，仅辅助线程可以执行； CInt type_：表明当前线程是普通线程还是辅助线程 UThreadPoolConfigPtr config_：当前线程所属的线程池的配置 std::thread thread_：标准线程对象，实际执行UTask任务的载体

Constructor & Destructor Documentation

◆ UThreadBase()

UThreadBase::UThreadBase ( )

inlineexplicitprotected

◆ ~UThreadBase()

UThreadBase::~UThreadBase ( )

inlineoverrideprotected

Here is the call graph for this function:

Member Function Documentation

◆ calcPolicy()

static CInt UThreadBase::calcPolicy ( int policy )

inlinestaticprivate

设定计算线程调度策略信息，非OTHER/RR/FIFO对应数值，统一返回OTHER类型

Parameters

policy

Returns

◆ calcPriority()

static CInt UThreadBase::calcPriority ( int priority )

inlinestaticprivate

设定线程优先级信息超过[min,max]范围，统一设置为min值

Parameters

priority

Returns

◆ destroy()

CStatus UThreadBase::destroy ( )

inlineoverrideprotectedvirtual

释放函数

Reimplemented from CObject.

Here is the call graph for this function:

◆ loopProcess()

CVoid UThreadBase::loopProcess ( )

inlineprotected

循环处理任务

Returns

Here is the call graph for this function:

◆ popPoolTask() [1/2]

virtual CBool UThreadBase::popPoolTask ( UTaskArrRef tasks )

inlineprotectedvirtual

从线程池的队列中中，按照指定的max_pool_batch_size_获取批量任务

Parameters

tasks

Returns

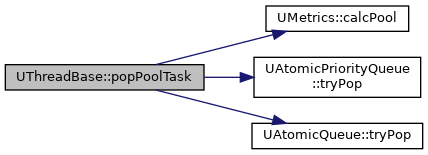

Here is the call graph for this function:

◆ popPoolTask() [2/2]

virtual CBool UThreadBase::popPoolTask ( UTaskRef task )

inlineprotectedvirtual

从线程池的队列中，获取任务

Parameters

task

Returns

Here is the call graph for this function:

◆ processTask()

virtual CVoid UThreadBase::processTask ( )

protectedpure virtual

执行单个消息

Returns

Implemented in UThreadSecondary, and UThreadPrimary.

◆ processTasks()

virtual CVoid UThreadBase::processTasks ( )

protectedpure virtual

获取批量执行task信息

Implemented in UThreadSecondary, and UThreadPrimary.

◆ reset()

CVoid UThreadBase::reset ( )

inlineprotected

清空所有任务内容

◆ runTask()

CVoid UThreadBase::runTask ( UTask & task )

inlineprotected

执行单个任务

Parameters

task

◆ runTasks()

CVoid UThreadBase::runTasks ( UTaskArr & tasks )

inlineprotected

批量执行任务

Parameters

tasks

◆ setAffinity()

CVoid UThreadBase::setAffinity ( int index )

inlineprotected

设置线程亲和性，仅针对linux系统

Here is the call graph for this function:

◆ setSchedParam()

CVoid UThreadBase::setSchedParam ( )

inlineprotected

设置线程优先级，仅针对非windows平台使用

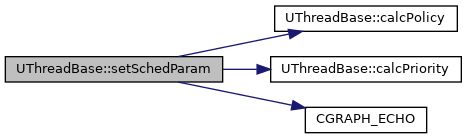

Here is the call graph for this function:

Member Data Documentation

◆ config_

UThreadPoolConfigPtr UThreadBase::config_ = nullptr

protected

◆ cv_

std::condition_variable UThreadBase::cv_

protected

◆ done_

CBool UThreadBase::done_

protected

◆ is_init_

CBool UThreadBase::is_init_

protected

◆ is_running_

CBool UThreadBase::is_running_

protected

◆ metrics_

UMetrics UThreadBase::metrics_

protected

◆ mutex_

std::mutex UThreadBase::mutex_

protected

◆ pool_priority_task_queue_

UAtomicPriorityQueue<UTask>* UThreadBase::pool_priority_task_queue_

protected

◆ pool_task_queue_

UAtomicQueue<UTask>* UThreadBase::pool_task_queue_

protected

◆ thread_

std::thread UThreadBase::thread_

protected

◆ total_task_num_

CULong UThreadBase::total_task_num_ = 0

protected

◆ type_

CInt UThreadBase::type_ = 0

protected

The documentation for this class was generated from the following file:

src/UtilsCtrl/ThreadPool/Thread/UThreadBase.h
