主线程类，核心成员是primary_queue_和secondary_queue_ 自身准备执行任务时，优先从primary_queue_取，其次从secondary_queue_取自身准备窃取任务时，优先从secondary_queue_，其次从primary_queue_取这样设计的好处是A线程的执行和B线程从A线程窃取这两个异步事件发生竞争的可能性大大减小，从而提高性能主线程所属的主线程池pool_threads_的指针也记录在每个主线程对象里面，在窃取相邻线程任务、安全检查等会用到 More...

#include <UThreadPrimary.h>

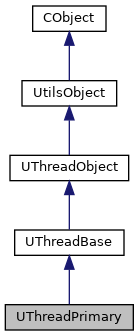

Inheritance diagram for UThreadPrimary:

[legend]

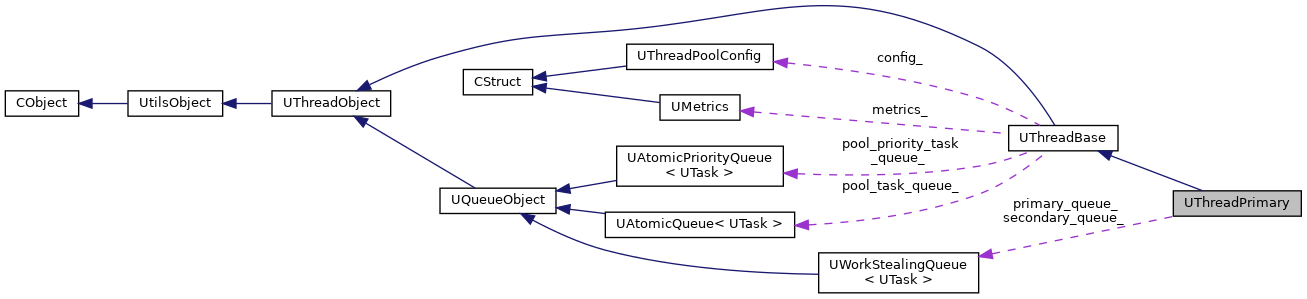

Collaboration diagram for UThreadPrimary:

[legend]

Protected Member Functions
	UThreadPrimary ()

CStatus	init () override

CStatus	setThreadPoolInfo (int index, UAtomicQueue< UTask > poolTaskQueue, std::vector< UThreadPrimary > *poolThreads, UThreadPoolConfigPtr config)

CStatus	run () final

CVoid	processTask () override
	按照以下顺序拿任务到本线程执行(如果都没拿到就fatWait一直等着)：本地任务(优先primary_queue_，其次secondary_queue_) -> 偷任务(相邻一定范围内的其他主线程，优先secondary_queue_，其次primary_queue_) -> 公共任务队列(pool_task_queue_) -> 优先级任务队列(pool_priority_task_queue_，只有辅助线程会走到这个分支) More...

CVoid	processTasks () override

CVoid	fatWait ()

CVoid	pushTask (UTask &&task)

CVoid	pushTask (UTask &&task, CBool enable, CBool lockable)

CBool	popTask (UTaskRef task)

CBool	popTask (UTaskArrRef tasks)

CBool	stealTask (UTaskRef task)

CBool	stealTask (UTaskArrRef tasks)

CVoid	buildStealTargets ()

	~UThreadPrimary () override

Protected Member Functions inherited from UThreadBase
	UThreadBase ()

	~UThreadBase () override

CStatus	destroy () override

virtual CBool	popPoolTask (UTaskRef task)

virtual CBool	popPoolTask (UTaskArrRef tasks)

CVoid	runTask (UTask &task)

CVoid	runTasks (UTaskArr &tasks)

CVoid	reset ()

CVoid	loopProcess ()

CVoid	setSchedParam ()

CVoid	setAffinity (int index)

Protected Member Functions inherited from UThreadObject
CStatus	run () override

Protected Member Functions inherited from UtilsObject
CStatus	run () override

Private Attributes
CInt	index_

CInt	cur_empty_epoch_ = 0

UWorkStealingQueue< UTask >	primary_queue_

UWorkStealingQueue< UTask >	secondary_queue_

std::vector< UThreadPrimary * > *	pool_threads_

std::vector< CInt >	steal_targets_

Friends
class	UThreadPool

class	CAllocator

Additional Inherited Members
Public Member Functions inherited from CObject
	CObject ()=default

virtual	~CObject ()=default

Protected Attributes inherited from UThreadBase
CBool	done_

CBool	is_init_

CBool	is_running_

CInt	type_ = 0

CULong	total_task_num_ = 0

UAtomicQueue< UTask > *	pool_task_queue_

UAtomicPriorityQueue< UTask > *	pool_priority_task_queue_

UThreadPoolConfigPtr	config_ = nullptr

UMetrics	metrics_

std::thread	thread_

std::mutex	mutex_

std::condition_variable	cv_

Detailed Description

主线程类，核心成员是primary_queue_和secondary_queue_ 自身准备执行任务时，优先从primary_queue_取，其次从secondary_queue_取自身准备窃取任务时，优先从secondary_queue_，其次从primary_queue_取这样设计的好处是A线程的执行和B线程从A线程窃取这两个异步事件发生竞争的可能性大大减小，从而提高性能主线程所属的主线程池pool_threads_的指针也记录在每个主线程对象里面，在窃取相邻线程任务、安全检查等会用到

Constructor & Destructor Documentation

◆ UThreadPrimary()

UThreadPrimary::UThreadPrimary ( )

inlineexplicitprotected

◆ ~UThreadPrimary()

UThreadPrimary::~UThreadPrimary ( )

inlineoverrideprotected

在开启展示宏的时候，会在主线程退出的时候，打印相关内容默认情况下，不会开启

Here is the call graph for this function:

Member Function Documentation

◆ buildStealTargets()

CVoid UThreadPrimary::buildStealTargets ( )

inlineprotected

构造 steal 范围的 target，避免每次盗取的时候，重复计算

Returns

Here is the call graph for this function:

◆ fatWait()

CVoid UThreadPrimary::fatWait ( )

inlineprotected

如果总是进入无task的状态，则开始休眠休眠一定时间后，然后恢复执行状态，避免出现异常情况导致无法唤醒

Here is the call graph for this function:

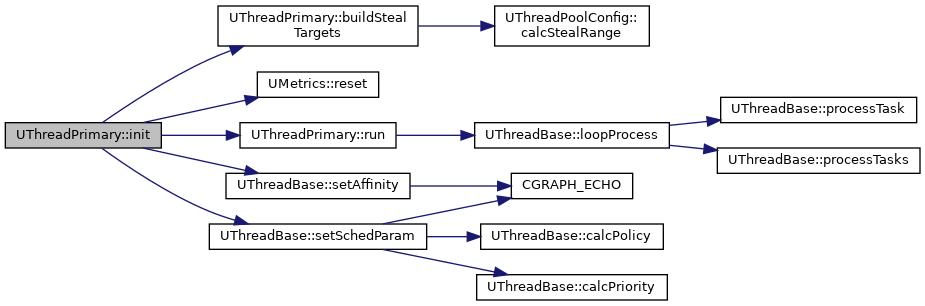

◆ init()

CStatus UThreadPrimary::init ( )

inlineoverrideprotectedvirtual

初始化函数

Reimplemented from CObject.

Here is the call graph for this function:

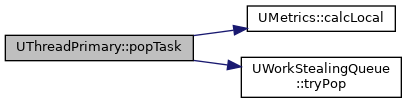

◆ popTask() [1/2]

CBool UThreadPrimary::popTask ( UTaskArrRef tasks )

inlineprotected

从本地弹出一批任务

Parameters

tasks

Returns

Here is the call graph for this function:

◆ popTask() [2/2]

CBool UThreadPrimary::popTask ( UTaskRef task )

inlineprotected

从本地弹出一个任务

Parameters

task

Returns

Here is the call graph for this function:

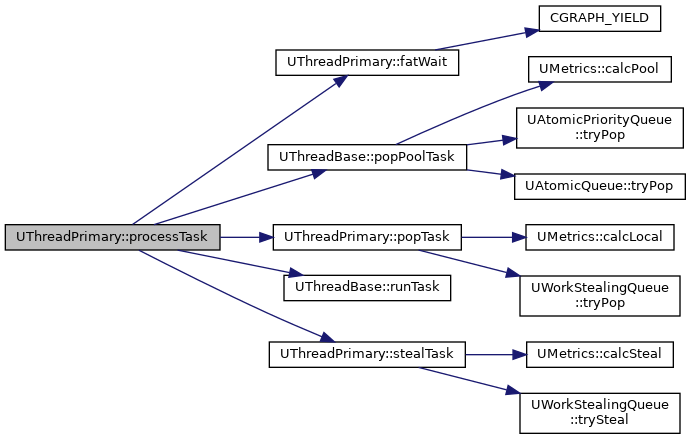

◆ processTask()

CVoid UThreadPrimary::processTask ( )

inlineoverrideprotectedvirtual

按照以下顺序拿任务到本线程执行(如果都没拿到就fatWait一直等着)：本地任务(优先primary_queue_，其次secondary_queue_) -> 偷任务(相邻一定范围内的其他主线程，优先secondary_queue_，其次primary_queue_) -> 公共任务队列(pool_task_queue_) -> 优先级任务队列(pool_priority_task_queue_，只有辅助线程会走到这个分支)

Returns: CVoid

Implements UThreadBase.

Here is the call graph for this function:

◆ processTasks()

CVoid UThreadPrimary::processTasks ( )

inlineoverrideprotectedvirtual

获取批量执行task信息

Implements UThreadBase.

Here is the call graph for this function:

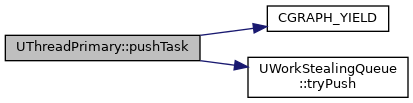

◆ pushTask() [1/2]

CVoid UThreadPrimary::pushTask ( UTask && task )

inlineprotected

依次push到任一队列里。如果都失败，则yield，然后重新push

Parameters

task

Returns

Here is the call graph for this function:

◆ pushTask() [2/2]

CVoid UThreadPrimary::pushTask	(	UTask &&	task,
		CBool	enable,
		CBool	lockable
	)

inlineprotected

写入 task信息，是否上锁由入参enable和lockable决定

Parameters

task
enable	确认是否有锁
lockable	true 的时候需要上锁，false 的时候会解锁

Returns

Here is the call graph for this function:

◆ run()

CStatus UThreadPrimary::run ( )

inlinefinalprotectedvirtual

线程执行函数

Returns

线程池中任何一个primary线程为null都不可以执行防止线程初始化失败的情况，导致的崩溃理论不会走到这个判断逻辑里面

Implements CObject.

Here is the call graph for this function:

◆ setThreadPoolInfo()

CStatus UThreadPrimary::setThreadPoolInfo	(	int	index,
		UAtomicQueue< UTask > *	poolTaskQueue,
		std::vector< UThreadPrimary * > *	poolThreads,
		UThreadPoolConfigPtr	config
	)

inlineprotected

注册线程池相关内容，需要在init之前使用

Parameters

index
poolTaskQueue
poolThreads
config

◆ stealTask() [1/2]

CBool UThreadPrimary::stealTask ( UTaskArrRef tasks )

inlineprotected

从其他线程盗取一批任务

Parameters

tasks

Returns

在这里，我们对模型进行了简化。实现的思路是：尝试从邻居主线程(先secondary，再primary)中，获取 x(=max_steal_batch_size_) 个task，如果从某一个邻居中，获取了 y(<=x) 个task，则也终止steal的流程且如果如果有一次批量steal成功，就认定成功

Here is the call graph for this function:

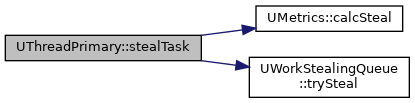

◆ stealTask() [2/2]

CBool UThreadPrimary::stealTask ( UTaskRef task )

inlineprotected

从其他线程窃取一个任务

Parameters

task

Returns

线程池还未初始化完毕的时候，无法进行steal。确保程序安全运行。

窃取的时候，仅从相邻的primary线程中窃取待窃取相邻的数量，不能超过默认primary线程数 steal_targets_在init的时候就已经计算好了

从线程中周围的thread中，窃取任务。如果成功，则返回true，并且执行任务。 steal 的时候，先从第二个队列里偷，从而降低触碰锁的概率

Here is the call graph for this function:

Friends And Related Function Documentation

◆ CAllocator

friend class CAllocator

friend

◆ UThreadPool

friend class UThreadPool

friend

Member Data Documentation

◆ cur_empty_epoch_

CInt UThreadPrimary::cur_empty_epoch_ = 0

private

◆ index_

CInt UThreadPrimary::index_

private

◆ pool_threads_

std::vector<UThreadPrimary *>* UThreadPrimary::pool_threads_

private

◆ primary_queue_

UWorkStealingQueue<UTask> UThreadPrimary::primary_queue_

private

◆ secondary_queue_

UWorkStealingQueue<UTask> UThreadPrimary::secondary_queue_

private

◆ steal_targets_

std::vector<CInt> UThreadPrimary::steal_targets_

private

The documentation for this class was generated from the following file:

src/UtilsCtrl/ThreadPool/Thread/UThreadPrimary.h
