#include <GMultiCondition.h>

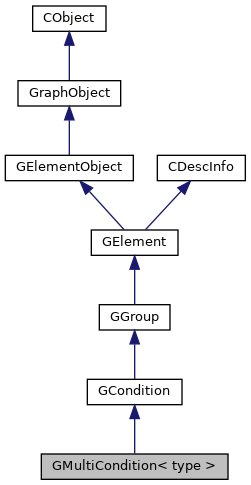

Inheritance diagram for GMultiCondition< type >:

[legend]

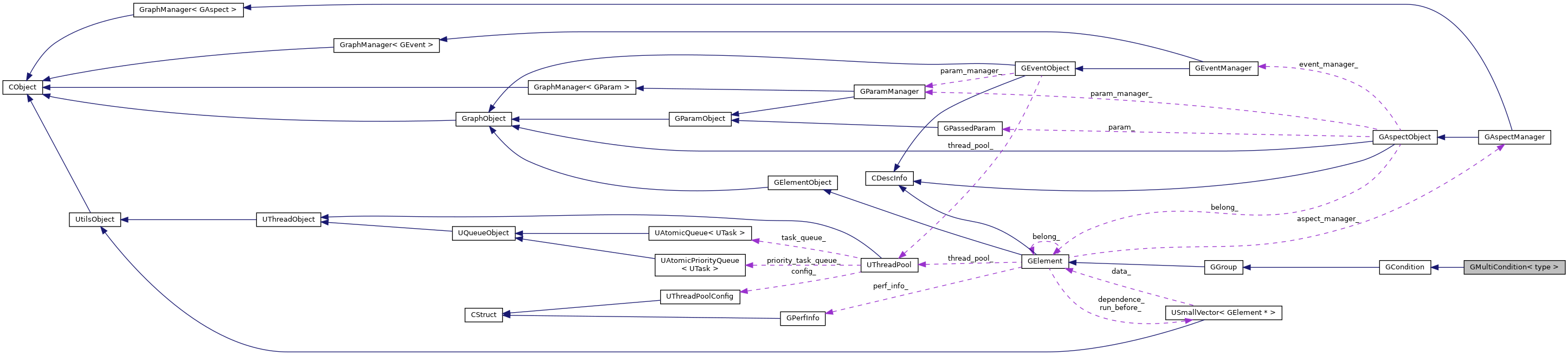

Collaboration diagram for GMultiCondition< type >:

[legend]

Private Member Functions
	GMultiCondition ()

CStatus	run () final

CStatus	serialRun ()

CStatus	parallelRun ()

CIndex	choose () final

CBool	isSerializable () const override

CBool	isSeparate (GElementCPtr a, GElementCPtr b) const final

Friends
class	GPipeline

class	CAllocator

Additional Inherited Members
Public Member Functions inherited from GElement
template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>
GElement *	addGAspect (TParam *param=nullptr)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > = 0>
GElement *	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
GElement *	addEParam (const std::string &key, T *param)

CStatus	addDependGElements (const std::set< GElement * > &elements)

GElement *	setName (const std::string &name) override

GElement *	setLoop (CSize loop)

GElement *	setLevel (CLevel level)

GElement *	setVisible (CBool visible)

GElement *	setBindingIndex (CIndex index)

GElement *	setTimeout (CMSec timeout, GElementTimeoutStrategy strategy=GElementTimeoutStrategy::AS_ERROR)

GElement *	setMacro (CBool macro)

CBool	isGGroup () const

CBool	isGAdaptor () const

CBool	isGNode () const

GElementState	getCurState () const

CStatus	removeDepend (GElement *element)

GElement &	operator-- (int) noexcept

GElement &	operator> (GElement *element)

GElement &	operator& (GElement *element)

GElement &	operator* (CSize loop) noexcept

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN GElementPtr	addGAspect (TParam *param)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > >
GElementPtr	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > >
GElementPtr	addEParam (const std::string &key, T *param)

Public Member Functions inherited from CObject
	CObject ()=default

virtual	~CObject ()=default

Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const

const std::string &	getSession () const

const std::string &	getDescription () const

virtual auto	setDescription (const std::string &description) -> decltype(this)

virtual	~CDescInfo ()=default

Protected Member Functions inherited from GCondition
	GCondition ()

CSize	getRange () const

Protected Member Functions inherited from GGroup
virtual CStatus	addElement (GElementPtr element)

CBool	isSerializable () const override

Protected Member Functions inherited from GElement
	GElement ()=default

	~GElement () override

virtual CStatus	prepareRun ()

virtual CStatus	checkRunResult ()

virtual CBool	isHold ()

virtual CBool	isMatch ()

CStatus	crashed (const CException &ex)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
T *	getEParam (const std::string &key)

CIndex	getThreadIndex ()

CBool	isTimeout () const

CIndex	getBindingIndex () const

GElementRelation	getRelation () const

	CGRAPH_NO_ALLOWED_COPY (GElement)

Protected Attributes inherited from CDescInfo
std::string	name_

std::string	session_

std::string	description_

Constructor & Destructor Documentation

◆ GMultiCondition()

template<GMultiConditionType type>

CGRAPH_NAMESPACE_BEGIN GMultiCondition< type >::GMultiCondition

explicitprivate

Here is the call graph for this function:

Member Function Documentation

◆ choose()

template<GMultiConditionType type>

CIndex GMultiCondition< type >::choose ( )

finalprivatevirtual

计算需要返回第n个信息执行最后一个，返回-1即可。超出-1和size之间的范围，则不执行

Returns

Implements GCondition.

◆ isSeparate()

template<GMultiConditionType type>

CBool GMultiCondition< type >::isSeparate	(	GElementCPtr	a,
		GElementCPtr	b
	)		const

finalprivatevirtual

判断两个element，是否相互独立

Parameters

a
b

Returns: @notice 如果返回 true，则表示一定有前后依赖关系，不可能并发执行。否则表示不确定，原因是并发情况无法完全确定

Reimplemented from GCondition.

◆ isSerializable()

template<GMultiConditionType type>

CBool GMultiCondition< type >::isSerializable

overrideprivatevirtual

判断当前元素，是否可以线性执行。默认返回true

Returns

如果是PARALLEL模式的话，并且其中的元素个数大于1，则一定不可以串行执行 PARALLEL模式中，仅有一个元素的情况，和 SERIAL模式的判断方式一样，均为判断其中所有的element是否可以并行故放在下面的条件中判断了

Reimplemented from GElement.

Here is the call graph for this function:

◆ parallelRun()

template<GMultiConditionType type>

CStatus GMultiCondition< type >::parallelRun

private

并行执行

Returns

如果有异常值的化，也等待所有内容计算完成后，统一返回暂时没有处理超时的情况。预计今后会统一处理

◆ run()

template<GMultiConditionType type>

CStatus GMultiCondition< type >::run ( )

finalprivatevirtual

流程处理函数

Reimplemented from GCondition.

◆ serialRun()

template<GMultiConditionType type>

CStatus GMultiCondition< type >::serialRun

private

串行执行

Returns

Friends And Related Function Documentation

◆ CAllocator

template<GMultiConditionType type>

friend class CAllocator

friend

◆ GPipeline

template<GMultiConditionType type>

friend class GPipeline

friend

The documentation for this class was generated from the following files:

src/GraphCtrl/GraphElement/GGroup/GCondition/GMultiCondition.h
src/GraphCtrl/GraphElement/GGroup/GCondition/GMultiCondition.inl
