所有节点组合的基类，所有节点组合功能，均继承自此类 More...

#include <GGroup.h>

Inheritance diagram for GGroup:

[legend]

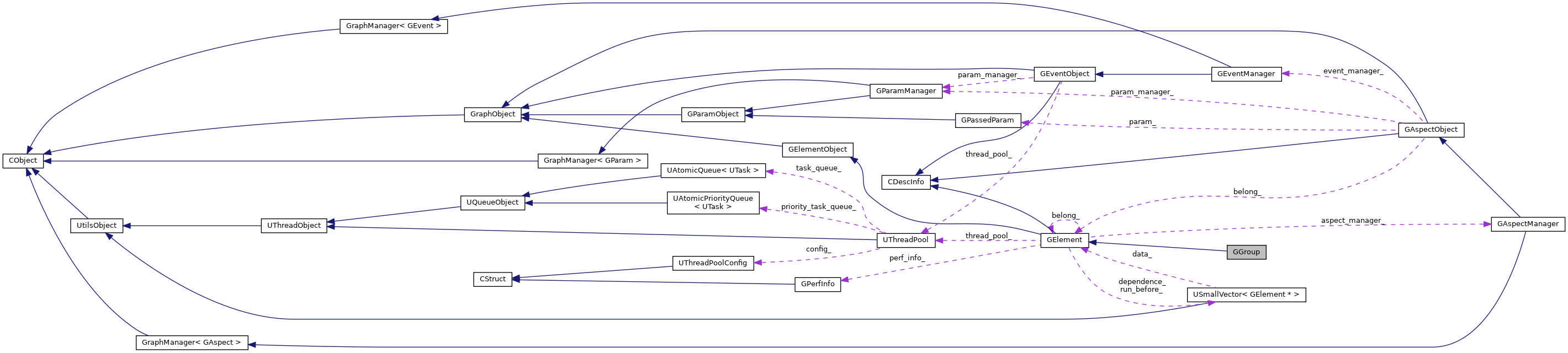

Collaboration diagram for GGroup:

[legend]

Protected Member Functions
virtual CStatus	addElement (GElementPtr element)

CBool	isSerializable () const override

Protected Member Functions inherited from GElement
	GElement ()=default

	~GElement () override

virtual CStatus	prepareRun ()

virtual CStatus	checkRunResult ()

virtual CBool	isHold ()

virtual CBool	isMatch ()

CStatus	crashed (const CException &ex)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
T *	getEParam (const std::string &key)

CIndex	getThreadIndex ()

CBool	isTimeout () const

CIndex	getBindingIndex () const

GElementRelation	getRelation () const

	CGRAPH_NO_ALLOWED_COPY (GElement)

Private Member Functions
	GGroup ()

CStatus	addManagers (GParamManagerPtr paramManager, GEventManagerPtr eventManager, GStageManagerPtr stageManager) override

CStatus	init () override

CStatus	destroy () override

CVoid	dumpGroupLabelBegin (std::ostream &oss)

CVoid	dumpGroupLabelEnd (std::ostream &oss)

virtual CBool	isSeparate (GElementCPtr a, GElementCPtr b) const

Private Attributes
GElementPtrArr	group_elements_arr_

Friends
class	GPipeline

class	GCluster

class	GRegion

class	GCondition

class	GMutable

template<GMultiConditionType >
class	GMultiCondition

template<CInt >
class	GSome

Additional Inherited Members
Public Member Functions inherited from GElement
template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>
GElement *	addGAspect (TParam *param=nullptr)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > = 0>
GElement *	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
GElement *	addEParam (const std::string &key, T *param)

CStatus	addDependGElements (const std::set< GElement * > &elements)

GElement *	setName (const std::string &name) override

GElement *	setLoop (CSize loop)

GElement *	setLevel (CLevel level)

GElement *	setVisible (CBool visible)

GElement *	setBindingIndex (CIndex index)

GElement *	setTimeout (CMSec timeout, GElementTimeoutStrategy strategy=GElementTimeoutStrategy::AS_ERROR)

GElement *	setMacro (CBool macro)

CBool	isGGroup () const

CBool	isGAdaptor () const

CBool	isGNode () const

GElementState	getCurState () const

CStatus	removeDepend (GElement *element)

GElement &	operator-- (int) noexcept

GElement &	operator> (GElement *element)

GElement &	operator& (GElement *element)

GElement &	operator* (CSize loop) noexcept

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN GElementPtr	addGAspect (TParam *param)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > >
GElementPtr	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > >
GElementPtr	addEParam (const std::string &key, T *param)

Public Member Functions inherited from CObject
	CObject ()=default

virtual CStatus	run ()=0

virtual	~CObject ()=default

Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const

const std::string &	getSession () const

const std::string &	getDescription () const

virtual auto	setDescription (const std::string &description) -> decltype(this)

virtual	~CDescInfo ()=default

Protected Attributes inherited from CDescInfo
std::string	name_

std::string	session_

std::string	description_

Detailed Description

所有节点组合的基类，所有节点组合功能，均继承自此类

Constructor & Destructor Documentation

◆ GGroup()

CGRAPH_NAMESPACE_BEGIN GGroup::GGroup ( )

explicitprivate

Member Function Documentation

◆ addElement()

CStatus GGroup::addElement ( GElementPtr element )

protectedvirtual

向group中，添加element信息

Parameters

element

Returns

Reimplemented in GSome< TriggerNum >, and GRegion.

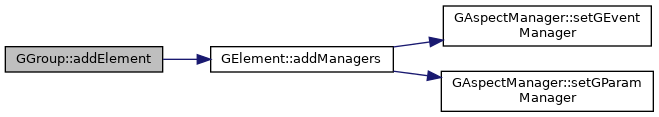

Here is the call graph for this function:

◆ addManagers()

CStatus GGroup::addManagers	(	GParamManagerPtr	paramManager,
		GEventManagerPtr	eventManager,
		GStageManagerPtr	stageManager
	)

overrideprivatevirtual

设置manager信息

Parameters

paramManager
eventManager
stageManager

Returns

Reimplemented from GElement.

Reimplemented in GRegion.

◆ destroy()

CStatus GGroup::destroy ( )

overrideprivatevirtual

释放函数

Reimplemented from CObject.

Reimplemented in GRegion, and GMutable.

◆ dumpGroupLabelBegin()

CVoid GGroup::dumpGroupLabelBegin ( std::ostream & oss )

private

生成graphviz中 group对应的label 的开头信息

Parameters

oss

Returns

Here is the call graph for this function:

◆ dumpGroupLabelEnd()

CVoid GGroup::dumpGroupLabelEnd ( std::ostream & oss )

private

生成graphviz中的 group对应的label 的结尾信息

Parameters

oss

Returns

◆ init()

CStatus GGroup::init ( )

overrideprivatevirtual

初始化函数

Reimplemented from CObject.

Reimplemented in GRegion, and GMutable.

◆ isSeparate()

CBool GGroup::isSeparate	(	GElementCPtr	a,
		GElementCPtr	b
	)		const

privatevirtual

判断两个element，是否相互独立

Parameters

a
b

Returns: @notice 如果返回 true，则表示一定有前后依赖关系，不可能并发执行。否则表示不确定，原因是并发情况无法完全确定

Reimplemented in GCondition, GRegion, GMultiCondition< type >, and GCluster.

◆ isSerializable()

CBool GGroup::isSerializable ( ) const

overrideprotectedvirtual

判断当前元素，是否可以线性执行。默认返回true

Returns

针对group的情况，应该是所有在其中的element 都是可以串行的，才认定为可串行但是在 region和 multiCondition中，有针对性的判断

Reimplemented from GElement.

Reimplemented in GMutable, GSome< TriggerNum >, and GRegion.

Friends And Related Function Documentation

◆ GCluster

friend class GCluster

friend

◆ GCondition

friend class GCondition

friend

◆ GMultiCondition

template<GMultiConditionType >

friend class GMultiCondition

friend

◆ GMutable

friend class GMutable

friend

◆ GPipeline

friend class GPipeline

friend

◆ GRegion

friend class GRegion

friend

◆ GSome

template<CInt >

friend class GSome

friend

Member Data Documentation

◆ group_elements_arr_

GElementPtrArr GGroup::group_elements_arr_

private

The documentation for this class was generated from the following files:

src/GraphCtrl/GraphElement/GGroup/GGroup.h
src/GraphCtrl/GraphElement/GGroup/GGroup.cpp
