对于插入的所有GElement，不管实际能不能并行，GSome都会把这些GElement提交到异步任务里面全并发执行(详见run) TriggerNum个GElement执行完成后就退出不再执行剩余的，剩余的置为TIMEOUT(在GElement的fatProcessor里面会不执行直接结束) More...

#include <GSome.h>

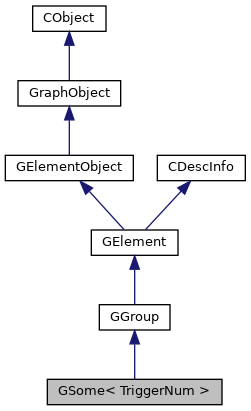

Inheritance diagram for GSome< TriggerNum >:

[legend]

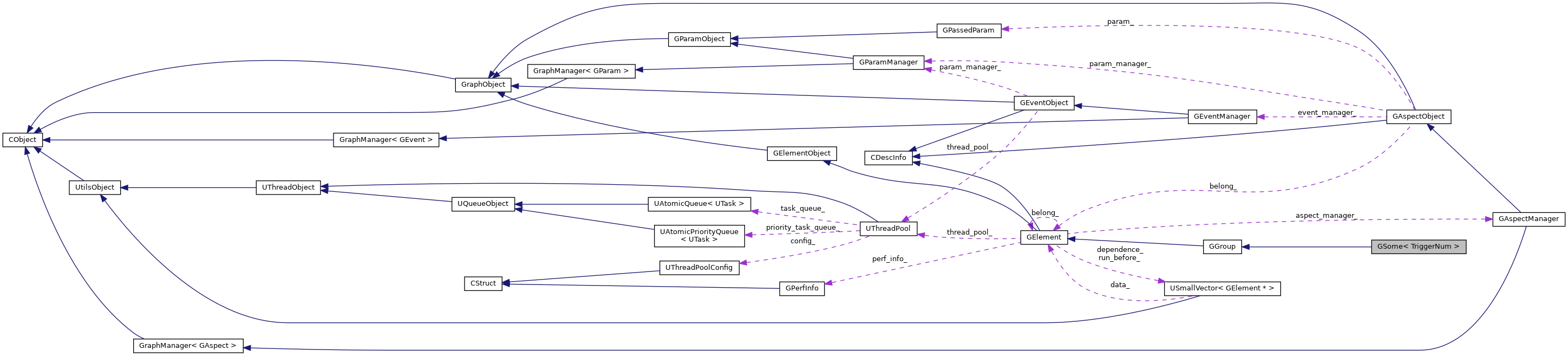

Collaboration diagram for GSome< TriggerNum >:

[legend]

Protected Member Functions
	GSome ()

CStatus	addElement (GElementPtr element) final

CStatus	run () final

CBool	isSerializable () const final

CVoid	dump (std::ostream &oss) final

CBool	isHold () final

CStatus	checkSuitable () final

Protected Member Functions inherited from GElement
	GElement ()=default

	~GElement () override

virtual CStatus	prepareRun ()

virtual CStatus	checkRunResult ()

virtual CBool	isMatch ()

CStatus	crashed (const CException &ex)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
T *	getEParam (const std::string &key)

CIndex	getThreadIndex ()

CBool	isTimeout () const

CIndex	getBindingIndex () const

GElementRelation	getRelation () const

	CGRAPH_NO_ALLOWED_COPY (GElement)

Private Attributes
CInt	left_num_ = 0

CStatus	cur_status_

std::mutex	lock_

std::condition_variable	cv_

Friends
class	GPipeline

class	GDynamicEngine

class	CAllocator

Additional Inherited Members
Public Member Functions inherited from GElement
template<typename TAspect , typename TParam = GAspectDefaultParam, c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > = 0, c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > = 0>
GElement *	addGAspect (TParam *param=nullptr)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > = 0>
GElement *	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > = 0>
GElement *	addEParam (const std::string &key, T *param)

CStatus	addDependGElements (const std::set< GElement * > &elements)

GElement *	setName (const std::string &name) override

GElement *	setLoop (CSize loop)

GElement *	setLevel (CLevel level)

GElement *	setVisible (CBool visible)

GElement *	setBindingIndex (CIndex index)

GElement *	setTimeout (CMSec timeout, GElementTimeoutStrategy strategy=GElementTimeoutStrategy::AS_ERROR)

GElement *	setMacro (CBool macro)

CBool	isGGroup () const

CBool	isGAdaptor () const

CBool	isGNode () const

GElementState	getCurState () const

CStatus	removeDepend (GElement *element)

GElement &	operator-- (int) noexcept

GElement &	operator> (GElement *element)

GElement &	operator& (GElement *element)

GElement &	operator* (CSize loop) noexcept

template<typename TAspect , typename TParam , c_enable_if_t< std::is_base_of< GAspect, TAspect >::value, int > , c_enable_if_t< std::is_base_of< GAspectParam, TParam >::value, int > >
CGRAPH_NAMESPACE_BEGIN GElementPtr	addGAspect (TParam *param)

template<typename TAspect , typename ... Args, c_enable_if_t< std::is_base_of< GTemplateAspect< Args... >, TAspect >::value, int > >
GElementPtr	addGAspect (Args... args)

template<typename T , c_enable_if_t< std::is_base_of< GElementParam, T >::value, int > >
GElementPtr	addEParam (const std::string &key, T *param)

Public Member Functions inherited from CObject
	CObject ()=default

virtual	~CObject ()=default

Public Member Functions inherited from CDescInfo
virtual const std::string &	getName () const

const std::string &	getSession () const

const std::string &	getDescription () const

virtual auto	setDescription (const std::string &description) -> decltype(this)

virtual	~CDescInfo ()=default

Protected Attributes inherited from CDescInfo
std::string	name_

std::string	session_

std::string	description_

Detailed Description

template<CInt TriggerNum = 1>
class GSome< TriggerNum >

对于插入的所有GElement，不管实际能不能并行，GSome都会把这些GElement提交到异步任务里面全并发执行(详见run) TriggerNum个GElement执行完成后就退出不再执行剩余的，剩余的置为TIMEOUT(在GElement的fatProcessor里面会不执行直接结束)

Template Parameters

TriggerNum

Constructor & Destructor Documentation

◆ GSome()

template<CInt TriggerNum>

CGRAPH_NAMESPACE_BEGIN GSome< TriggerNum >::GSome

explicitprotected

Here is the call graph for this function:

Member Function Documentation

◆ addElement()

template<CInt TriggerNum>

CStatus GSome< TriggerNum >::addElement ( GElementPtr element )

finalprotectedvirtual

向group中，添加element信息

Parameters

element

Returns

GSome中插入的元素，必须要有 timeout的设定，如果没有的话，强行写到max值。用于确保在pipeline run执行完成之前，所有的 element 都会被回收

Reimplemented from GGroup.

Here is the call graph for this function:

◆ checkSuitable()

template<CInt TriggerNum>

CStatus GSome< TriggerNum >::checkSuitable

finalprotectedvirtual

判断当前节点，是否符合执行逻辑。主要用于init的早期阶段

Returns

Reimplemented from GElement.

Here is the call graph for this function:

◆ dump()

template<CInt TriggerNum>

CVoid GSome< TriggerNum >::dump ( std::ostream & oss )

finalprotectedvirtual

graphviz dump 逻辑

Parameters

oss

Returns

Reimplemented from GElement.

◆ isHold()

template<CInt TriggerNum>

CBool GSome< TriggerNum >::isHold

finalprotectedvirtual

是否持续进行默认为false，表示执行且仅执行一次

Returns

默认仅返回false 可以根据自己逻辑，来实现"持续循环执行，直到特定条件出现的时候停止"的逻辑

Reimplemented from GElement.

◆ isSerializable()

template<CInt TriggerNum>

CBool GSome< TriggerNum >::isSerializable

finalprotectedvirtual

判断当前元素，是否可以线性执行。默认返回true

Returns

针对group的情况，应该是所有在其中的element 都是可以串行的，才认定为可串行但是在 region和 multiCondition中，有针对性的判断

Reimplemented from GGroup.

◆ run()

template<CInt TriggerNum>

CStatus GSome< TriggerNum >::run ( )

finalprotectedvirtual

流程处理函数

并发的执行，其中的所有逻辑信息
等待 Trigger Num 个element执行完成
将所有未执行完的element 设置为timeout
赋返回值

Implements CObject.

Friends And Related Function Documentation

◆ CAllocator

template<CInt TriggerNum = 1>

friend class CAllocator

friend

◆ GDynamicEngine

template<CInt TriggerNum = 1>

friend class GDynamicEngine

friend

◆ GPipeline

template<CInt TriggerNum = 1>

friend class GPipeline

friend

Member Data Documentation

◆ cur_status_

template<CInt TriggerNum = 1>

CStatus GSome< TriggerNum >::cur_status_

private

◆ cv_

template<CInt TriggerNum = 1>

std::condition_variable GSome< TriggerNum >::cv_

private

◆ left_num_

template<CInt TriggerNum = 1>

CInt GSome< TriggerNum >::left_num_ = 0

private

◆ lock_

template<CInt TriggerNum = 1>

std::mutex GSome< TriggerNum >::lock_

private

The documentation for this class was generated from the following files:

src/GraphCtrl/GraphElement/GGroup/GSome/GSome.h
src/GraphCtrl/GraphElement/GGroup/GSome/GSome.inl
